Summit Solo Pro - Ladder Column and Stabilizer Bar Assembly

29
BOTTOM LADDER SECTION
(PN 82065.930)
WELDED
U BRACKET
FACES TREE
MIDDLE LADDER SECTION
(PN 82065.920)
COMPLETED
PLATFORM / SEAT
ASSEMBLY
PG 7
LADDER COLUMN

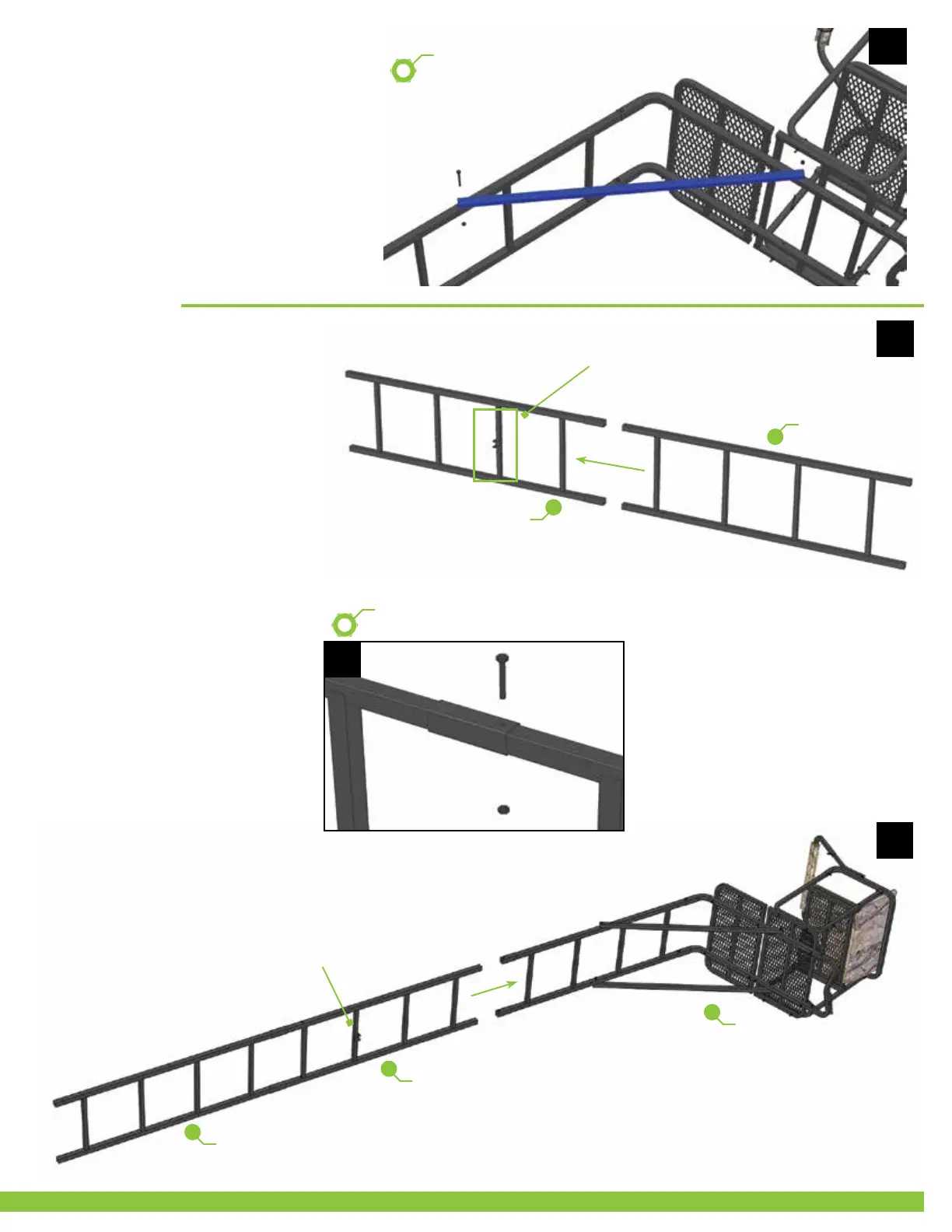

1. Position the Bottom Ladder Section
and Middle Ladder Section as shown in
figure 27. The welded U bracket faces
the tree when fully assembled.
The Bottom Ladder Section has no
welded couplers.
2. Slide the Ladder Sections together,
line up the bolt holes and use one 1 3/4”
bolt and lock nut to secure each side
(see figure 28).
3. Slide the completed Bottom
and Middle ladder sections into the
completed Platform / Seat assembly to
finish assembly as shown in figure 29.
4. Secure using two 1 3/4” bolts and
lock nuts. (See figure 30)
1 3/4” BOLTS, LOCK NUTS -
WRENCH TIGHTEN
28
BOTTOM
LADDER
SECTION
(PN 82065.930)
MIDDLE
LADDER
SECTION
(PN 82065.920)
27
WELDED
U BRACKET
26
2 3/4” BOLT, LOCK NUT -
WRENCH TIGHTEN
