GUNREST
PAD
(PN 82065.855)
23
RUBBER
BUMPERS
20
22
1 3/4” BOLT, LOCK NUT -
WRENCH TIGHTEN
21
BUSHINGS
GUNREST (continued)

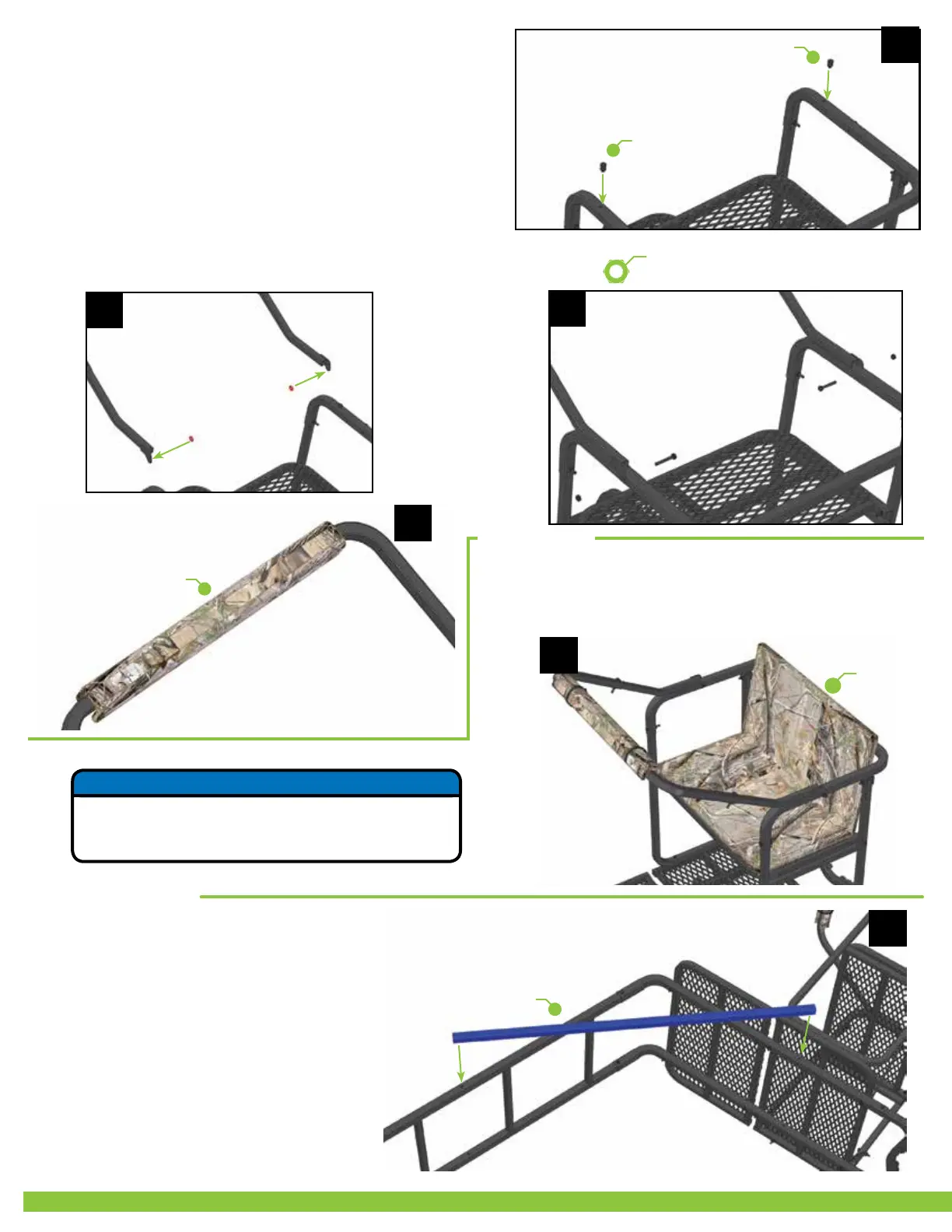

3. Insert two of the Rubber Bumpers into the pre-drilled holes
on each Armrest (see figure 20). Insert by pushing while
twisting slightly.
4. Each Gunrest Arm has a tab with a pre-drilled hole. Line
up these holes with the holes in the Armrests. Insert one 1/4”
Bushings between each Gunrest tab and each Armrest hole
(figure 21).
5. Use two 1 3/4” bolts with lock nuts to secure the bar to the
armrest (see figure 22.) Do not overtighten.
6. Position the Gunrest Pad as shown in figure 23. Secure by
wrapping the pad around the bar and using the hook and loop
strip to secure.
PLATFORM SUPPORT
1. Position one of the Ladder Support bars as
shown in figure 25.
2. Line up the holes and secure the Support bar to
the Ladder Column and the Platform Support (see
figure 26). Secure using two 2 3/4” bolts and lock
nuts.
3. Repeat for the other Platform Support Bar.
LADDER
SUPPORT BAR
(PN 82065.020)
25
24
FOAM SEAT
(PN 82065.850)
FOAM SEAT
1. Position the Foam Seat inside the frame as shown in figure
24. The thicker portion of the seat is the base.
2. Wrap the hook and loop straps on the bottom and back of
the seat around the frame to secure.
NOTICE
The foam seat included with this treestand is
removable for storage. DO NOT leave your stand
outdoors when it is not being used.
