Saddle Installation
Lubricate seat tube with heavy grease, place #18 Seat Post into seat tube of trike and tighten. Place #17 Saddle, in a level position, onto seat post and
tighten seat post clamp.

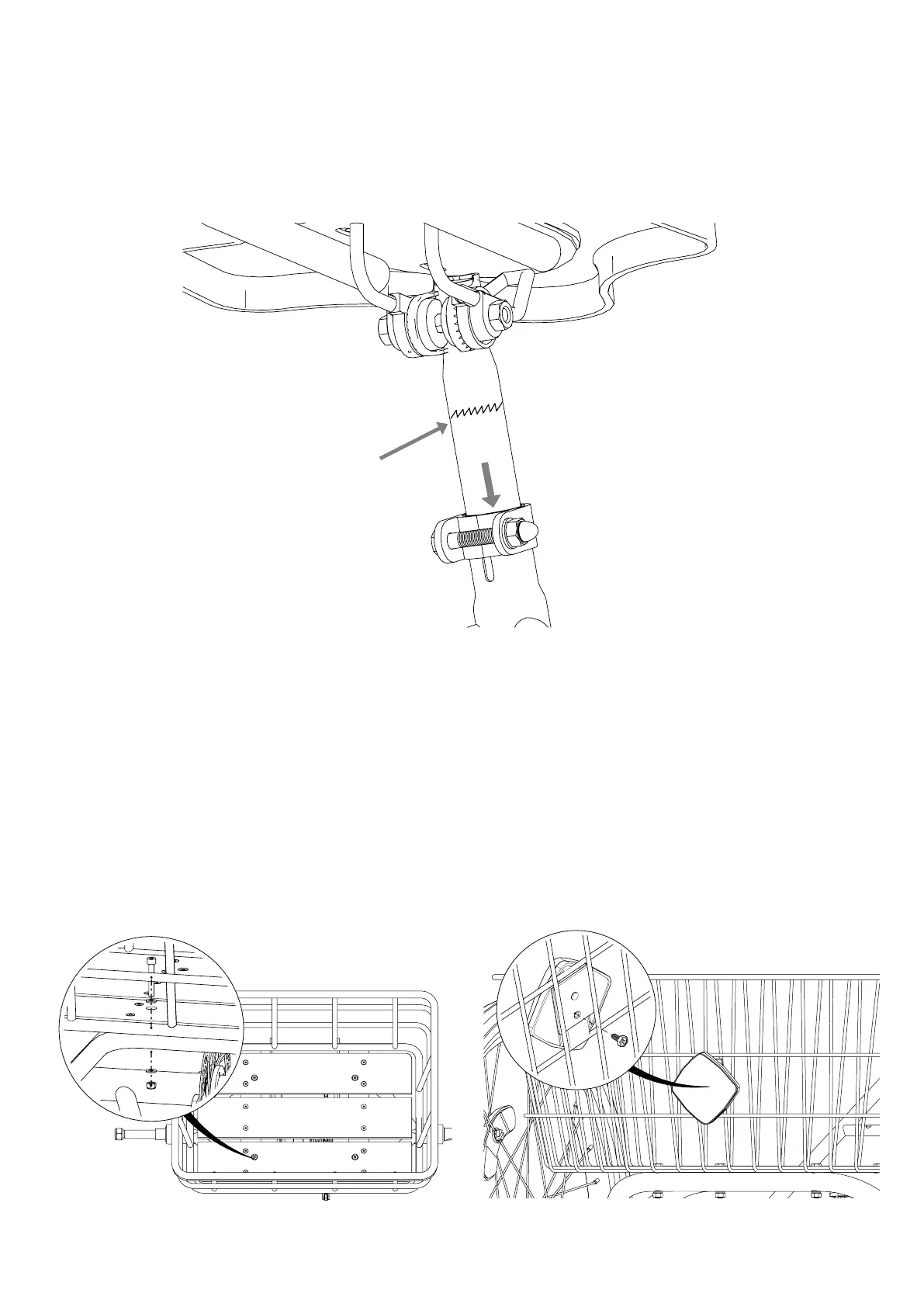

Adjust saddle height, tighten seat post, saddle clamp and seat brace hardware securely. See Figure I
WARNING! THE SEAT POST MINIMUM INSERT MARK MUST BE BELOW THE SEAT TUBE.
Fig I
Trike Basket Installation
Install #19 Basket onto the #2 Rear unit , Rear unit and basket of hole aligned , Screws up with the bolts. See figure J.
Reflector Kit Installation
Install Rear red reflector in back of Basket. See figure K.
