Pedal Installation
Apply grease to the threads of the #20 Pedals. This will protect both the threads of the pedal and the crank arm over time. Use pedal washers where
required.

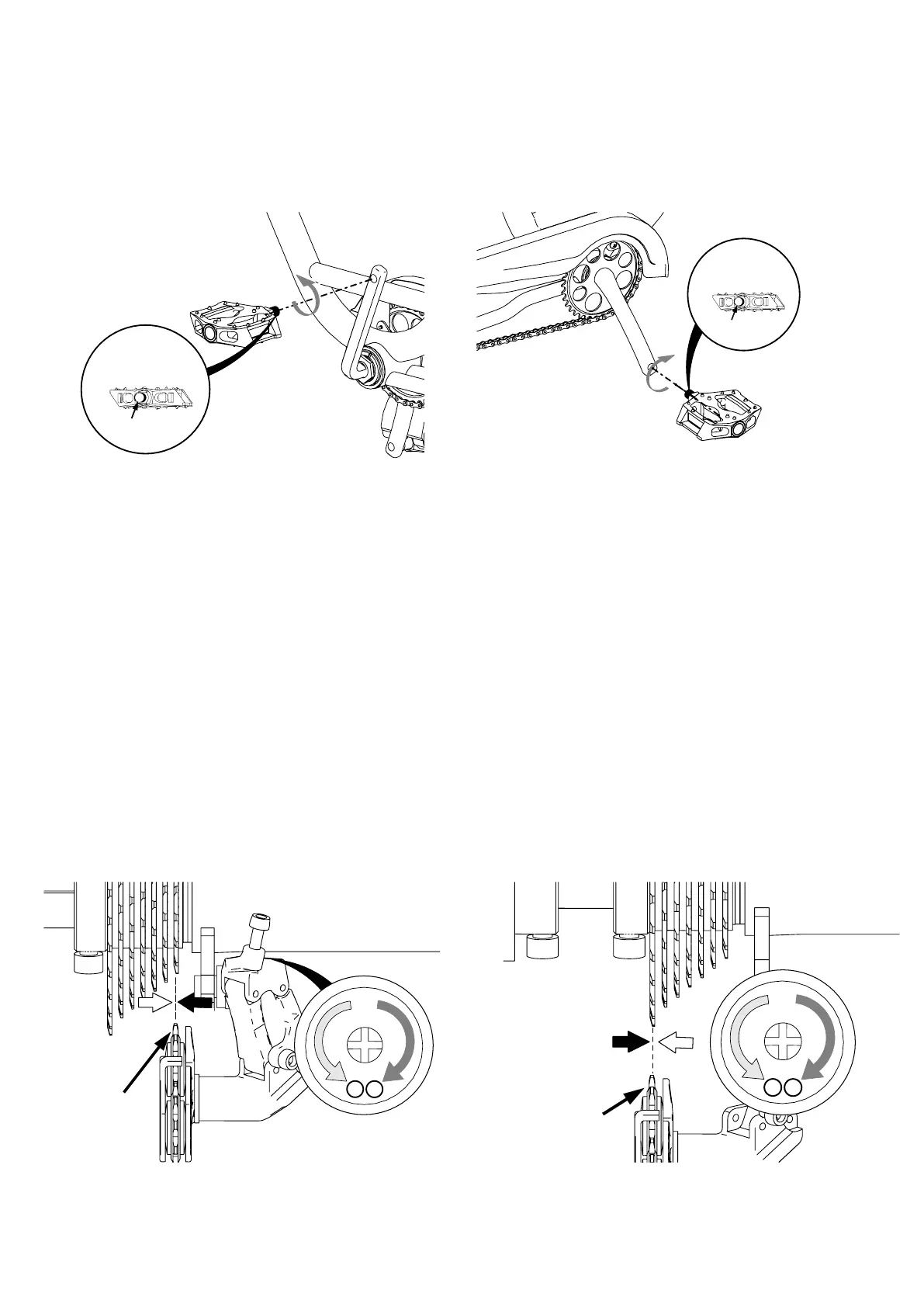

Using your hands, thread the #20 Pedals (marked for L or R) into the respective left or right crank arms by turning them toward the front of the bike.
Once the threads catch, use your pedal wrench to finish tightening down the pedals. See Figure L M
Fig L Fig M
Variable speed adjustment
Shift to the minimum freewheel, adjustment the high screw(H),let the guide pulley align the minimum piece freewheel center. See Figure N
Shift to the maximum freewheel, adjustment the low screw(L),let the guide pulley align the maximum piece freewheel center. See Figure O
Fig N Fig O
(IT IS ADVISABLE THAT ALL NUTS & BOLTS ARE ONCE AGAIN CHECKED FOR TIGHTNESS & SECURITY)
