Final Tightening of Rear Unit
Tighten #2 Rear Unit Hardware to 18-20 Nm (160-175 in. lbs.)
Rear Wheel Installation
Assemble #12 Rear Wheel Assembly, # 10 Rear Wheel Washer and #9 Rear Wheel Nylock Retaining Nut onto right side (drive side) rear axle.
See Figure C
Assemble #11 Rear Wheel Spacer, #12 Rear Wheel Assembly, #10 Rear Wheel Washer and #9 Rear Wheel Nylock Retaining Nut onto left side
(non-drive side) rear axle. See Figure D
WARNING! OVER-TIGHTENING WILL DAMAGE THE BEARING
NOTE: DO NOT OVER TIGHTEN the #XX Rear Wheel Nylock Retaining Nut on the LEFT side (non-drive side). The nut should be tightened
then backed off ½ turn to leave approximately 1 to 2mm of side play.

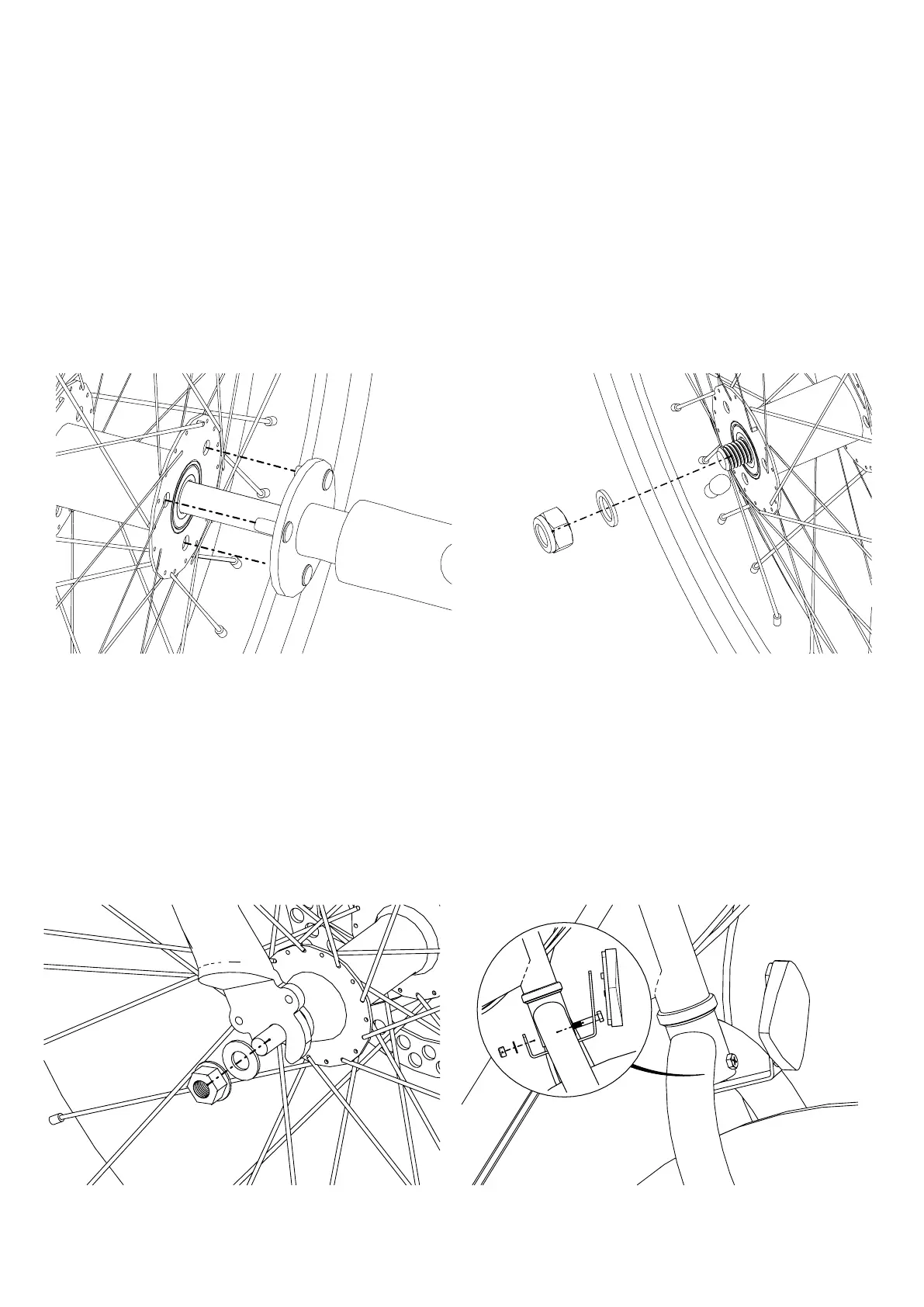

Fig C Fig D
Front Wheel Installation
Install #13 Front wheel ,#27 Front fork and Screws up with bolts. See figure E
Install #21 Front white reflector under the Front fork. See figure F
Fig E Fig F
WARNIG :
Over Tightening of
Nuts Will Damage
Rear Unit Bearings !
7
