Sun Bicycles Baja - Sun Trike Assembly Guide

Sun Trike Assembly Reference
19
7
25
24
18
17
8
20
21
4
1
12
15
21
14
27
13
16
23
22
19
7
25
24
18
17
8
20
21
4
1
12
15
21
14
27
13
16
23
22
26
3
5
4
9
10
11
6
2
26
3
5
4
9
10
11
6
2

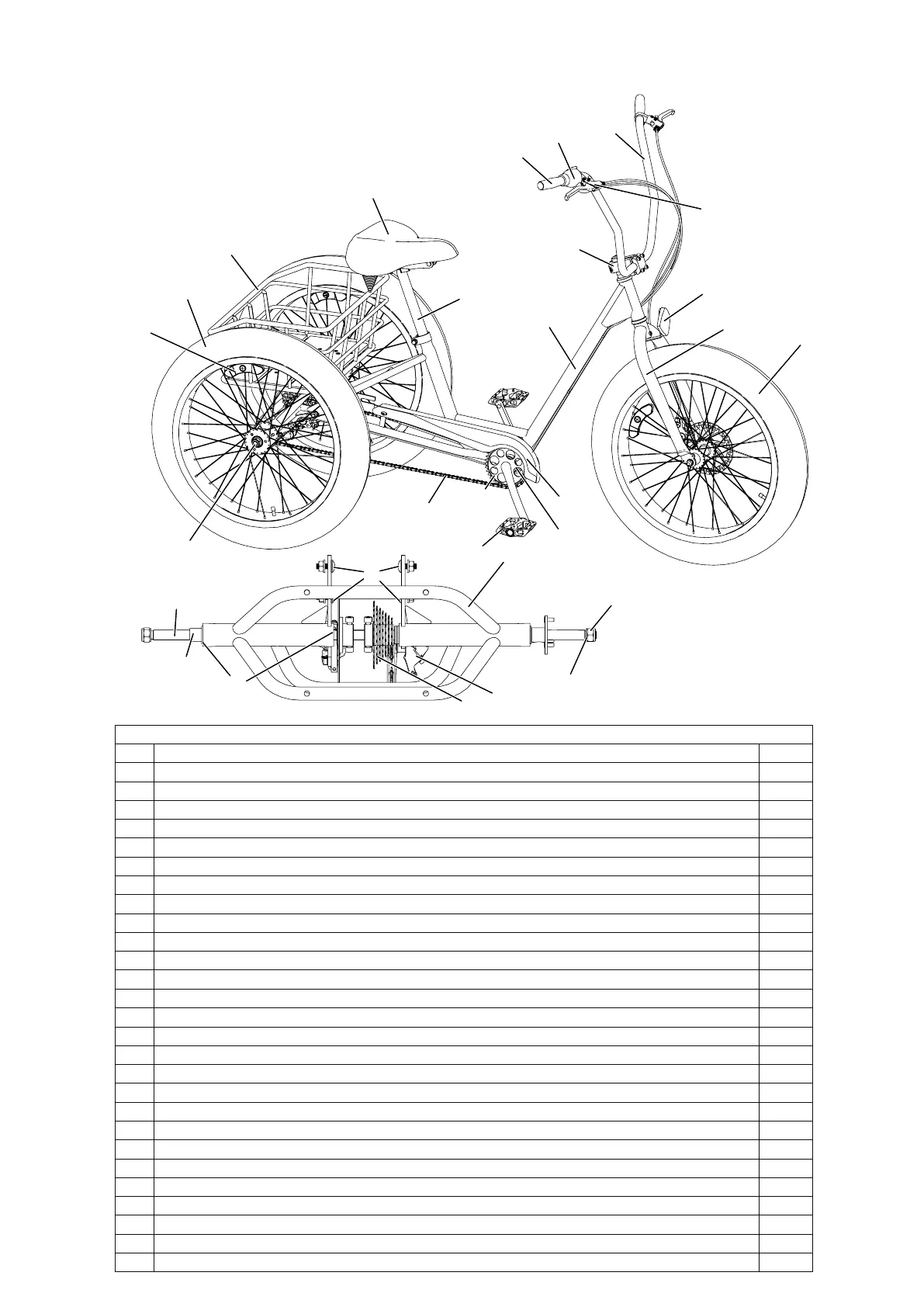

Sun Trike PARTS LIST
ITEM DESCRIPTION QTY
1 Main Frame Assembly 1
2 Rear Unit Assembly 1
3 Rear Unit Hardware Set (2x long carriage bolts, 2x short carriage bolts, nuts & washers) 1 set
4 Rear Unit Axle Assembly (17mm OD with 4mm keyway) 1
5 Rear Unit Bearings (35mm OD x 17mm ID for 17mm axle) 4
6 Freewheel (7S 13-34T) 1
7 Drive Chain (1/2” x 1/8”) 1
8 Chain guard 1
9 Rear Wheel Nyloc Retaining Nut (M14) 2
10 Rear Wheel Washer (M15x2mm) 2
11 Rear Wheel Spacer (Alloy 23mm) 1
12 Rear Wheel (Including tire, tube, and rim strip) 2
13 Front Wheel (Including tire, tube, and rim strip) 1
14 Stem 1
15 Handlebar 1
16 Front Brake Assembly with Locking Lever 1
17 Saddle 1
18 Seat Post 1
19 Trike Basket (with hardware) 1
20 Pedals (1/2”) 1 pair
21 Reflector Kit 1 set
22 Grips 1 set
23 Shift Lever 1
24 Bottom Bracket (B.B) 1
25 Chainring 1
26 Rear Derailleur 1
27 Fork 1
5
