24 Sun StorEdge 3000 Family Best Practices Manual • June 2004

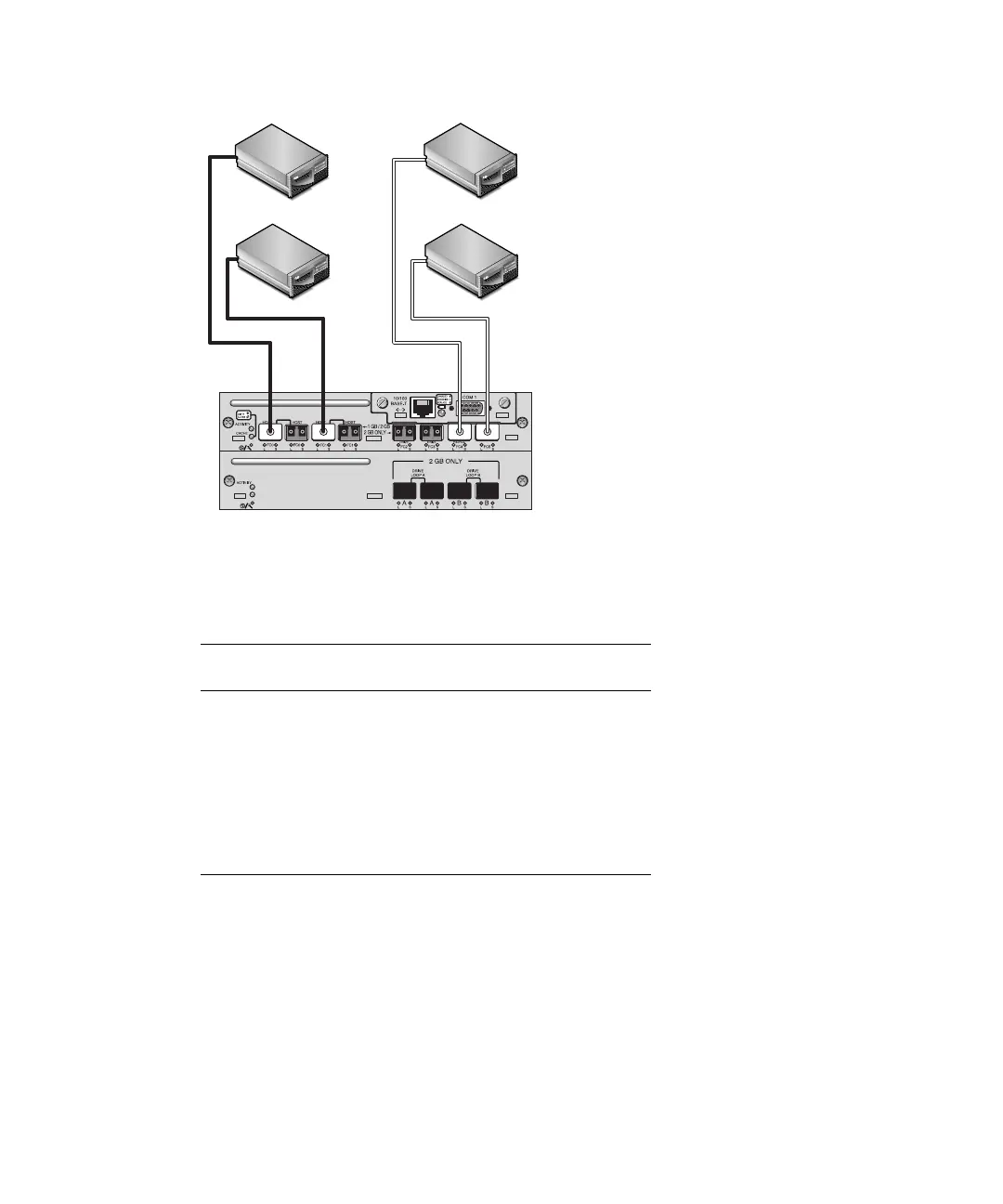

FIGURE 6 Sun StorEdge 3511 SATA Array Non-Redundant DAS Connections
The general procedure for creating this configuration follows.
1. Check the position of installed SFP modules. Move or add SFP modules as
necessary to support the connections needed.
2. Connect expansion units if needed.
■ Sun StorEdge 3510 FC Array. See “Sun StorEdge 3510 FC Array High Capacity
Configurations” on page 44.
■ Sun StorEdge 3511 SATA Array. See “Sun StorEdge 3511 SATA Array High
Capacity Configurations” on page 53
TABLE 8 Setup Summary for Non-Redundant DAS
Channel Number Primary ID Number
Secondary ID
Number
0 40 N/A
1 43 N/A
2 14 N/A
3 14 N/A
4 44 N/A
5 47 N/A
H/D/RCC
Server 3
Server 2
Server 1
Server 4
