Best Practices for the Sun StorEdge 3510 and 3511 FC Arrays 29

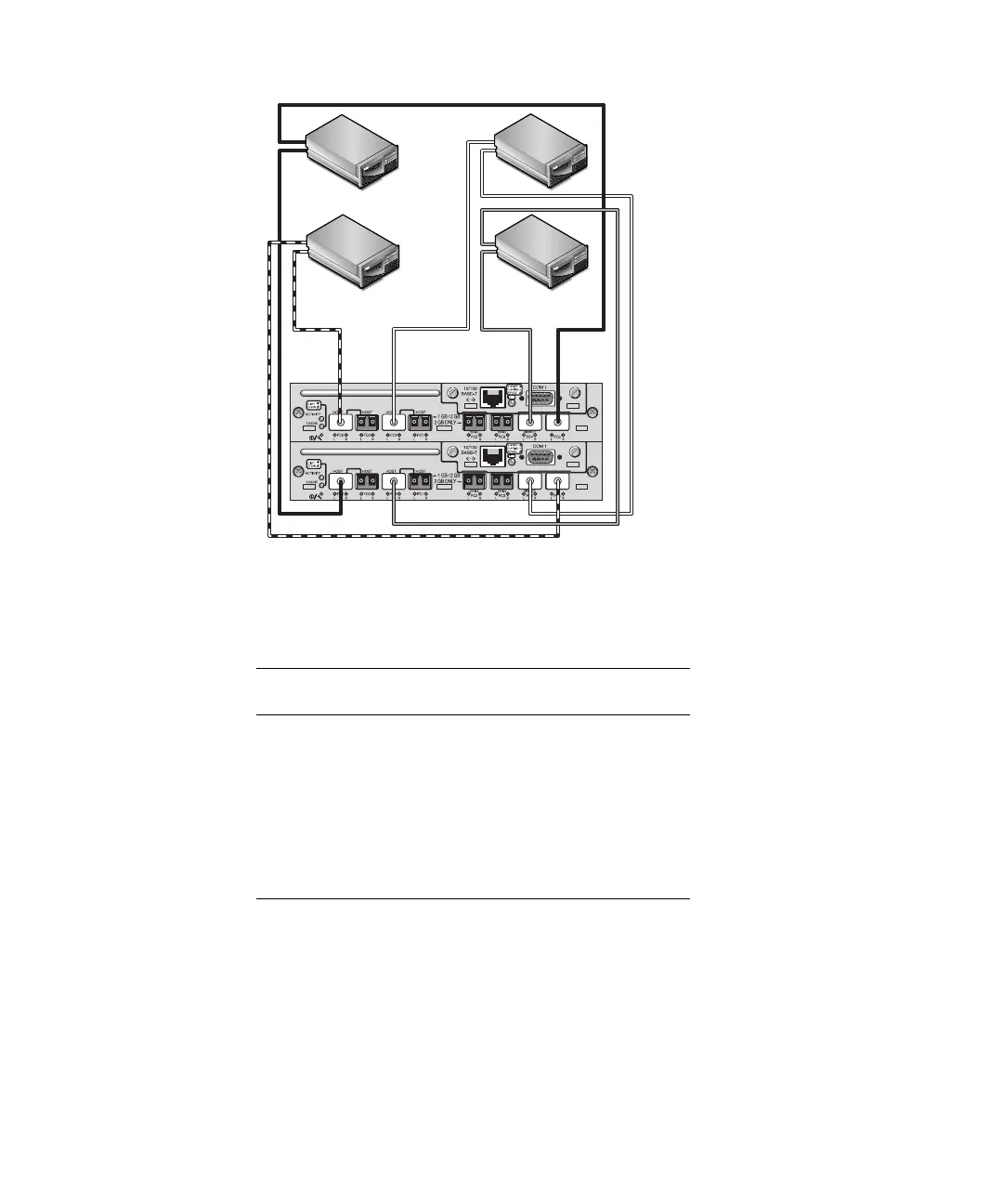

FIGURE 9 Sun StorEdge 3511 SATA Array High-Availability DAS Connections
The general procedure for creating this configuration follows.
1. Check the position of installed SFP modules. Move them as necessary to support
the connections needed.
2. Connect expansion units if needed.
■ Sun StorEdge 3510 FC Array. See “Sun StorEdge 3510 FC Array High Capacity
Configurations” on page 44.
TABLE 10 Setup Summary for High-Availability DAS
Channel Number Primary ID Number
Secondary ID
Number
0 40 N/A
1 N/A 42
21415
31415
4 44 N/A
5 N/A 46
H/D/RCC
H/D/RCC
Server 1
Server 4
Server 3
Server 2
To Next Page
