40 Sun StorEdge 3000 Family Best Practices Manual • June 2004
redundant controller, cannot be used. Similarly, if channel 1 (port FC1) is
connected to a fabric switch, the second port for channel 1 on that controller and
both FC1 ports on a redundant controller, cannot be used.
High-Performance SAN Setup Details
FIGURE 15 and FIGURE 16 shows a Sun StorEdge 3510 FC array and a Sun StorEdge
3511 SATA array in a high-performance SAN configuration.

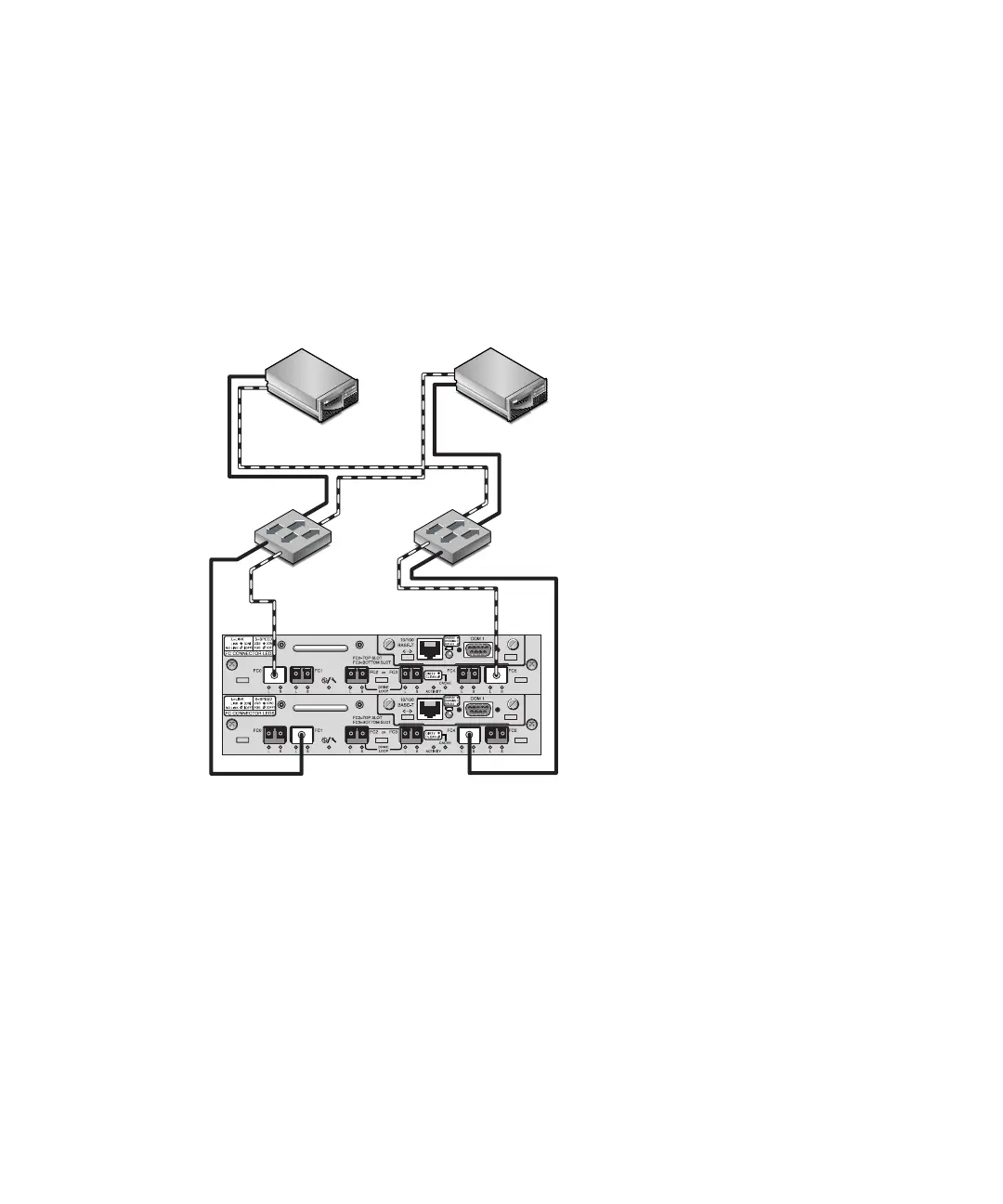

FIGURE 15 Sun StorEdge 3510 FC Array High-Performance SAN Connections
Server 1
Server 2
Switch 1
Switch 2
