Best Practices for the Sun StorEdge 3510 and 3511 FC Arrays 41

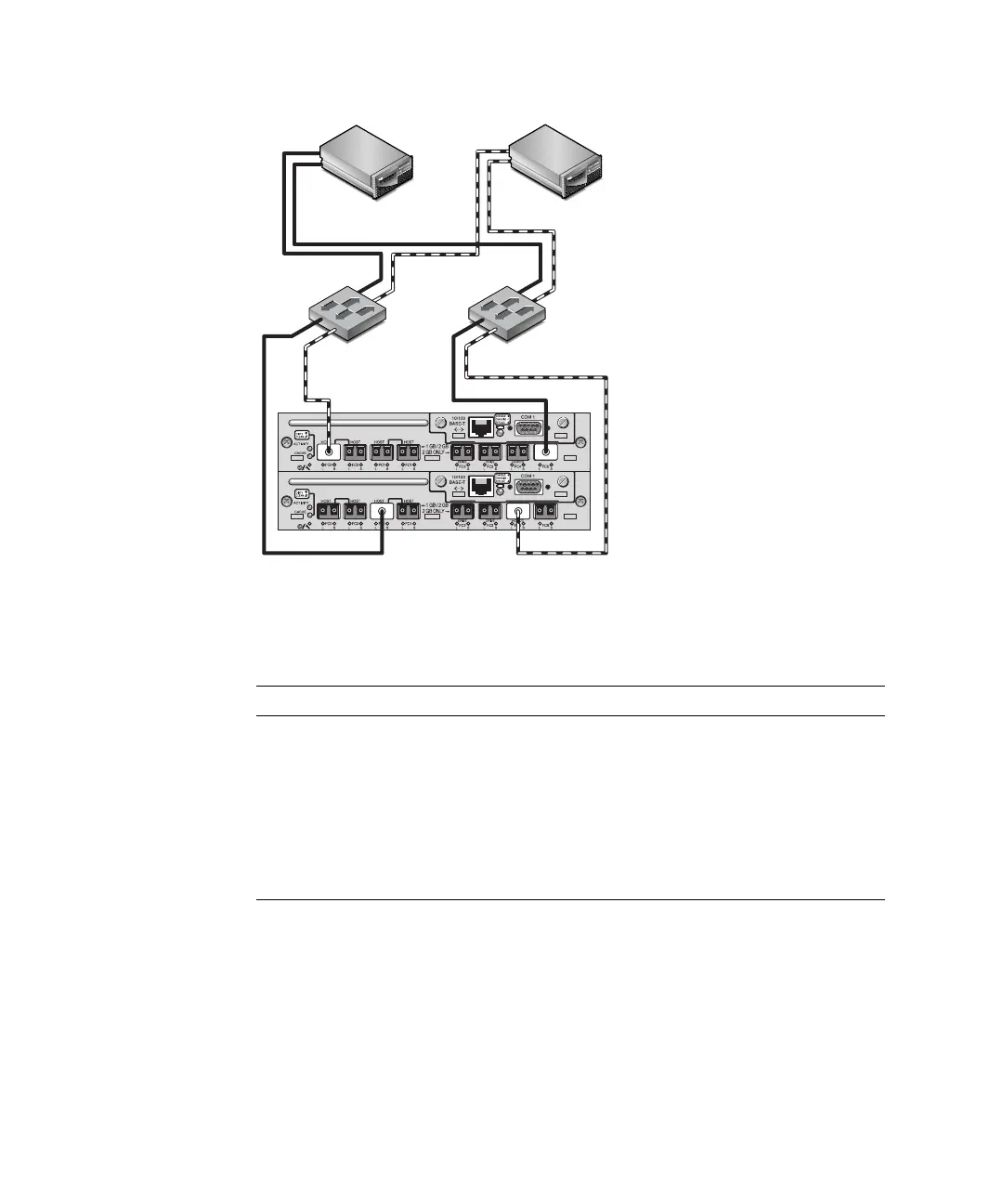

FIGURE 16 Sun StorEdge 3511 SATA Array High-Performance SAN Connections
The general procedure for creating this configuration follows.
1. Check the position of installed SFP modules. Move them as necessary to support
the connections needed.
2. Connect expansion units if needed.
ā Sun StorEdge 3510 FC Array. See āSun StorEdge 3510 FC Array High Capacity
Configurationsā on page 44.
TABLE 14 Setup Summary for a High-Performance SAN
Channel Number Primary ID Number Secondary ID Number
0 40 N/A
1 N/A 42
21415
31415
4 44 N/A
5 N/A 46
H/D/RCC
H/D/RCC
Server 1
Server 2
Switch 1
Switch 2
