58 Sun StorEdge 3000 Family Best Practices Manual • June 2004
Connecting Five Expansion Units
This high-capacity configuration using five expansion units requires the
configuration of RAID channels 4 and 5 as drive channels. This restricts host
connections to RAID channels 0 and 1, affecting supported host configurations. Use
four expansion units or fewer when possible.

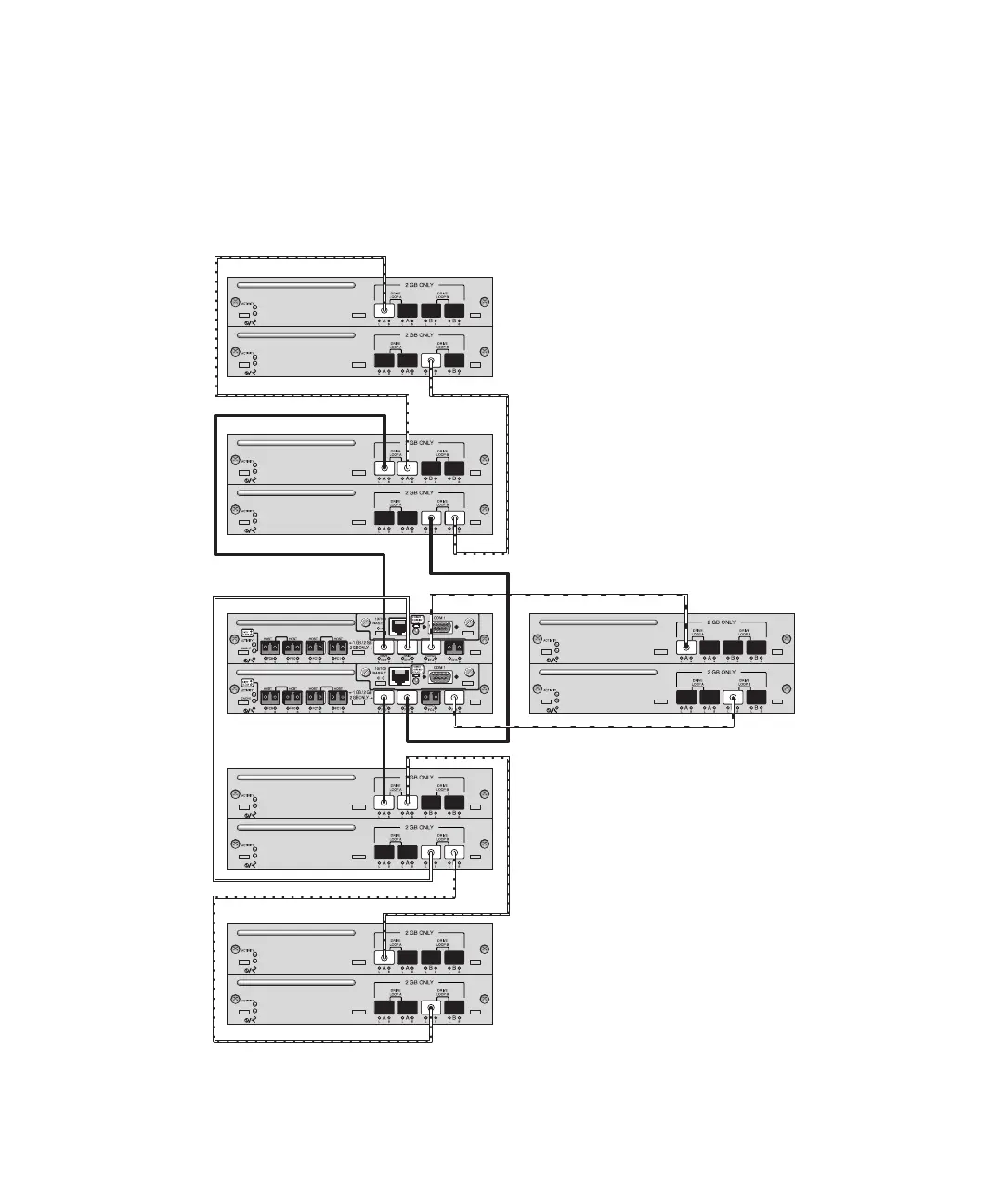

FIGURE 29 Sun StorEdge 3511 SATA Array Configuration with Five Expansion Units
H/D/RCC
H/D/RCC
