3

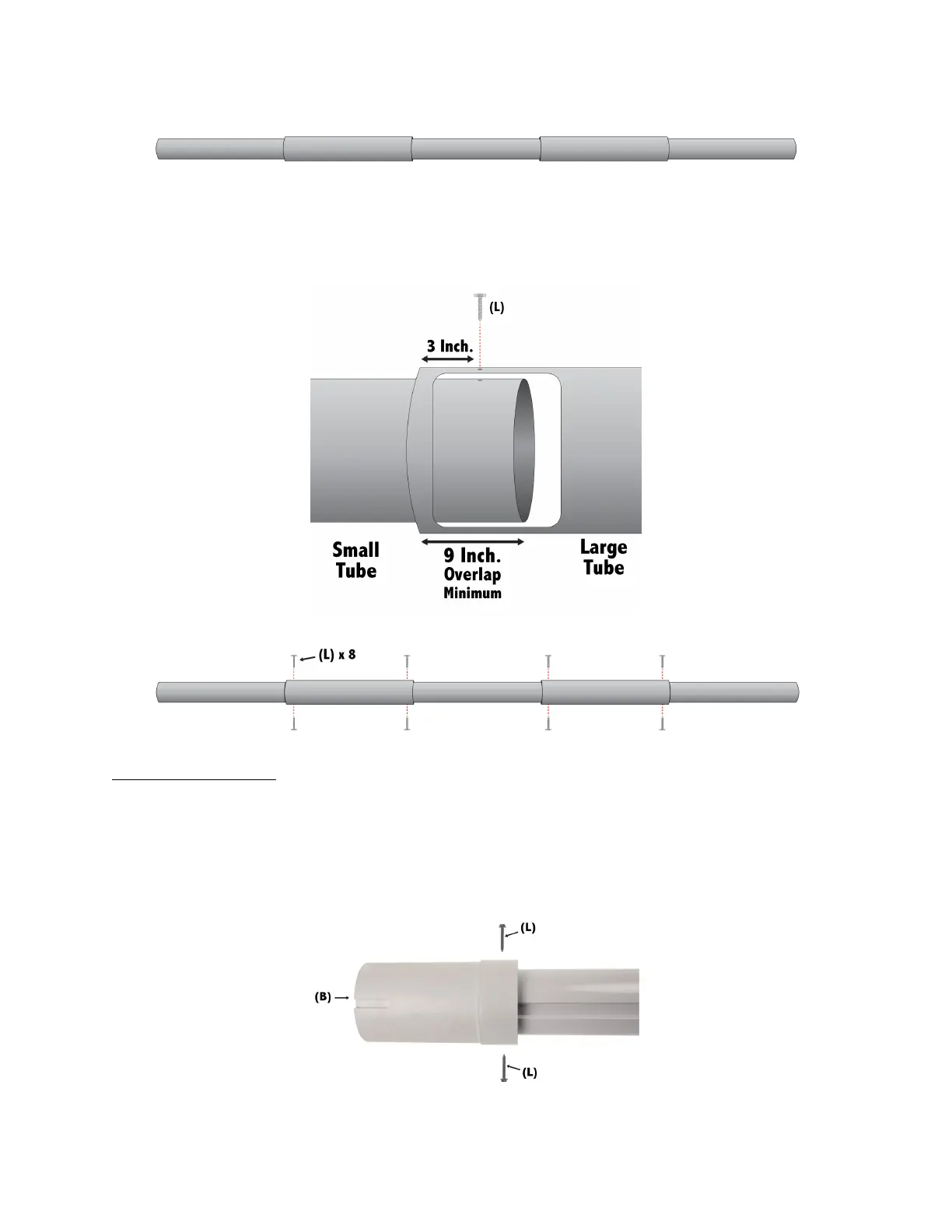

- With tubes laid out on a flat surface, make sure you have 9” minimum overlap of tubes.
- Start 3” in from end of each tube; drill pilot hole using 1/8” drill bit.
- Insert screw (L) in pre-drilled pilot hole, repeat this on the opposite side of the same tube.
- Repeat the step above 3 more times on each overlapping section to secure tube assembly.
Hub to Tube Assembly:
- Once tubes are assembled and secure, slide the hubs (B) onto each end of the tube assembly.
- Pre-drill pilot hole using 1/8” drill bit
- Using screws (L) provided attached hub to tubes, as indicated in the diagram below.
