Wheel to Hub Assembly
- With hub attached to tube and secured

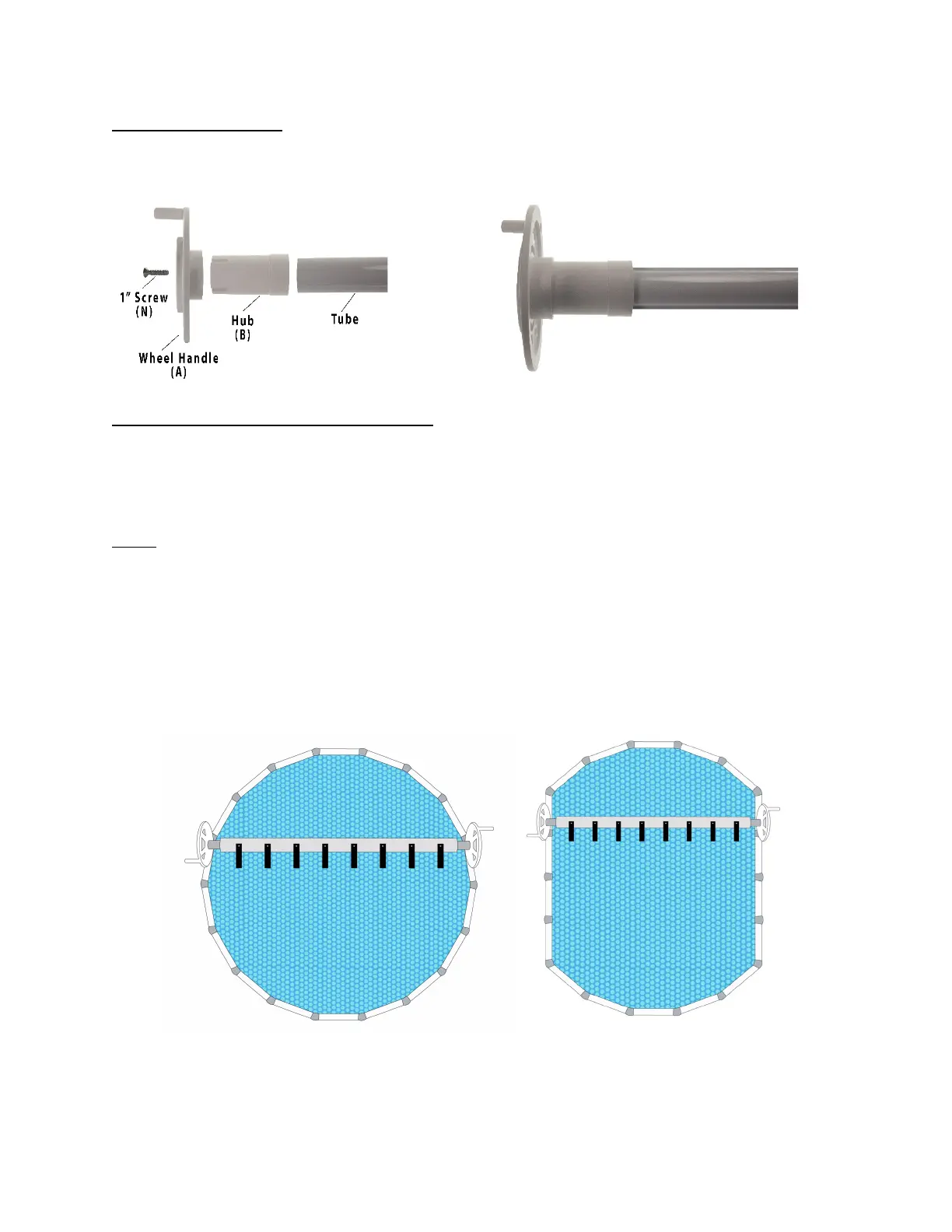

- Slide turning wheel (A) onto hub (B); attach with screws (N) provided
Reel Placement and Base Attachment to Pool
- Locate on top rail where reel will be installed.
- Ensure that no obstructions will interfere with reel base placement.
- Place base mount on top rail.
NOTE:
Model: #475175
For above ground pools up to 21ft. wide. If your pool is 21ft. wide, solar cover must be placed offset
center. For 18ft. wide oval pools, solar reel must be placed offset just passed the radius portion of the
pool.
Model: #475179
If your pool is 24ft. wide, solar reel must be placed offset center. For 21ft. wide oval pools, solar reel
must be placed offset just passed the radius portion of the pool.
