7.3.4.2.2.1 Establishing and Entering Network ID (NET ID) Name
Referring to Figure 7.3.4.6, depress the ‘NET ID’ key at 21 . The Feature Menu and Operational
Display will change to that shown in Figure 7.3.4.8 and briefly display an ‘ENTER CODE WITH
DIAL’ message at 9 . This message will automatically clear and be replaced with the following
display.
'N XX
-- -- -- -- -- -- -- -- -- -- -- -- -- -- --'
A sequence of fifteen dashes (
-- --) or alphanumeric characters, representing the “Network Name”
will appear following 'N XX'. Any combination of up to fifteen alphanumeric characters may be used.

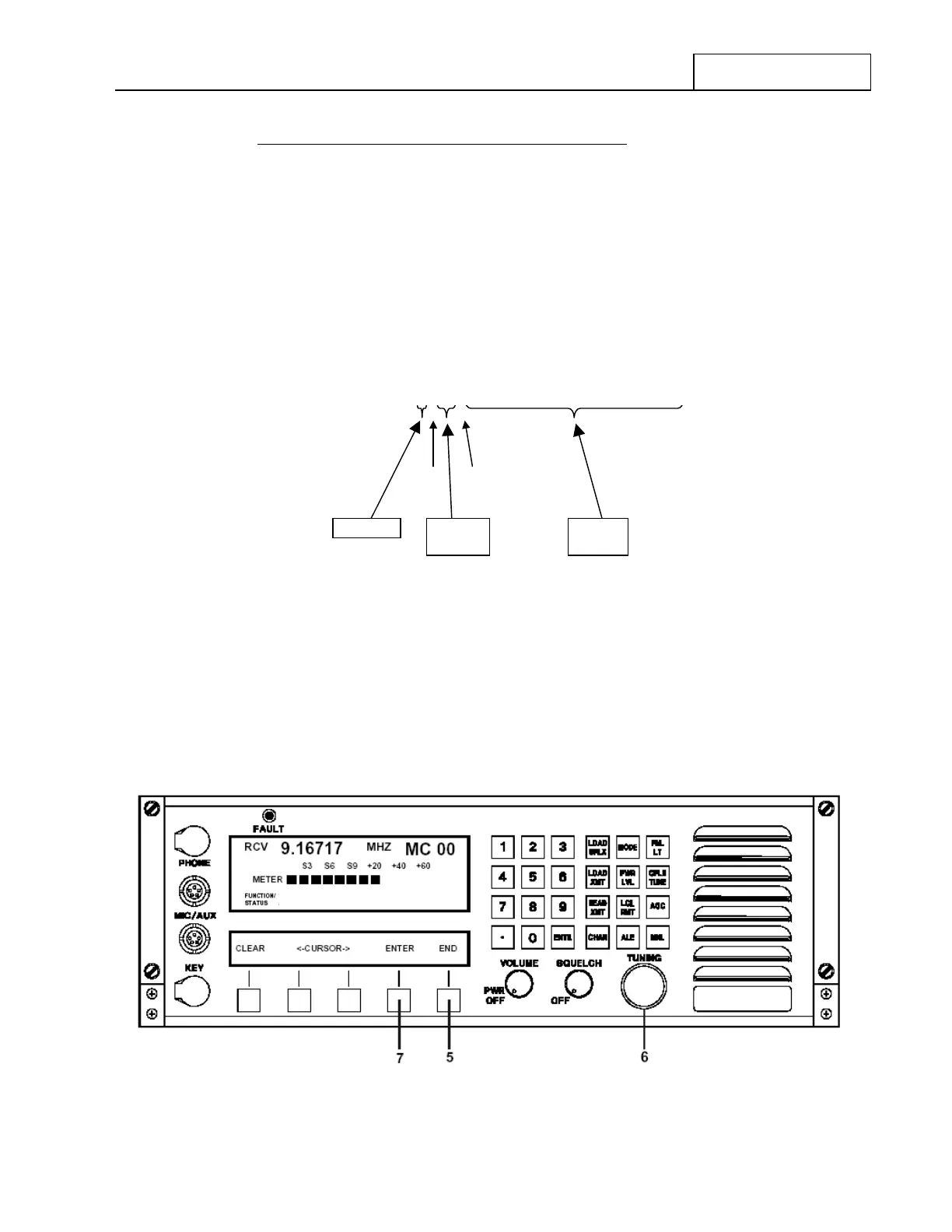

Figure 7.3.4.7 Network ID Display Detail
In this display the “N” indicates “Network”, “XX” indicates the “Network Number”, and the sequence
of fifteen (15) dashes serves as placeholders for the corresponding “Network Name”.
Figure 7.3.4.8 Network ID Selection Displays
N XX -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
“Network” Network
Number
Network
Name
space s
p
ace
N
XX
-- -- -- -- -- -- -- -- -- -- -- -- -- -- --
For new, unestablished ALE Networks XX = 01
For a presently used ALE Network XX = Network Number of
Current Network
