7.3.4.2.2.2 Selecting and Entering (SELF ID Time) Slot Position

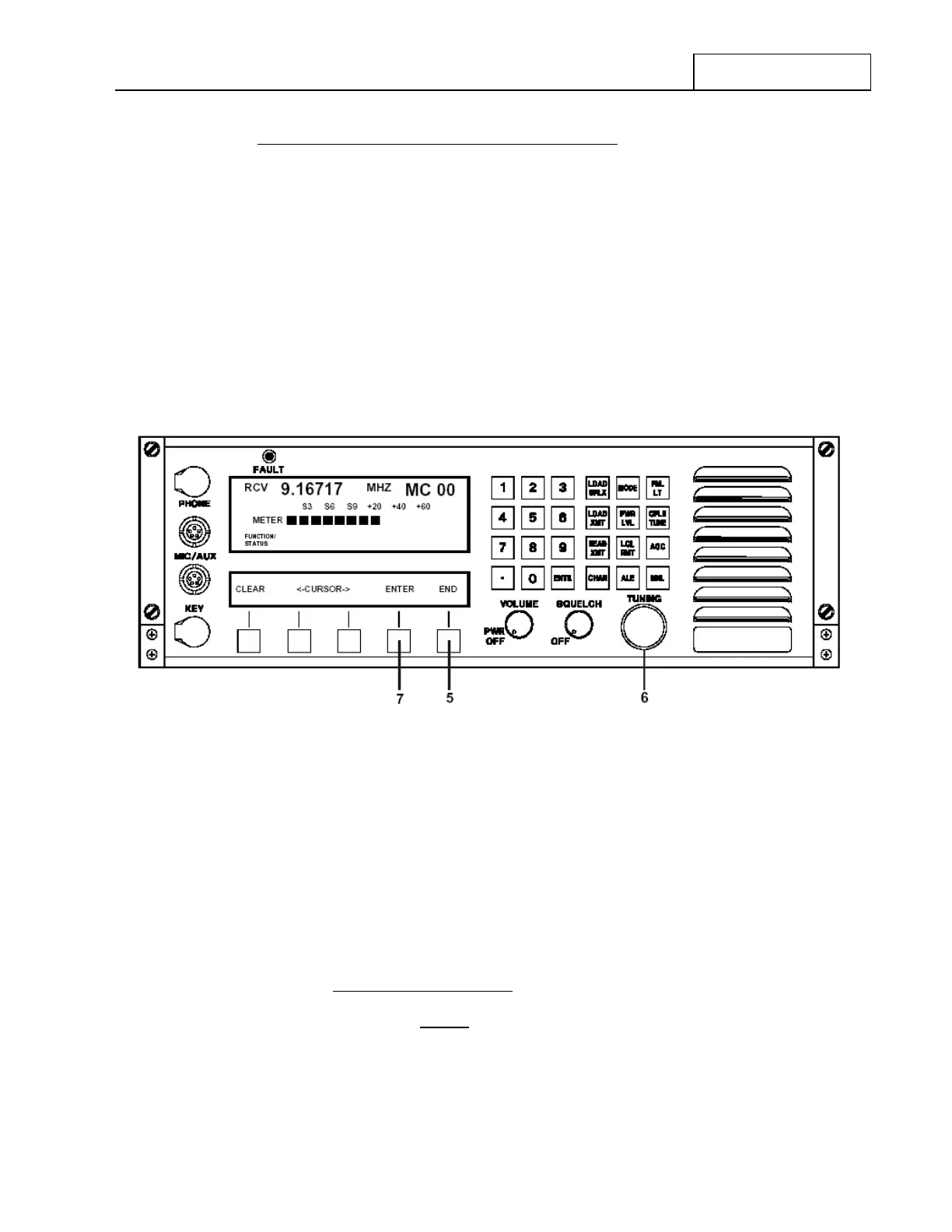

Referring to Figure 7.3.4.6, depress the 'SLOT-PS' Key at 4 . The Feature Menu and Operational
Display shown in Figure 7.3.4.9 will appear and briefly display an 'ENTER CODE WITH DIAL'
message. This message will automatically clear and be replaced with the following indication:
‘XX SLOT POSITION’
Figure 7.3.4.9 Slot Position Selection Displays
Rotate the ‘TUNING’ knob at 6 until the required (SELF ID Time) SLOT POSITION appears. Only
numbers ‘01’ through ‘10’ are valid selections.
NOTE: Under certain conditions, it is possible to display numbers from ‘11’
through ‘19’. These numbers are NOT VALID selections and should not
be used.
Depress the Enter (‘ENTR’) key at 7 to enter this selection into the RT-9000 B ’s memory. The
Feature Menu Display will revert to that shown in Figure 7.3.4.6. The user may now proceed to
paragraph 7.3.4.2.2.3 Entering a SELF ID Name
.
Depressing the ‘END’ key at 5 without
first depressing the Enter (‘ENTR’) will also cause the
Feature Menu Display will revert to that shown in Figure 7.3.4.6 except any changes made during
this process will NOT be entered into the RT-9000 B ’s memory.
For new, unestablished ALE Networks XX = 01
For a presently used ALE Network XX = Present (SELF ID Time) Slot
Position setting
RT-9000 B
SLOT POSITION
