RT-9000C Hardware Supplement
Document No. 8121000602
Revision A (19 Mar 2007)
8-6
RT-9000C
RT-9000C AUDIO (J5) Connector Signals
Organized by Pin No. Organized by Signal Name
Pin
No.
Signal Name Notes Signal Name
Pin
No.
Notes
A Receive Audio Out - LSB (Lower Sideband) 1 Receive Audio Out - USB (Upper Sideband) L 1
B Firmware Defined Digital Output No. 1 6 Receive Audio Out - USB (return) M
C Receive Audio Out - LSB (return) Receive Audio Out - LSB (Lower Sideband) A 1
D Firmware Defined Digital Output No. 2 6 Receive Audio Out - LSB (return) C
E Firmware Defined Digital Input No. 1 6 Transmit Audio In - USB (Upper Sideband) H 2
F Analog Ground Transmit Audio In - USB (return) J
G Remote Keyline In 3 Transmit Audio In - LSB (Lower Sideband) S 2
H Transmit Audio In - USB (Upper Sideband) 2 Transmit Audio In - LSB (return) T
J Transmit Audio In - USB (return) Remote Keyline In G 3
K +28 VDC Output 5 Analog Ground F
L Receive Audio Out - USB (Upper Sideband) 1 Analog Ground R
M Receive Audio Out - USB (return) +12 VDC Output N 4
N +12 VDC Output 4 +28 VDC Output K 5
P Firmware Defined Digital Input No. 2 6 +28 VDC Output U 5
R Analog Ground Firmware Defined Digital Input No. 1 E 6
S Transmit Audio In - LSB (Upper Sideband) 2 Firmware Defined Digital Input No. 2 P 6
T Transmit Audio In - LSB (return) Firmware Defined Digital Output No. 1 B 6
U +28 VDC Output 5 Firmware Defined Digital Output No. 2 D 6
V Firmware Defined Digital Output No. 3 6 Firmware Defined Digital Output No. 3 V 6
Notes
1. Receive Audio Out – USB & LSB (600-Ohms – 0 dBm level)
2. Transmit Audio In - USB & LSB (600-Ohms – 0 dBm Level)
3. Remote Keyline In - Low true signal (i.e. Connect to Ground to key)
4. Pin N (+12 VDC) - Output current limited to 50 mA, maximum
5. Pins K & U (+28 VDC) - Output current limited to 50 mA, maximum per pin
D R V U K
B A M
C P N L
F G H
E S T J
Notes:
1. Figure shows the mating connector that connects to AUDIO
connector (J5) located on RT-9000 C rear panel.
2. Figure shows termination end (or backside) of this mating connector.

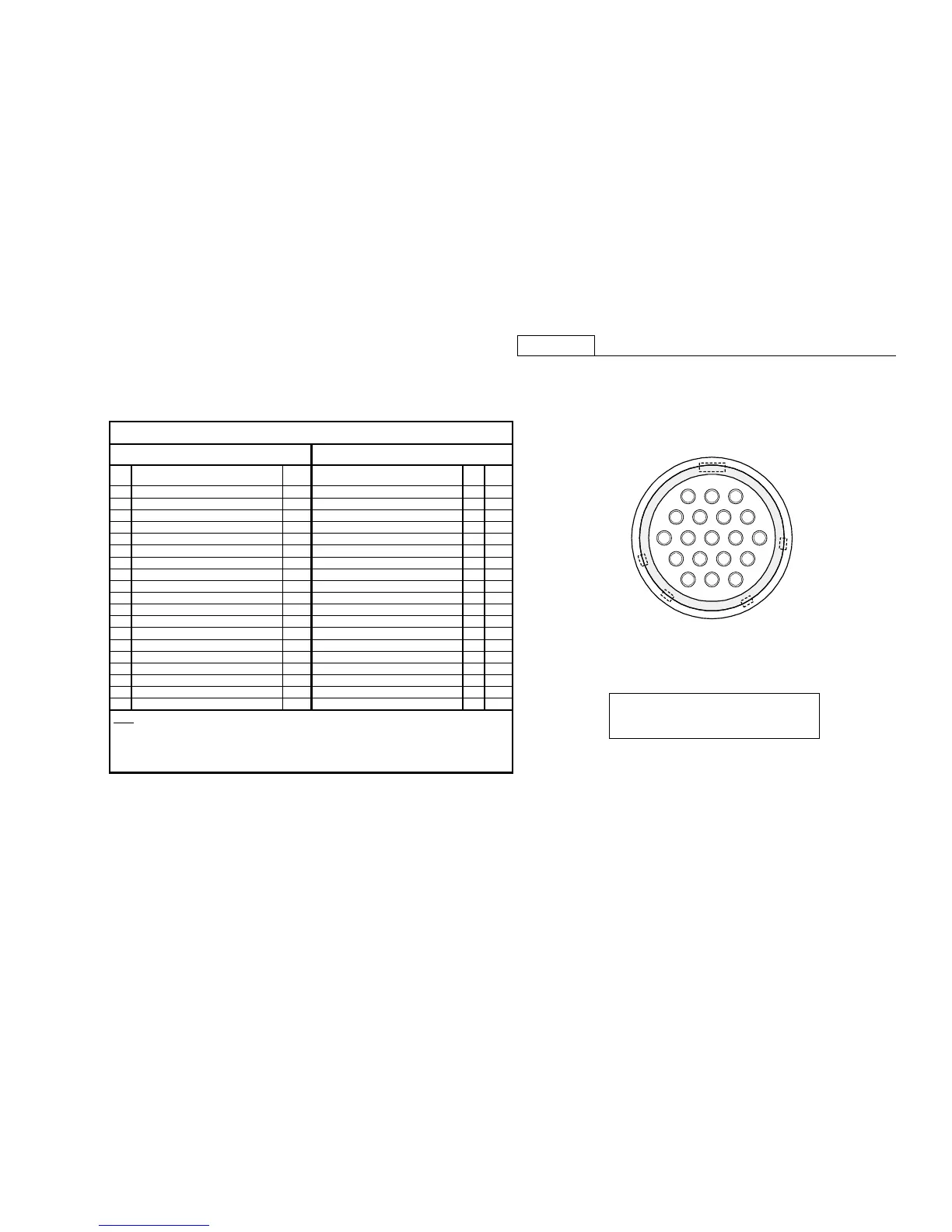

Figure 8.4 RT-9000C J5 AUDIO Connector Details
