RT-9000C Hardware Supplement
Document No. 8121000602
Revision A (19 Mar 2007)
8-16
RT-9000C

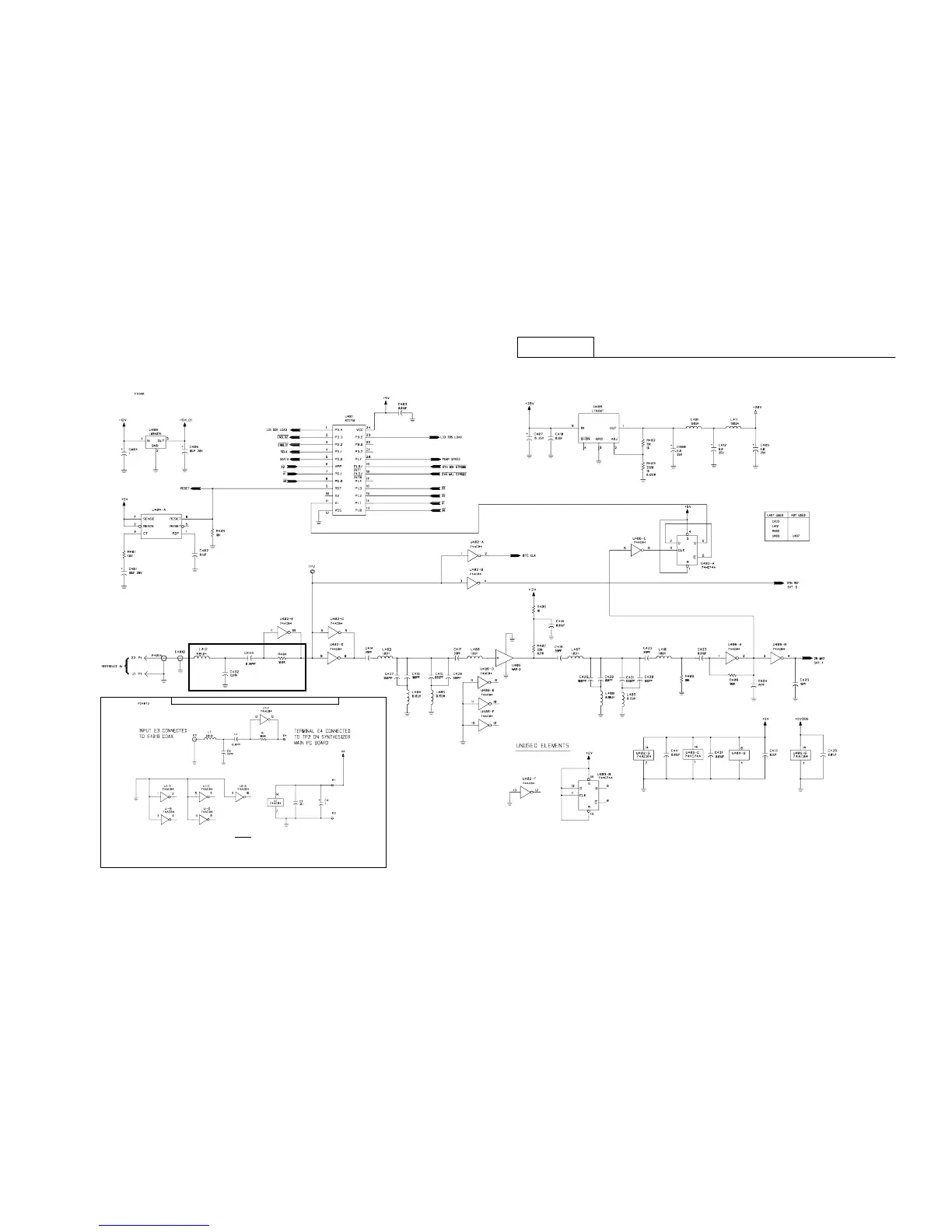

Notes:
1. Synthesizer Revisions E through early Revision H use the “Reference Modification PC Board” to add circuitry to
main PC Board. Affected circuitry indicated in shaded area of main schematic.
2. Synthesizer late Revision H and higher incorporates additional circuitry on main PC Board.
3. Components used on “Reference Modification PC Board” are listed separately in Parts List section.
Reference Modification PC Board
To Next Page
