RT-9000C Hardware Supplement
Document No. 8121000602
Revision A (19 Mar 2007)
8-17
RT-9000C

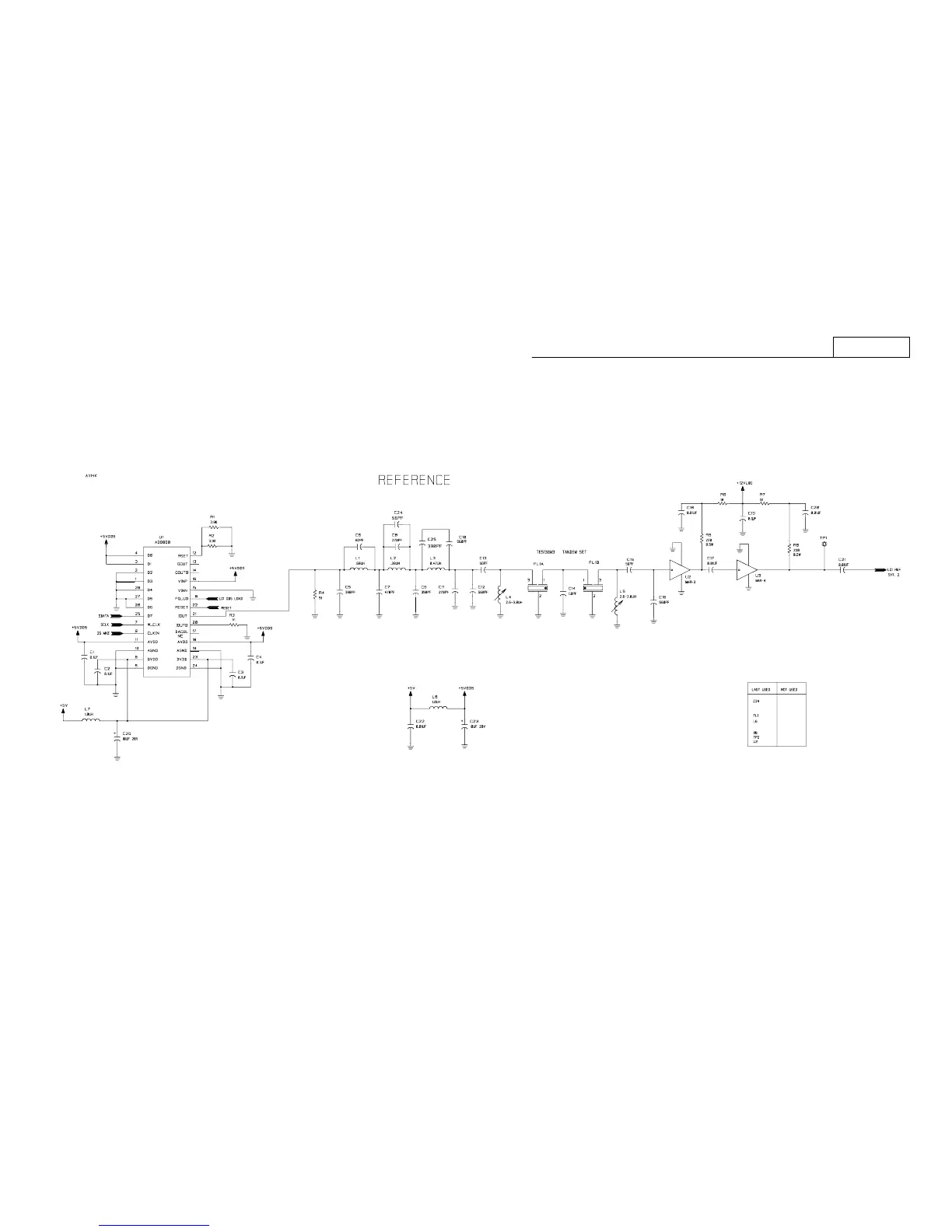

Figure 8.9 1A2A2 Synthesizer Assembly - DDS Version -
Schematic Diagram (Sheet 2 of 6)
