Assembling Your Tower Fan continued
Connecting the tower onto the base
1.Position the base onto the lower part of the
fan. See figure 3. Line up the pin on the
base with the hole in the fan as shown.
2.Fix the base to the fan with the four screws
provided.
3.Secure the power cord as shown.

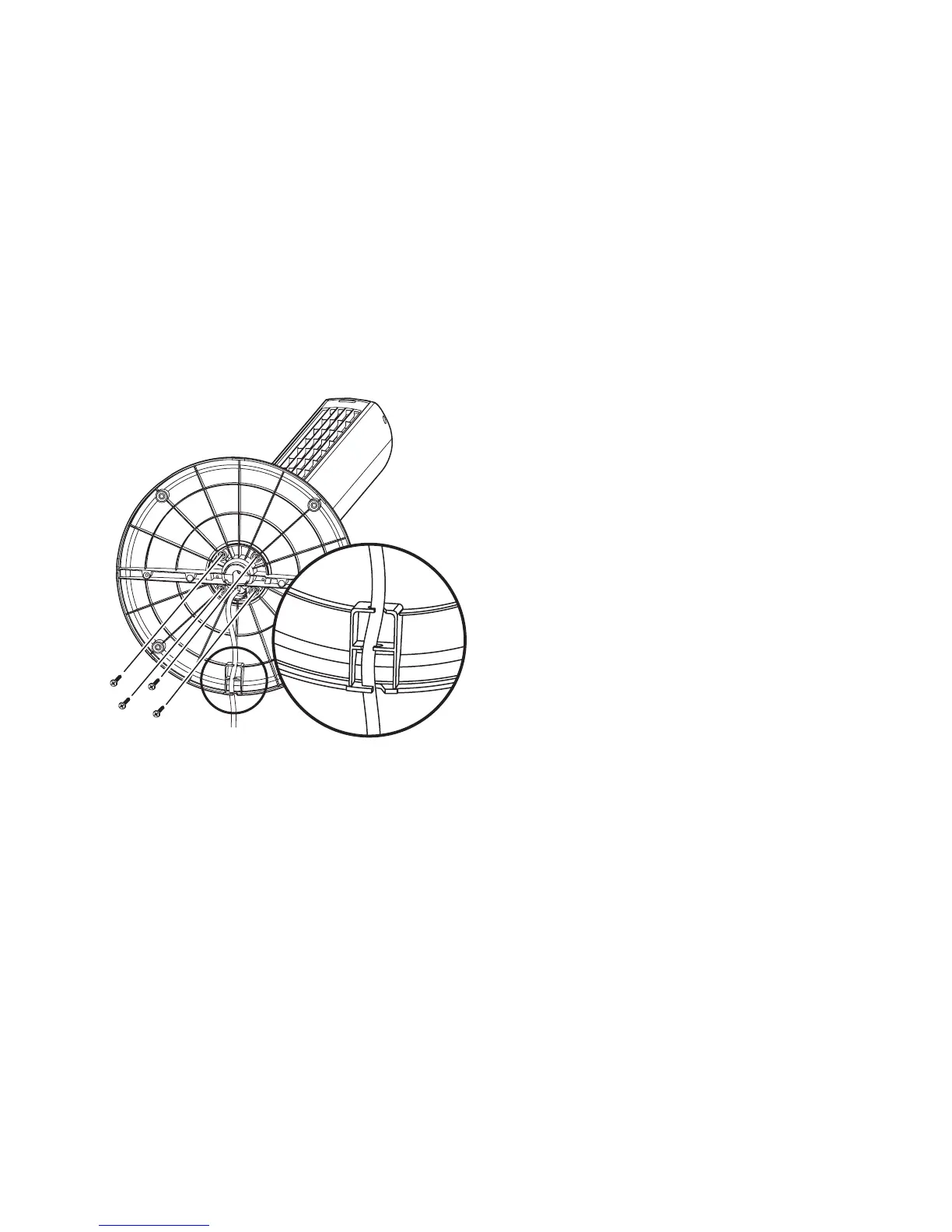

Figure 3
