or “dummy” set is made of cold rolled steel. The purpose of the steel point and
lever arm is to balance the movement of the tungsten point and its lever arm
and to give smooth, quiet operation, which is important. Since the breaker
points are mounted on a rotating disc to enable centrifugal force to act upon
them, the current is fed to the rotating governor through a pair of stationary
brushes, hence there are two governor brushes.

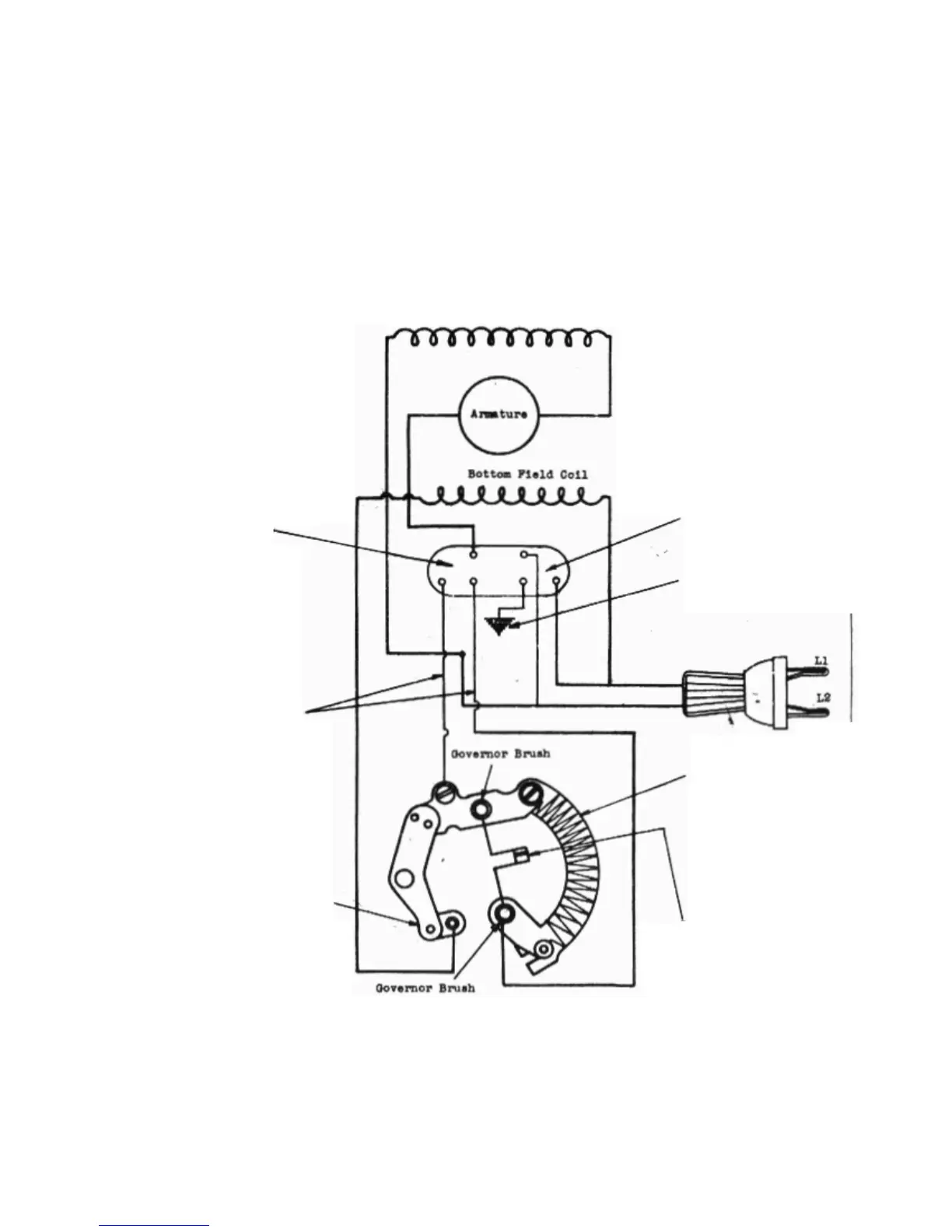

The wiring diagram below will help clarify the servicing and repair of this
model.
Governor
Condenser
Circuit
Shielded
Leads
Governor Breaker Points
Line Switch
Resistor
Filter Condenser
Circuit
Mixer Case
Top Field Coil
Wiring Diagram for MIXMASTER
Model 1 AUTOMATIC
