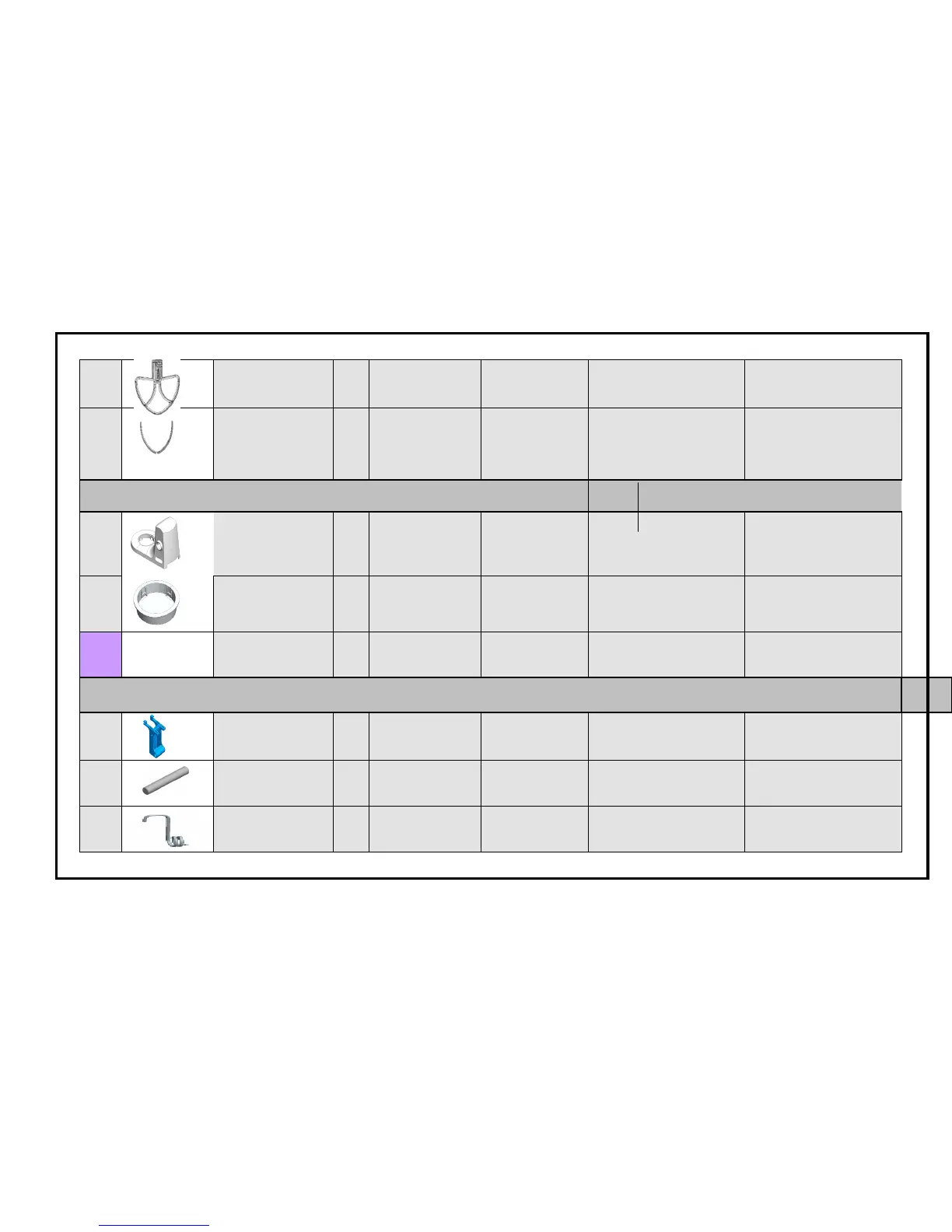

Sunbeam MX9200 Cafe series - HEAD AND HINGE MECHANISMS

MX9200 Café Series Planetary MixMaster Issue: A Page 7 of 15
G.1
PLATIC BEATER
ASSEMBLY
1
PC
CLEAR
GLOSS FINISH
MX92002
G.2
BEATER WIPING
BLADE
1
TPE
(TPE包膠)
60 DURO
RED pantone
Q160-1-1
THIN TEXTURE
YS20001 A
(Matte)
H.
LOWER ASM
H.1
LOWER BODY
1
AL
Silver spray
finish
H.2
BOWL LOCK
1
SS
(SUS304
T＝0.8mm,)
MIRROR
POLISH
H.3
SCREW
4
STAINLESS
STEEL
Φ4.5X12mmL PM
I.
HINGE MECHANSIM ASM
I.1
NECK
1
ZN
FINISH TO BE
SPECIFIED
I.2
PIVOT IN NECK
1
MEDIUM
CARBON STEEL,
NICKEL PLATED
KNURLED
25mm FROM
ONE END
I.3
NECK TORSION
SPRING
2
SS
dia. 2.8mm
3 coil
