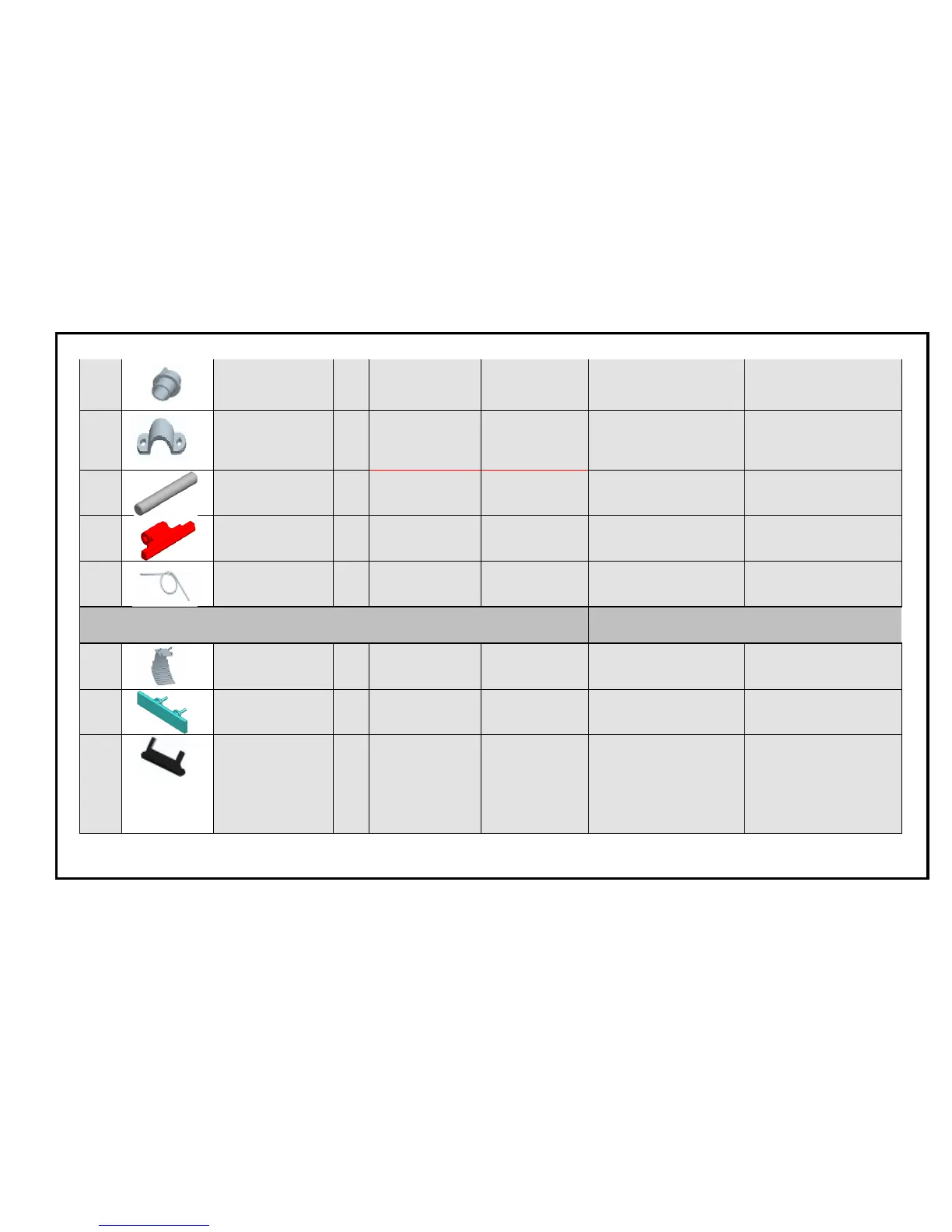

Sunbeam MX9200 Cafe series - TONGUE AND SWITCH ASSEMBLIES

MX9200 Café Series Planetary MixMaster Issue: A Page 8 of 15
I.4
NECK BEARING
SHELL
2
GF PA 15%
(PA66+15%GF(A
3EG3))
FINISH TO BE
SPECIFIED
I.5
NECK BEARING
CLAMP
2
2mm COLD
ROLLED STEEL
(電解片
T=2.0mm)
FORMED ->
HOLES
PUNCHED
I.6
PIVOT PIN CAM
1
Med carbon
steel, nickel
plated.
KNURLED ON
ONE END
I.7
CAM
1
SS
FINISH TO BE
SPECIFIED
I.8
CAM SPRING
1
SS
4.5 coils
per 2EB2
J.
TONGUE ASM
J.1
NECK TONGUE
COVER
1
PP
FINISH TO BE
SPECIFIED
J.2
TONGUE PAD
1
Si
-
J.3
TONGUE
SUPPORT
1
PP
FINISH TO BE
SPECIFIED
