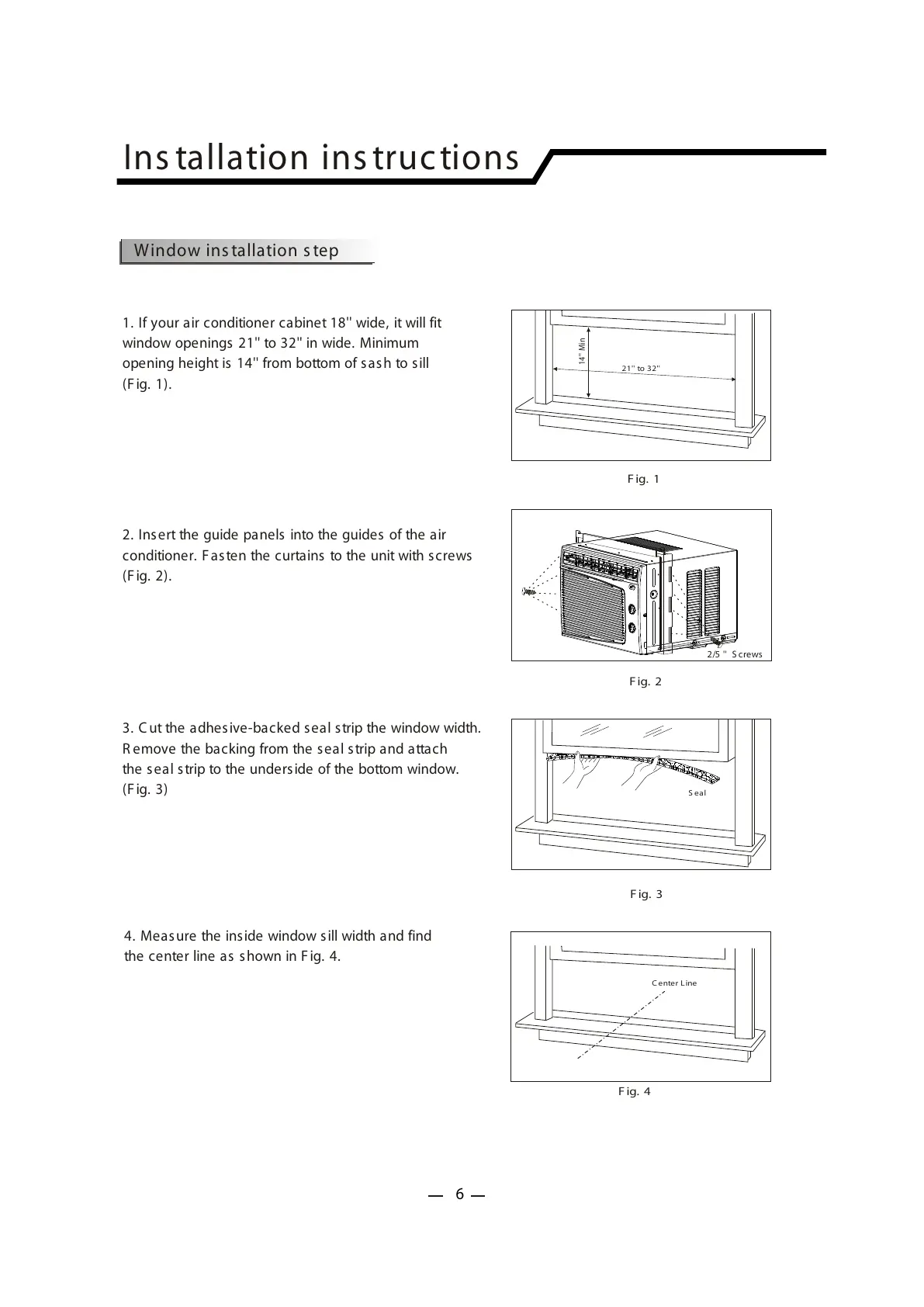

1. If your air conditioner cabinet 18'' wide, it will fit
window openings 21'' to 32'' in wide. Minimum
opening height is 14'' from bottom of sash to sill
(F ig. 1).
F ig. 1
Ins tallation ins tructions
2. Insert the guide panels into the guides of the air
conditioner. F asten the curtains to the unit with s crews
(F ig. 2).
F ig. 3
3. C ut the adhesive-backed s eal s trip the window width.
R emove the backing from the seal strip and attach
the s eal s trip to the underside of the bottom window.
(F ig. 3)
S eal
21'' to 32''
14
''
Min
4. Measure the inside window sill width and find
the center line as shown in Fig. 4.
C enter Line
F ig. 4
Window ins tallation s tep
2/5 ''
S crews
F ig. 2
6
