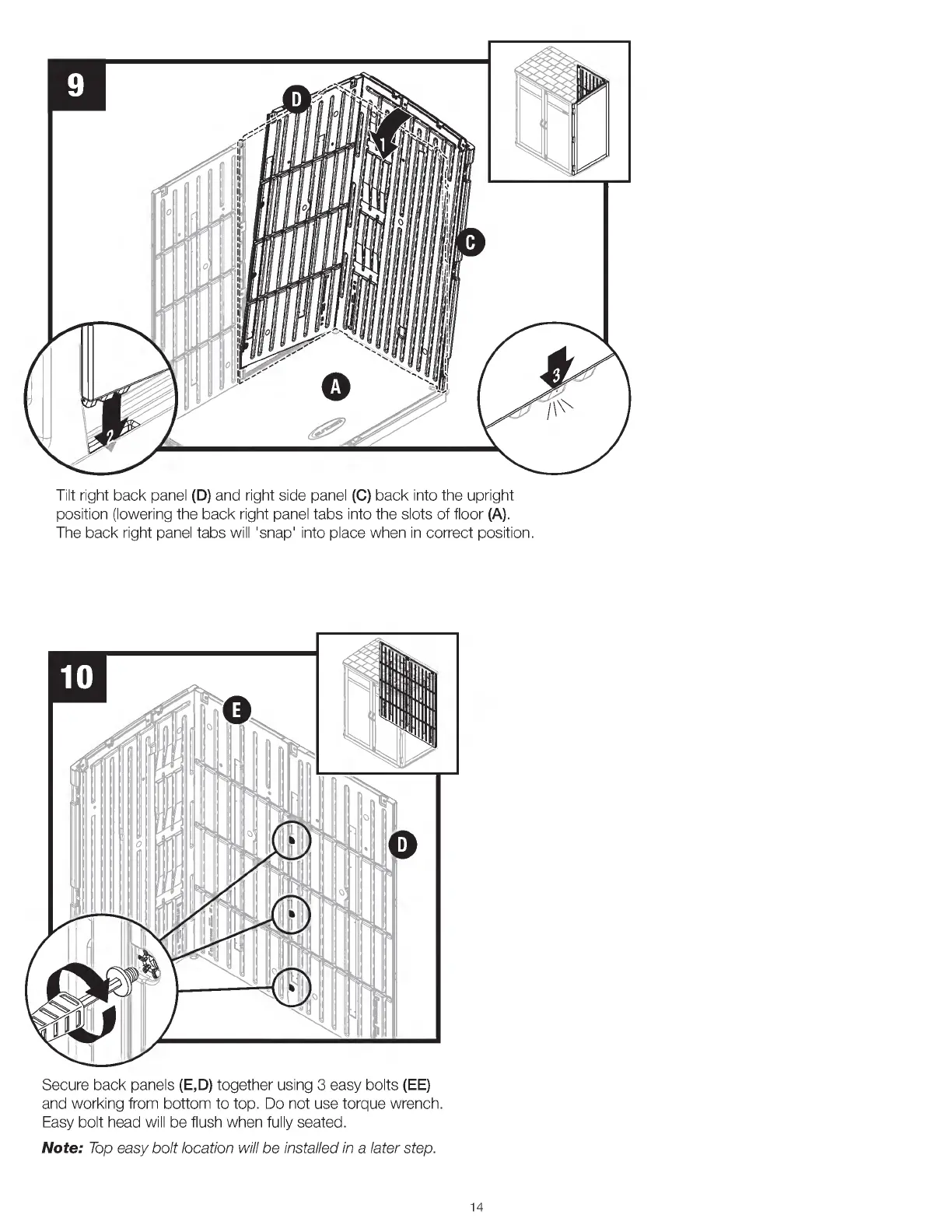

Tilt
right
back
panel
(
D)
and
right
side
panel (
C)
back
into
the
upright
position (
lowering
the
back
right
panel
tabs
into
the
slots
of
floor
(
A).
The
back
right
panel
tabs
will '
snap'
into
place
when
in
correct
position.
Secure
back
panels
(
E,D)
together
using
3
easy
bolts
(
EE)
and
working
from
bottom
to
top.
Do
not
use
torque
wrench.
Easy
bolt
head
will
be
flush
when
fully
seated.
Note:
Top
easy
bolt
location
will
be
installed
in
a
later
step.
14
