Suncast BMS6202 - Assembly-Roof

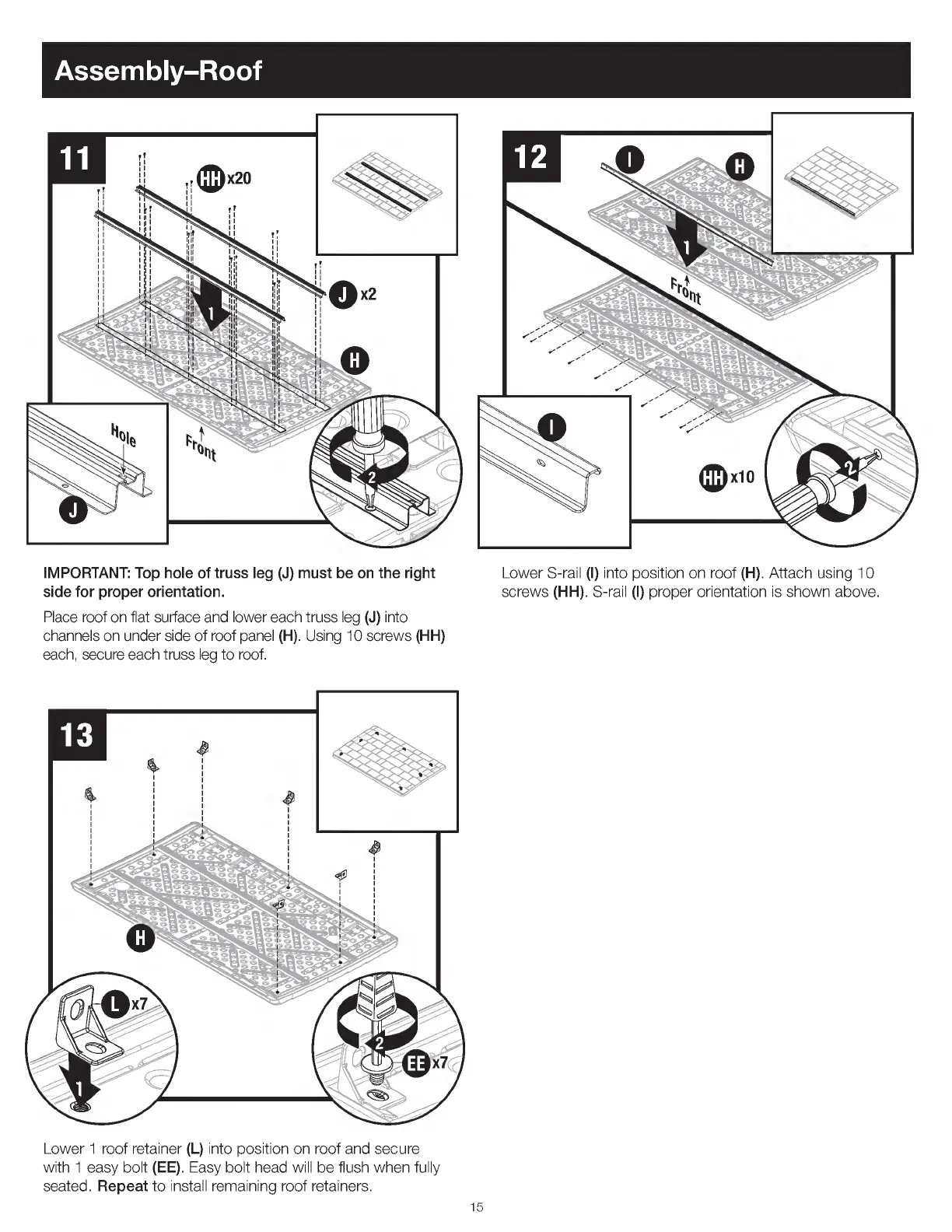

Assembly- Roof
Lower S- rail ( I) into position on roof ( H). Attach using 10
screws ( HH). S- rail ( I) proper orientation is shown above.
IMPORTANT: Top hole of truss leg ( J) must be on the right
side for proper orientation.
Place roof on flat surface and lower each truss leg ( J) into
channels on under side of roof panel ( H). Using 10 screws ( HH)
each, secure each truss leg to roof.
Lower 1 roof retainer ( L) into position on roof and secure
with 1 easy bolt ( EE). Easy bolt head will be flush when fully
seated. Repeat to install remaining roof retainers.
15
