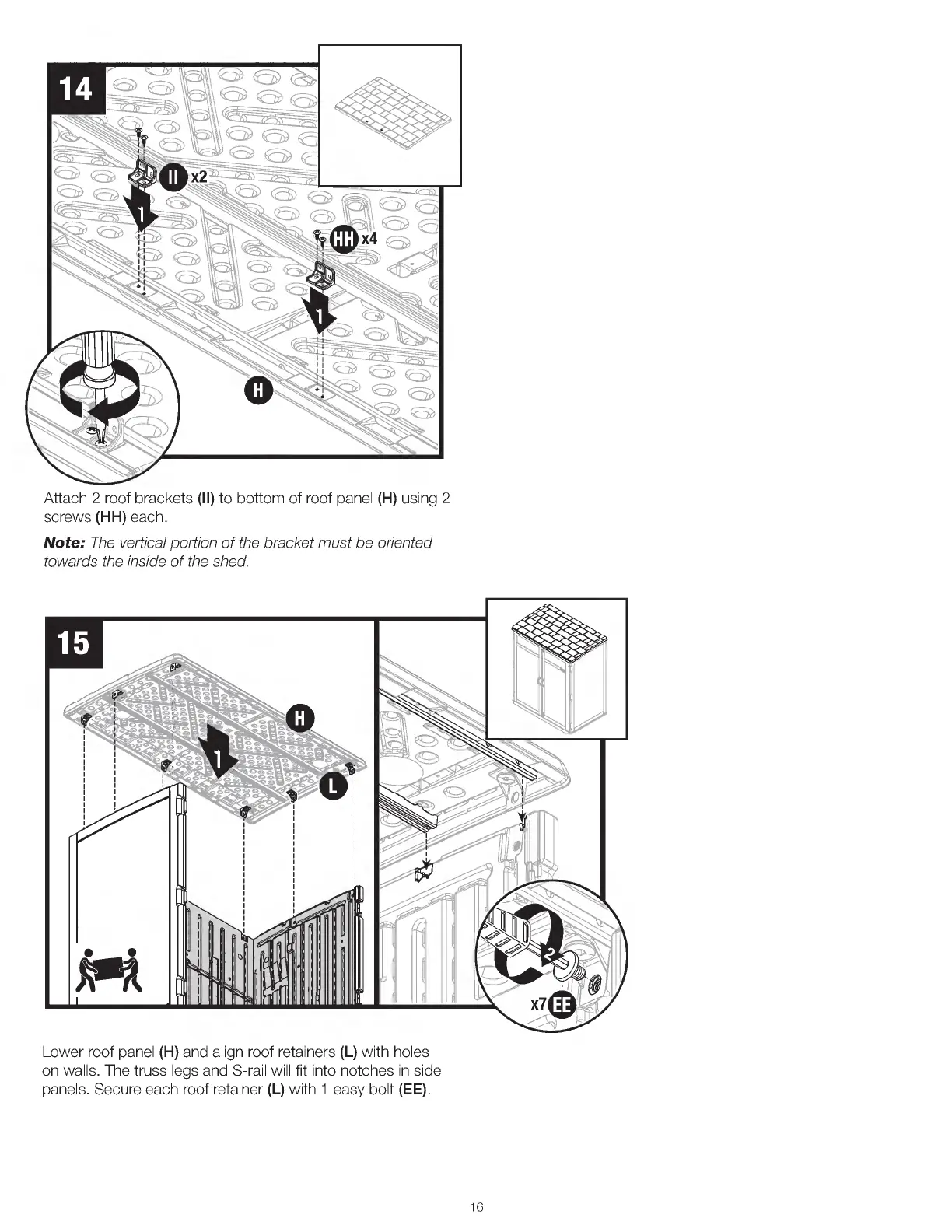

Attach
2
roof
brackets (
II)
to
bottom
of
roof
panel
(
H)
using
2
screws
(
HH)
each.
Note:
The
vertical
portion
of
the
bracket
must
be
oriented
towards
the
inside
of
the
shed.
Lower
roof
panel
(
H)
and
align
roof
retainers
(
L)
with
holes
on
walls.
The
truss
legs
and
S-
rail
will
fit
into
notches
in
side
panels.
Secure
each
roof
retainer
(
L)
with
1
easy
bolt
(
EE).
16
