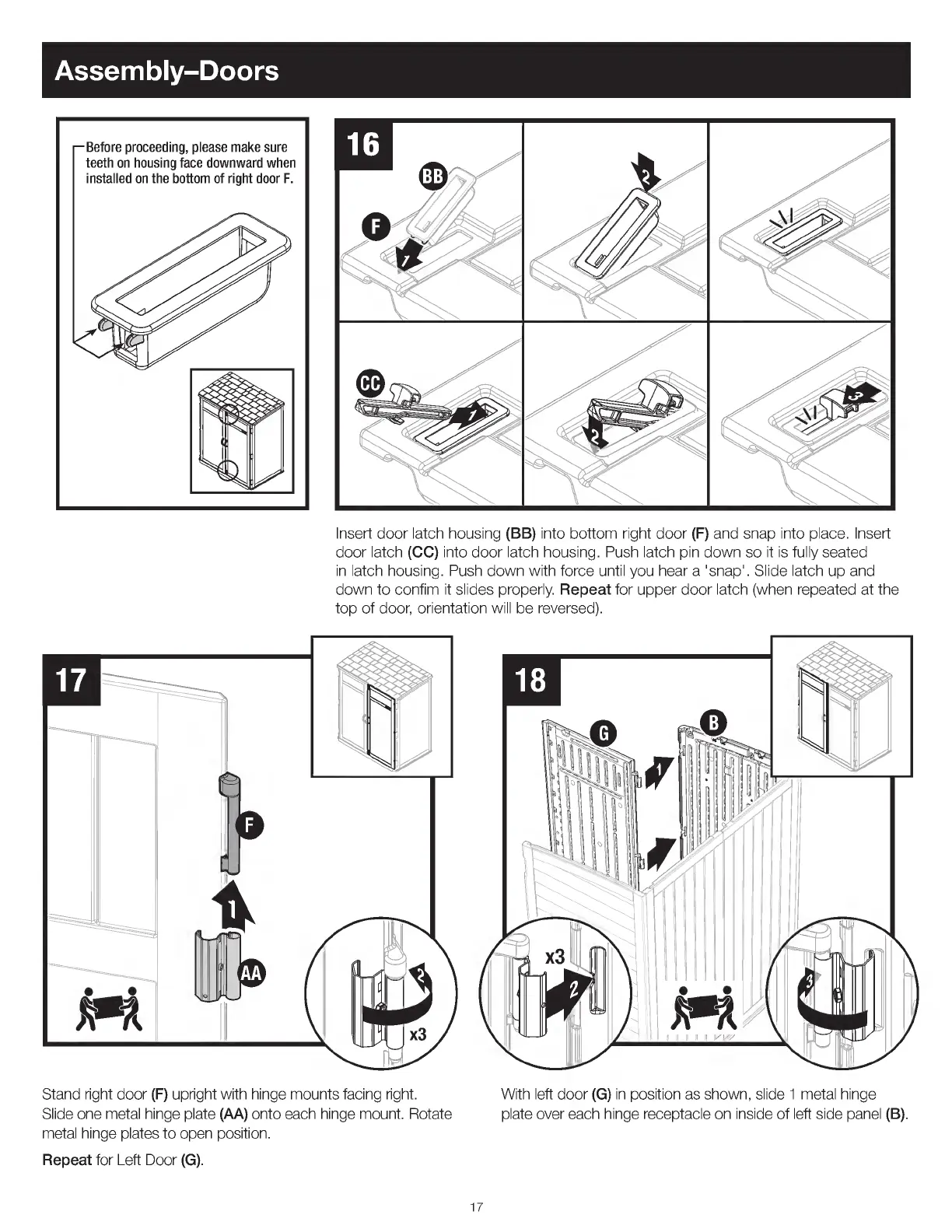

Assembly- Doors
Before proceeding, please make sure
teeth on housing face downward when
installed on the bottom of right door F.
16
Insert door latch housing ( BB) into bottom right door ( F) and snap into place. Insert
door latch ( CC) into door latch housing. Push latch pin down so it is fully seated
in latch housing. Push down with force until you hear a ' snap'. Slide latch up and
down to confim it slides properly. Repeat for upper door latch ( when repeated at the
top of door, orientation will be reversed).
With left door ( G) in position as shown, slide 1 metal hinge
plate over each hinge receptacle on inside of left side panel ( B).
Stand right door ( F) upright with hinge mounts facing right.
Slide one metal hinge plate ( AA) onto each hinge mount. Rotate
metal hinge plates to open position.
Repeat for Left Door ( G).
17
