Suncast BMS6583 - Shed Assembly - Doors; Prepare Right Door Hinges; Mount Right Door to Shed; Secure Door Hinges

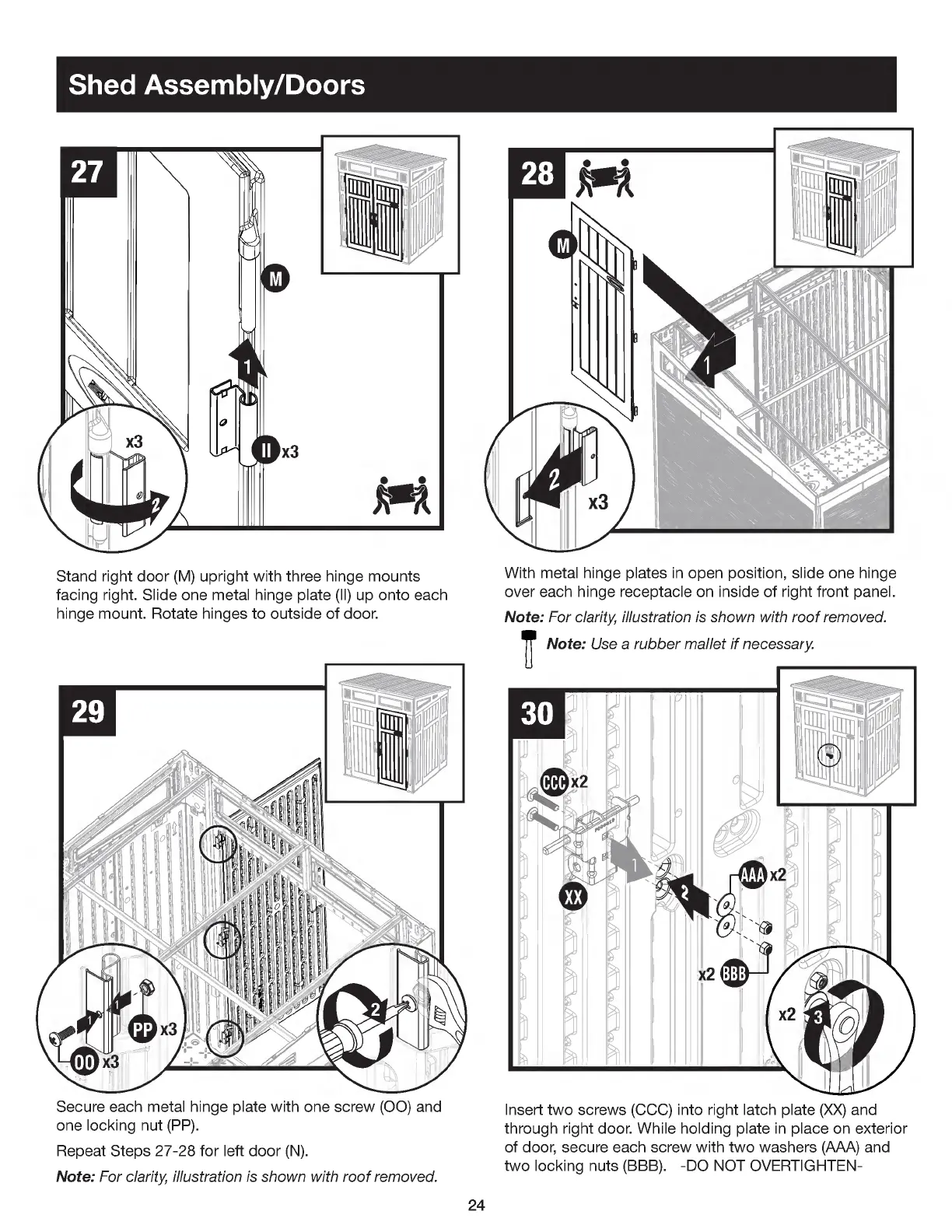

Shed Assembly/Doors
Stand right door ( M) upright with three hinge mounts
facing right. Slide one metal hinge plate ( II) up onto each
hinge mount. Rotate hinges to outside of door.
Secure each metal hinge plate with one screw ( 00) and
one locking nut ( PP).
Repeat Steps 27-28 for left door ( N).
Note: For clarity, illustration is shown with roof removed.
With meta hinge plates in open position, slide one hinge
over each hinge receptacle on inside of right front panel.
Note: For clarity, illustration is shown with roof removed.
7 Note: Use a rubber mallet if necessary.
Insert two screws ( CCC) into right latch plate ( XX) and
through right door. While holding plate in place on exterior
of door, secure each screw with two washers ( AAA) and
two locking nuts ( BBB). - DO NOT OVERTIGHTEN-
24
