Suncast BMS7775 - Page 11

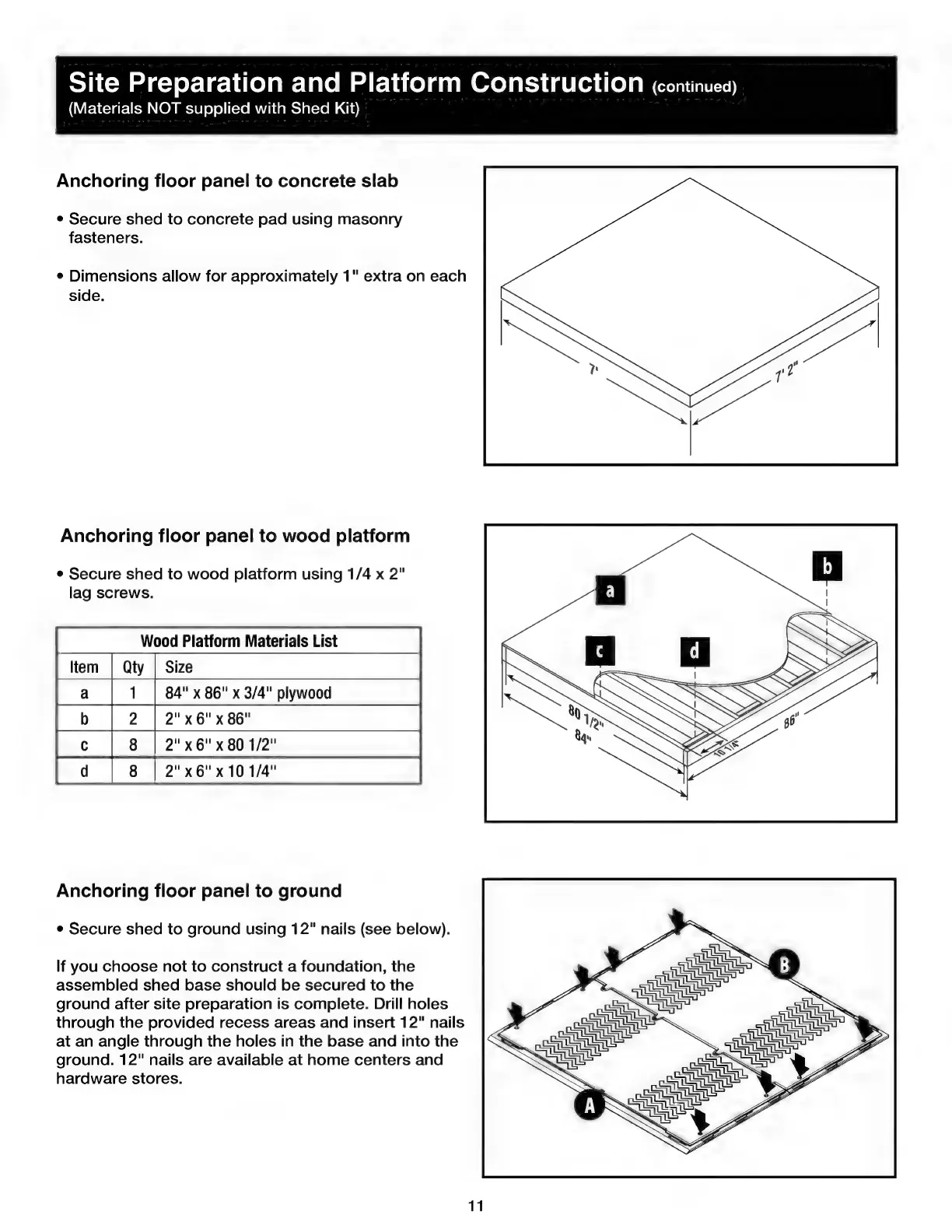

Site Preparation and Platform Construction (continued)
(Materials NOT supplied with Shed Kit)
Anchoring floor panel to concrete slab
• Secure shed to concrete pad using masonry
fasteners.
e Dimensions allow for approximately 1" extra on each
side.
Anchoring floor panel to wood platform
e Secure shed to wood platform using 1/4 x 2"
lag screws.
Wood Platform Materials List
2" x 6" x 80 1/2"
| d | 8 |2"x6"x101/4"
Anchoring floor panel to ground
• Secure shed to ground using 12" nails (see below).
If you choose not to construct a foundation, the
assembled shed base should be secured to the
ground after site preparation is complete. Drill holes
through the provided recess areas and insert 12" nails
at an angle through the holes in the base and into the
ground. 12" nails are available at home centers and
hardware stores.
11
