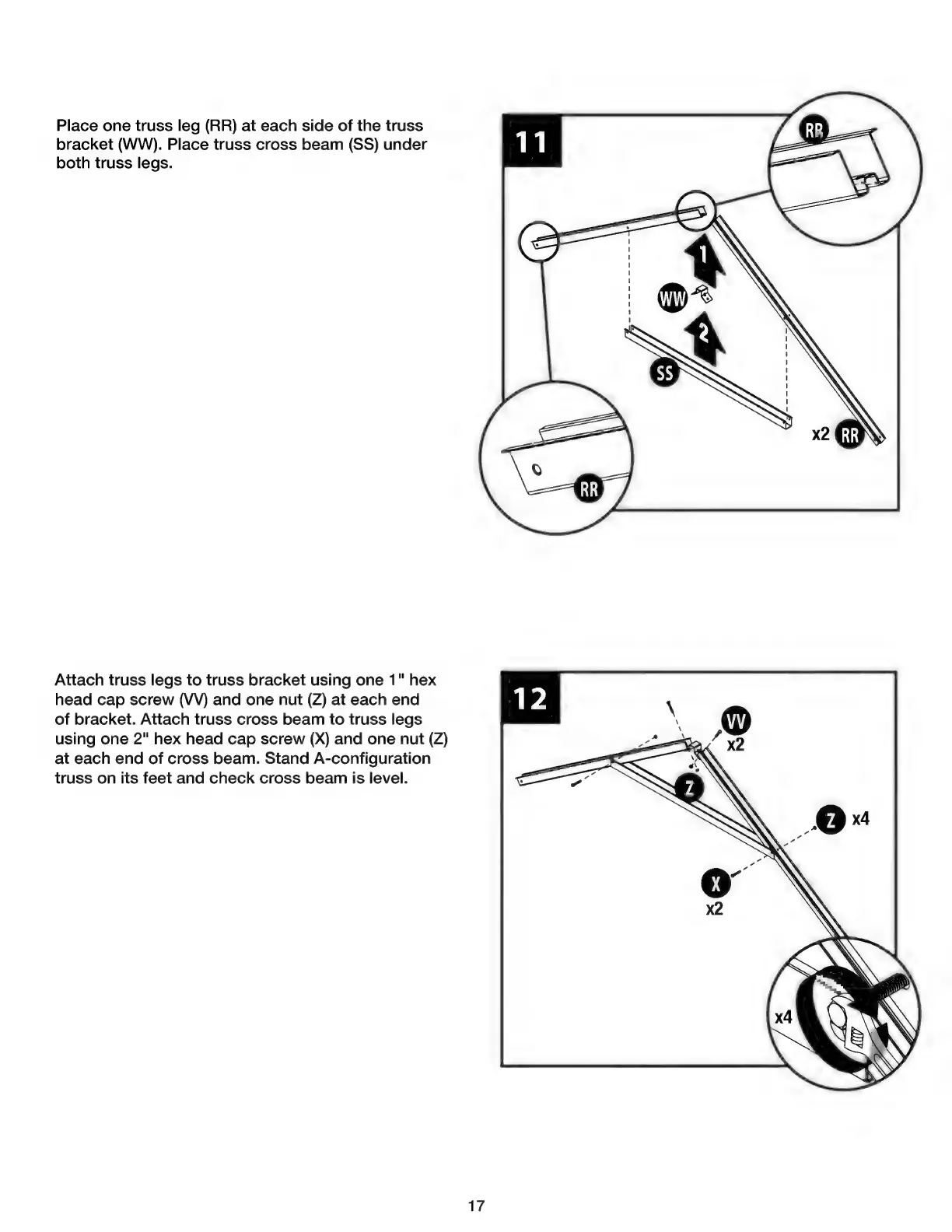

Place one truss leg (RR) at each side of the truss
bracket (WW). Place truss cross beam (SS) under
both truss legs.
Attach truss legs to truss bracket using one 1" hex
head cap screw (VV) and one nut (Z) at each end
of bracket. Attach truss cross beam to truss legs
using one 2" hex head cap screw (X) and one nut (Z)
at each end of cross beam. Stand A-configuration
truss on its feet and check cross beam is level.
17
