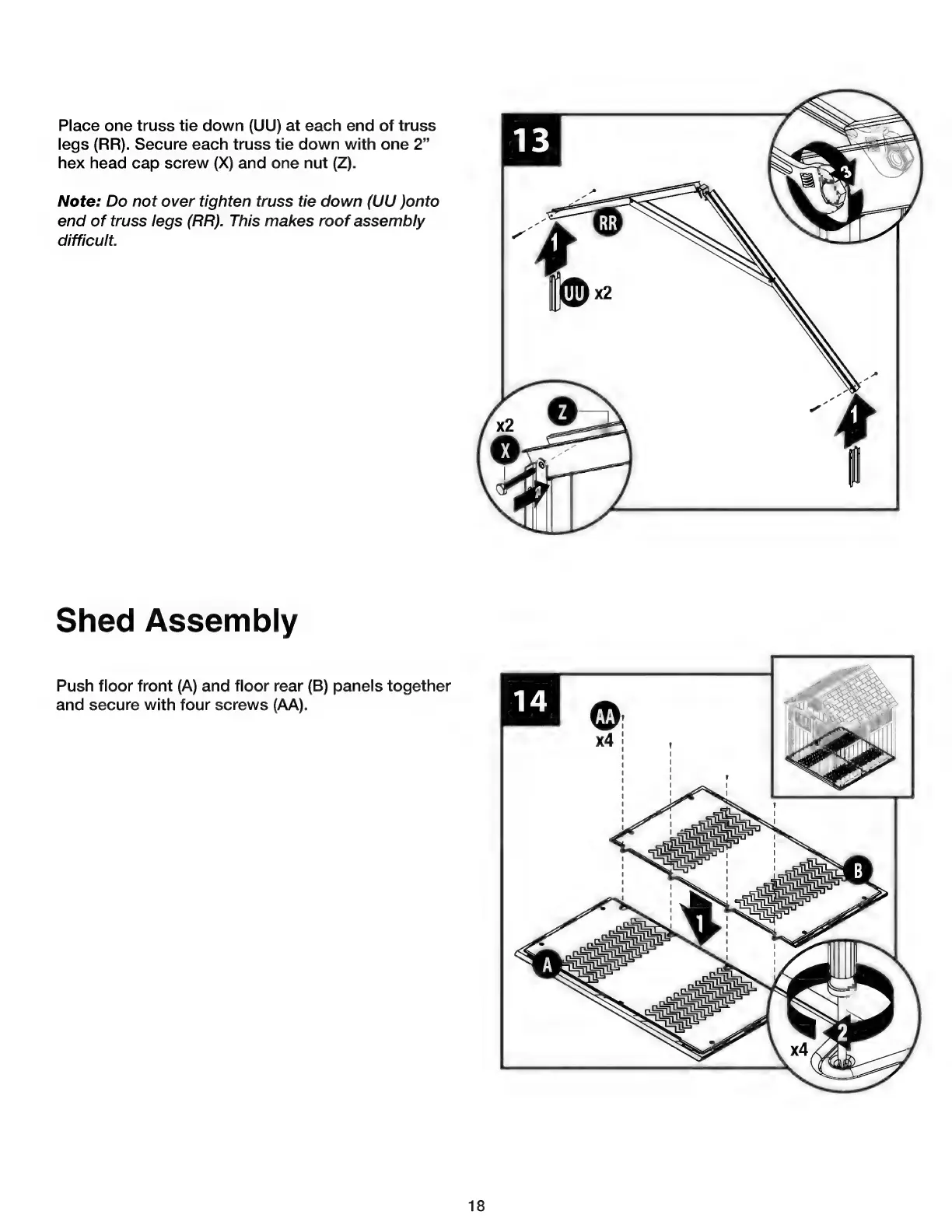

Place one truss tie down (UU) at each end of truss
legs (RR). Secure each truss tie down with one 2”
hex head cap screw (X) and one nut (2).
Note: Do not over tighten truss tie down (UU Jonto
end of truss legs (RR). This makes roof assembly
difficult.
Shed Assembly
Push floor front (A) and floor rear (B) panels together
and secure with four screws (AA).
