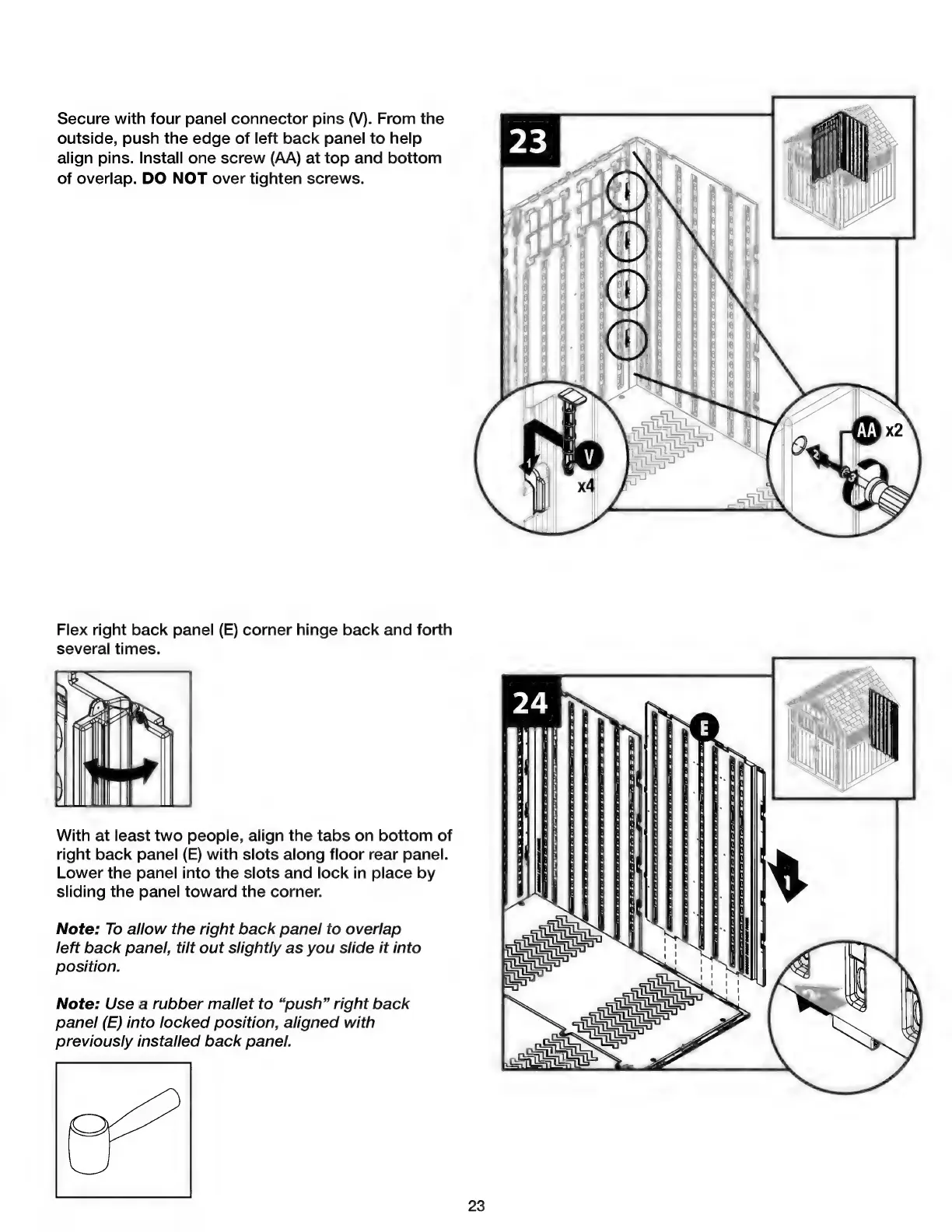

Secure with four panel connector pins (V). From the
outside, push the edge of left back panel to help
align pins. Install one screw (AA) at top and bottom
of overlap. DO NOT over tighten screws.
Flex right back panel (E) corner hinge back and forth
several times.
D; »
=
A
‚ TT (И с
| |
With at least two people, align the tabs on bottom of
right back panel (E) with slots along floor rear panel.
Lower the panel into the slots and lock in place by
sliding the panel toward the corner.
Note: To allow the right back panel to overlap
left back panel, tilt out slightly as you slide it into
position.
Note: Use a rubber mallet to “push” right back
panel (E) into locked position, aligned with
previously installed back panel.
23
