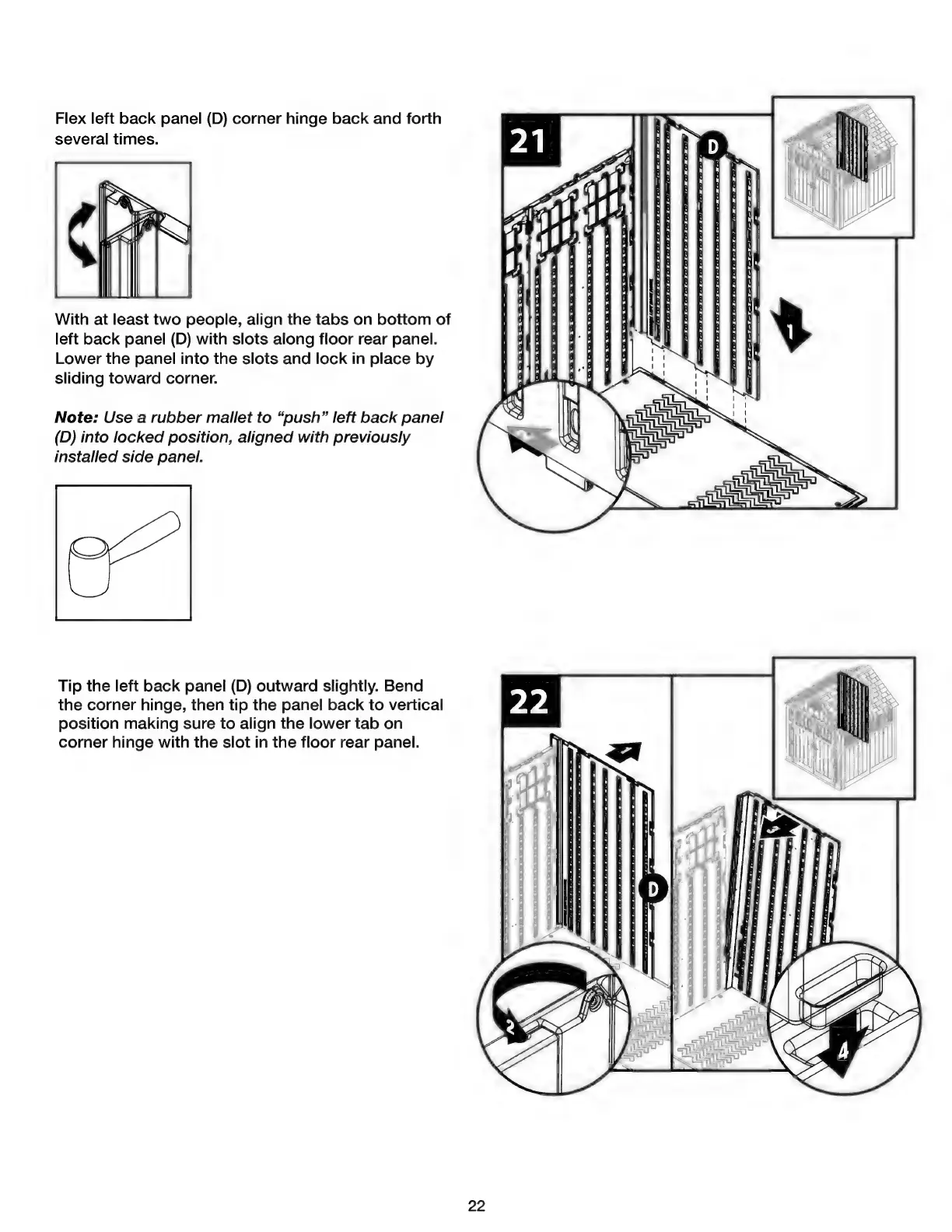

Flex left back panel (D) corner hinge back and forth
several times.
/
NN у,󰾰 کت
LK)
ror!
With at least two people, align the tabs on bottom of
left back panel (D) with slots along floor rear panel.
Lower the panel into the slots and lock in place by
sliding toward corner.
-A--X-- X--X--X--N--X-- X--E--X--X--X--À
——(—XY—Y—Y—2N—Y—Y—.—X—X-—Y—W—X—X—X—7
Note: Use a rubber mallet to “push” left back panel
(D) into locked position, aligned with previously
installed side panel.
CA
LP
LOT À бо об об об об об он об о а _
PR
Tip the left back panel (D) outward slightly. Bend
the corner hinge, then tip the panel back to vertical
position making sure to align the lower tab on
corner hinge with the slot in the floor rear panel.
22
