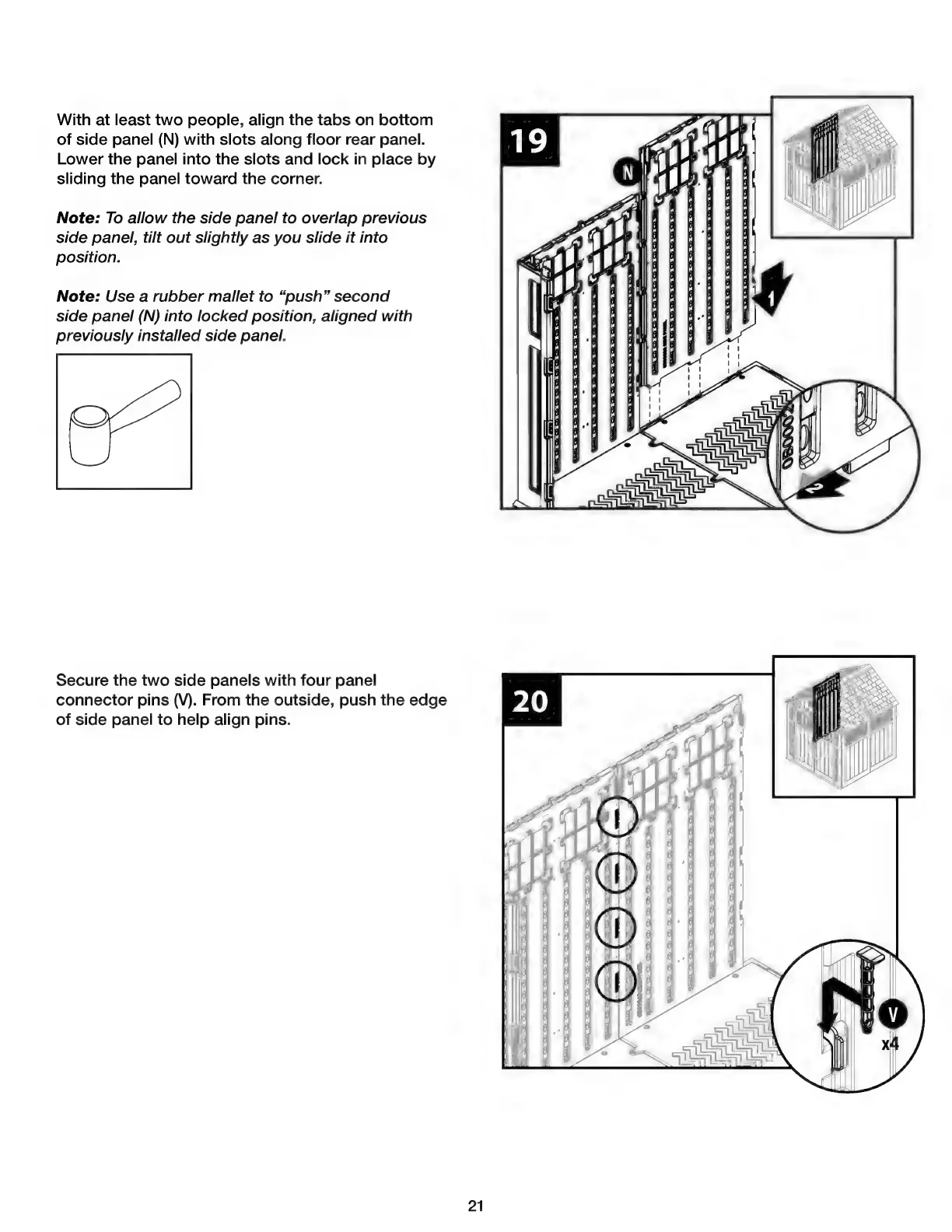

With at least two people, align the tabs on bottom
of side panel (N) with slots along floor rear panel.
Lower the panel into the slots and lock in place by
sliding the panel toward the corner.
Note: To allow the side panel to overlap previous
side panel, tilt out slightly as you slide it into
position.
Note: Use a rubber mallet to “push” second
side panel (N) into locked position, aligned with
previously installed side panel.
Secure the two side panels with four panel
connector pins (V). From the outside, push the edge
of side panel to help align pins.
21
