Suncast BMS7775 - Page 20

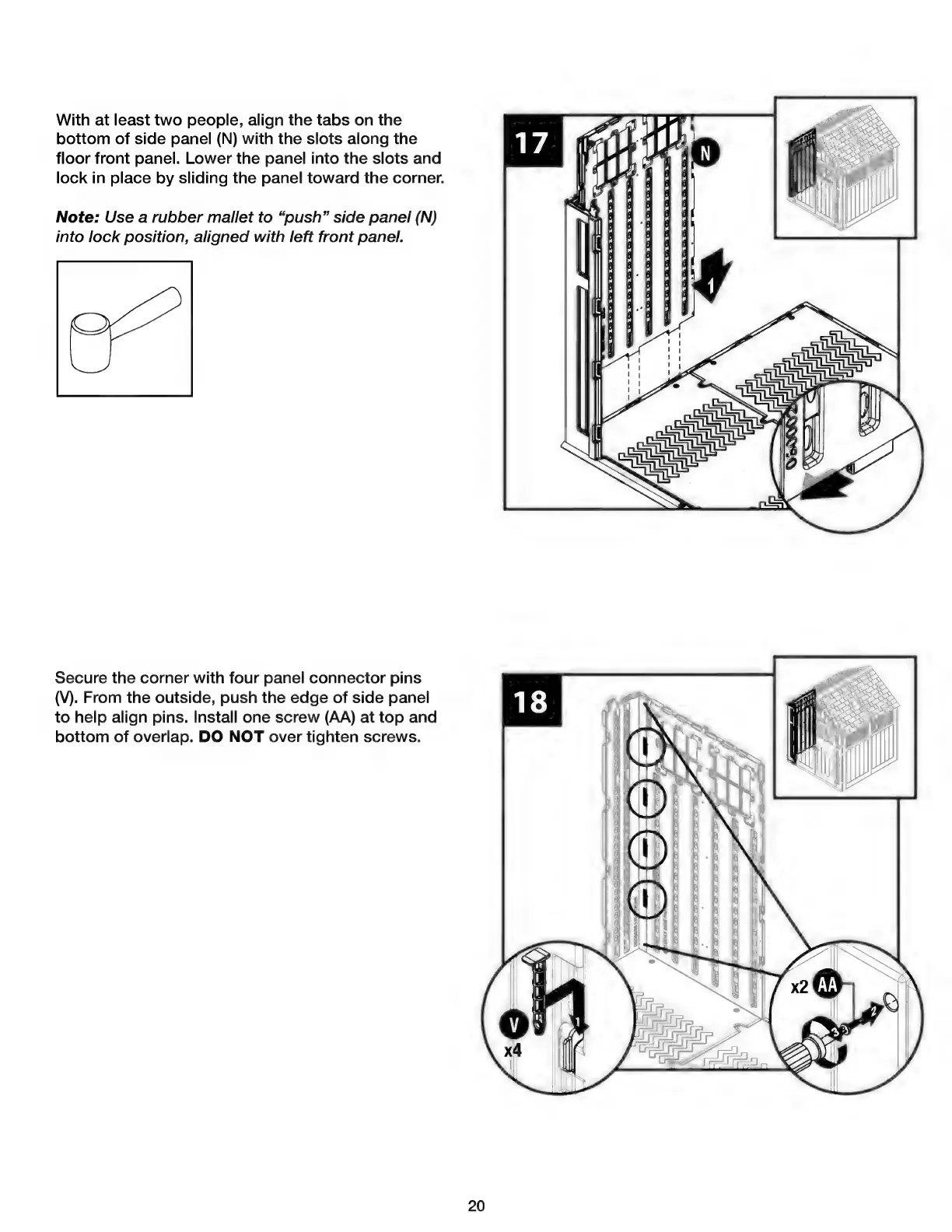

With at least two people, align the tabs on the
bottom of side panel (N) with the slots along the
floor front panel. Lower the panel into the slots and
lock in place by sliding the panel toward the corner.
Note: Use a rubber mallet to “push” side panel (N)
into lock position, aligned with left front panel.
Secure the corner with four panel connector pins
(V). From the outside, push the edge of side panel
to help align pins. Install one screw (AA) at top and
bottom of overlap. DO NOT over tighten screws.
20
