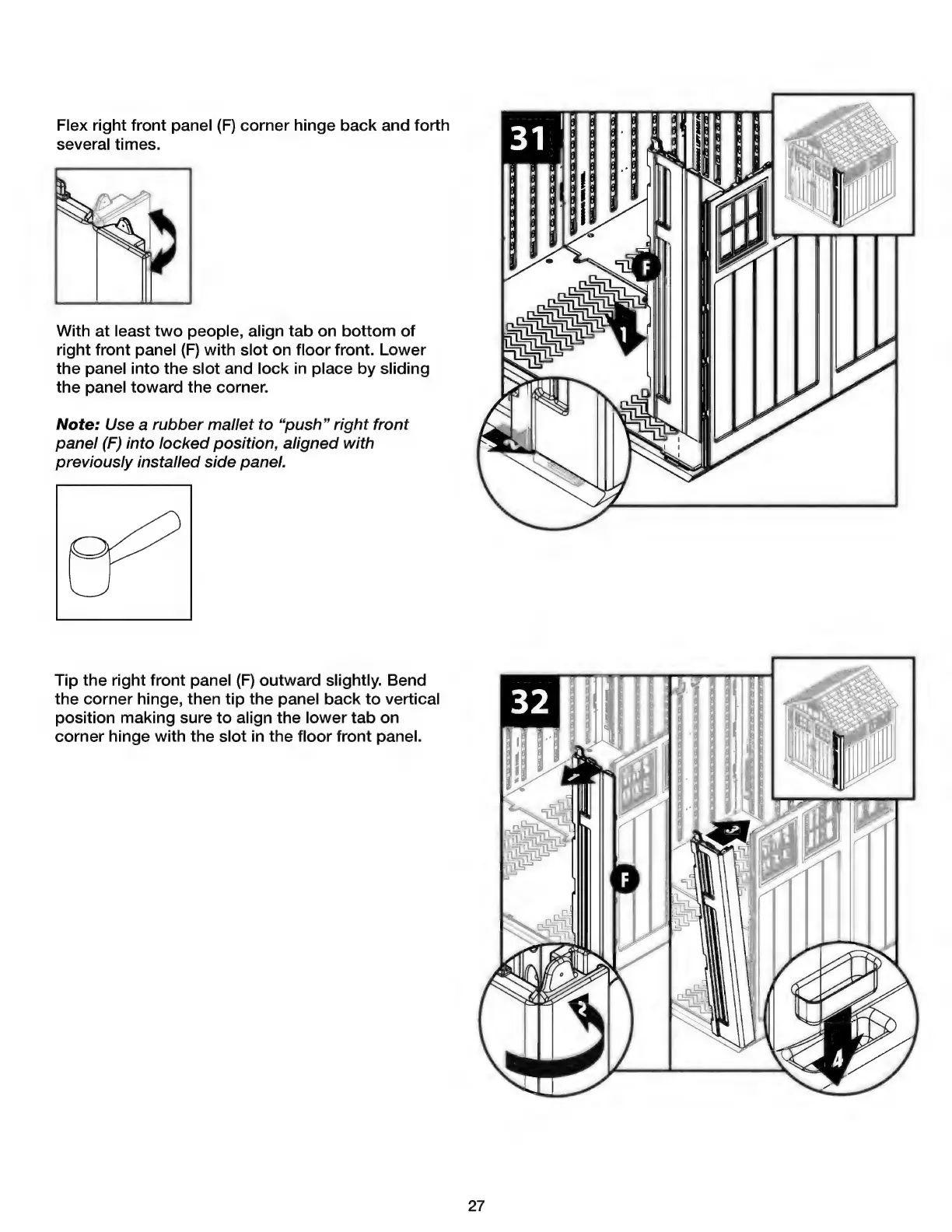

Suncast BMS7775 - Page 27

Flex right front panel (F) corner hinge back and forth
several times.
ер ер ер и-и-и и-и-и
وت󰾯 <> <> <> о <> CD <> 5
With at least two people, align tab on bottom of
right front panel (F) with slot on floor front. Lower
the panel into the slot and lock in place by sliding
the panel toward the corner.
Note: Use a rubber mallet to “push” right front
panel (F) into locked position, aligned with
previously installed side panel.
Tip the right front panel (F) outward slightly. Bend
the corner hinge, then tip the panel back to vertical
position making sure to align the lower tab on
corner hinge with the slot in the floor front panel.
27
