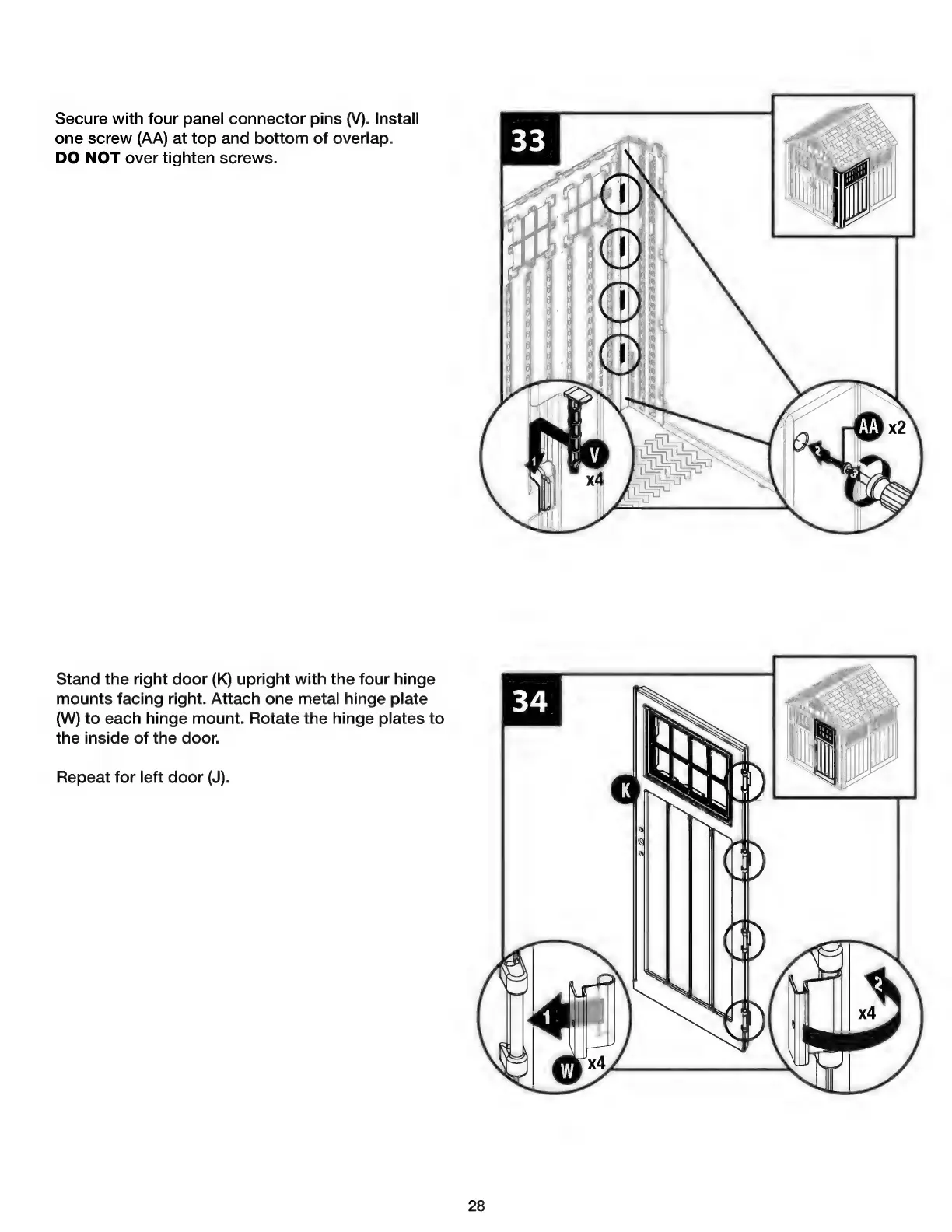

Secure
with
four
panel
connector
pins
(V).
Install
one
screw
(AA)
at
top
and
bottom
of
overlap.
DO
NOT
over
tighten
screws.
Stand
the
right
door
(K)
upright
with
the
four
hinge
mounts
facing
right.
Attach
one
metal
hinge
plate
(W)
to
each
hinge
mount.
Rotate
the
hinge
plates
to
the
inside
of
the
door.
Repeat
for
left
door
(J).
28
