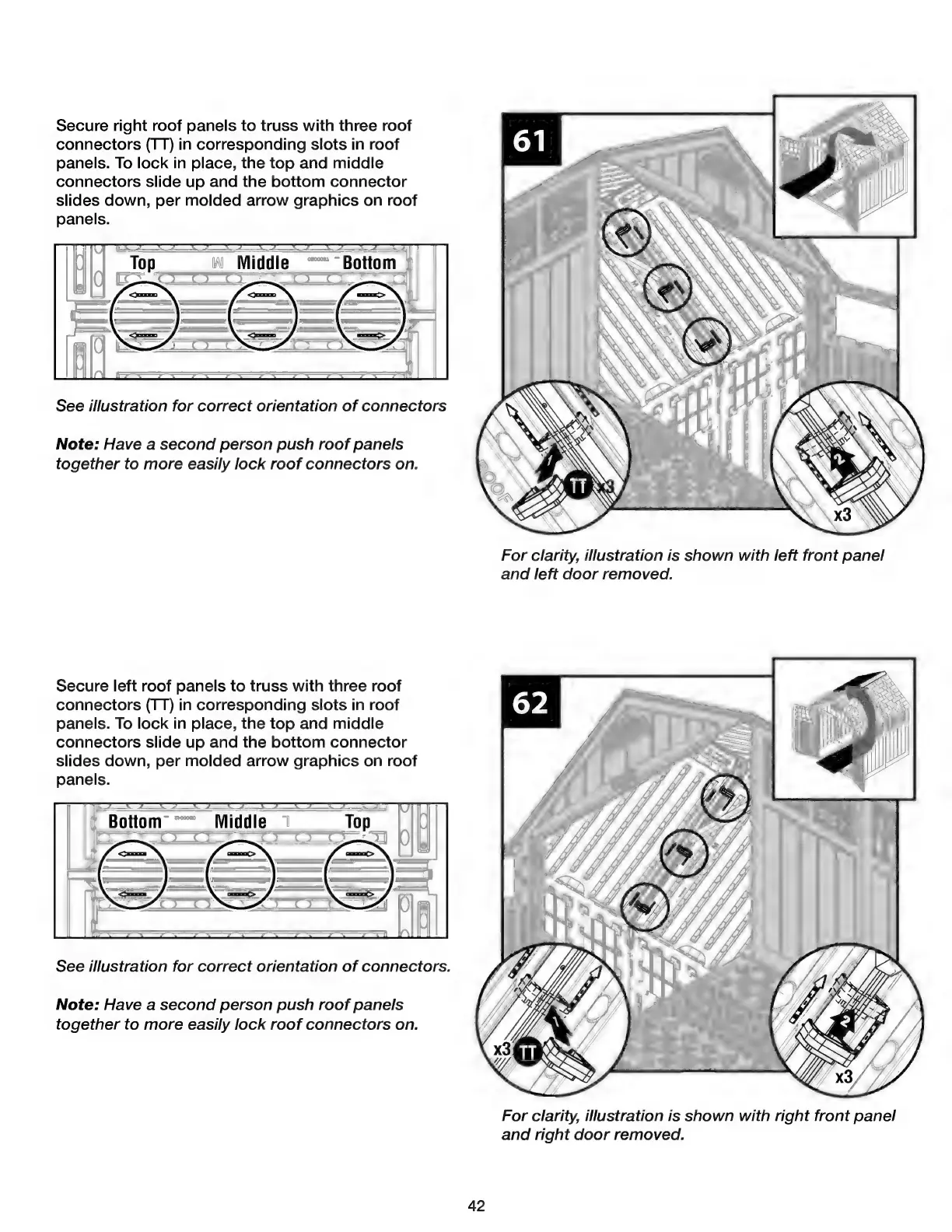

Secure
right
roof
panels
to
truss
with
three
roof
connectors
(TT)
in
corresponding
slots
in
roof
panels.
To
lock
in
place,
the
top
and
middle
connectors
slide
up
and
the
bottom
connector
slides
down,
per
molded
arrow
graphics
on
roof
panels.
See
illustration
for
correct
orientation
of
connectors
Note:
Have
a
second
person
push
roof
panels
together
to
more
easily
lock
roof
connectors
on.
For
clarity,
illustration
is
shown
with
left
front
panel
and
left
door
removed.
Secure
left
roof
panels
to
truss
with
three
roof
connectors
(TT)
in
corresponding
slots
in
roof
panels.
To
lock
in
place,
the
top
and
middle
connectors
slide
up
and
the
bottom
connector
slides
down,
per
molded
arrow
graphics
on
roof
panels.
See
illustration
for
correct
orientation
of
connectors.
Note:
Have
a
second
person
push
roof
panels
together
to
more
easily
lock
roof
connectors
on.
For
clarity,
illustration
is
shown
with
right
front
panel
and
right
door
removed.
