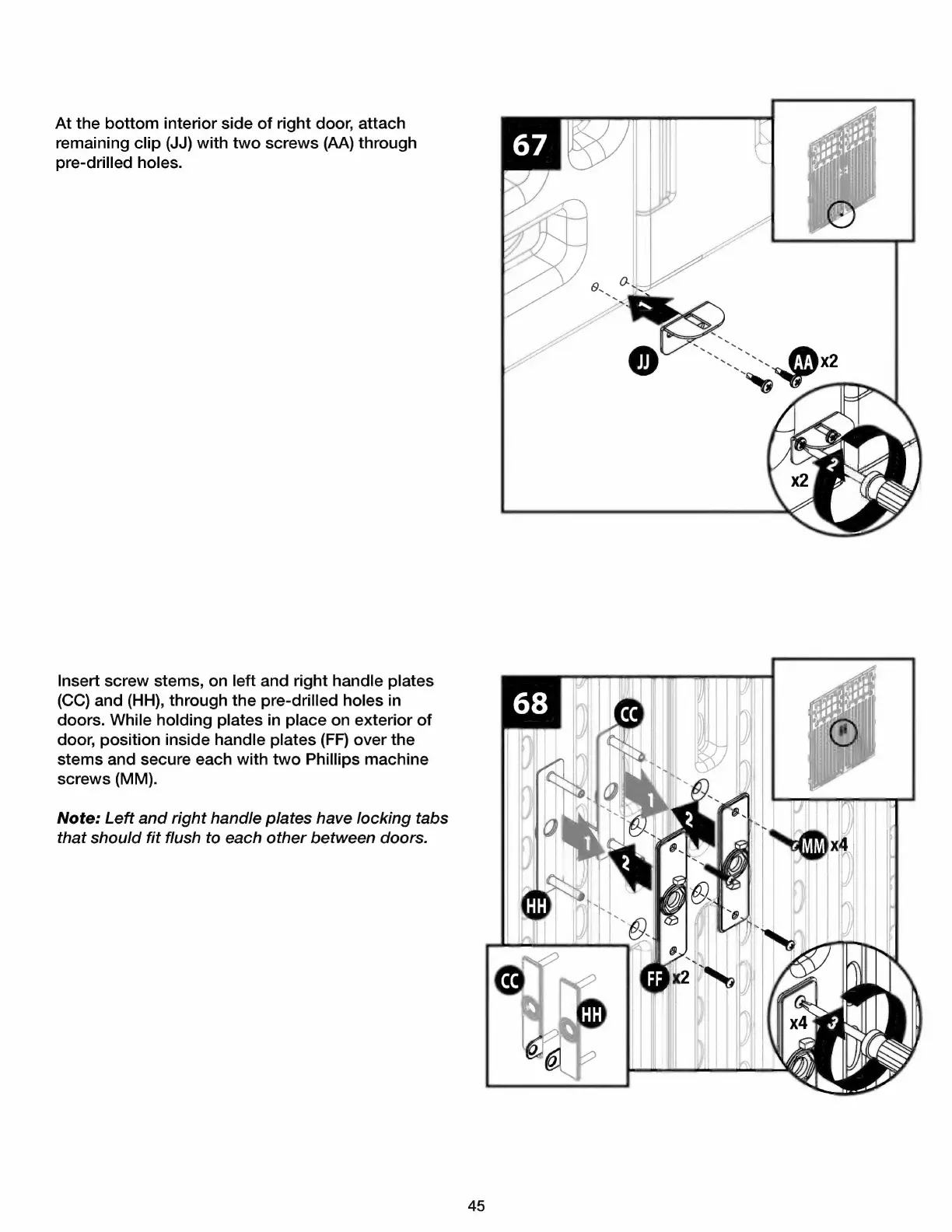

At the bottom interior side of right door, attach
remaining clip (JJ) with two screws (AA) through
pre-drilled holes.
Insert screw stems, on left and right handle plates
(CC) and (HH), through the pre-drilled holes in
doors. While holding plates in place on exterior of
door, position inside handle plates (FF) over the
stems and secure each with two Phillips machine
screws (MM).
Note: Left and right handle plates have locking tabs
that should fit flush to each other between doors.
wi
jw i
AN
7
aa.
©
Bu
45
