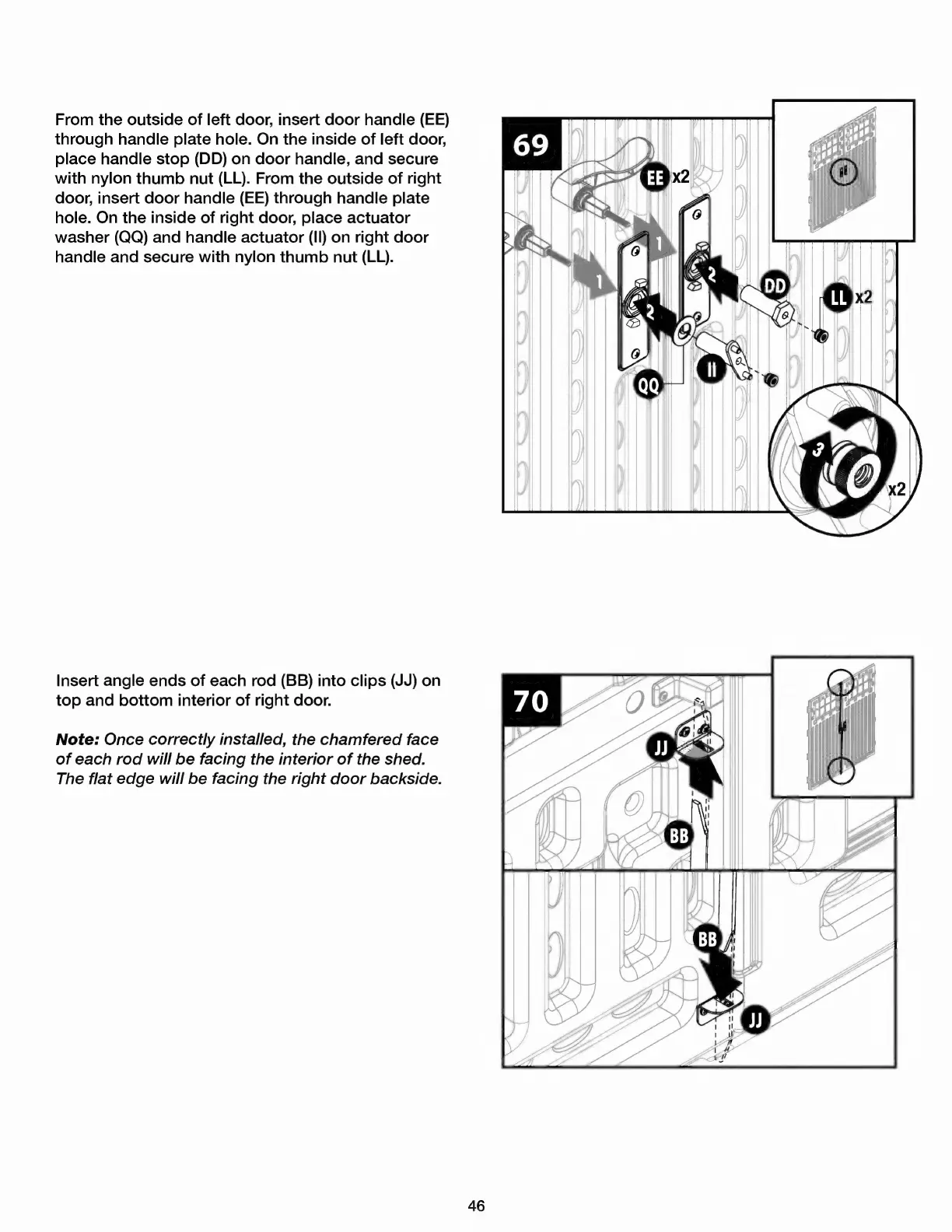

On
the
inside
of
left
door,
place
handle
stop
(DD)
on
door
handle,
and
secure
with
nylon
thumb
nut
(LL).
From
the
outside
of
right
door,
insert
door
handle
(EE)
through
handle
plate
hole.
On
the
inside
of
right
door,
place
actuator
washer
(QQ)
and
handle
actuator
(II)
on
right
door
handle
and
secure
with
nylon
thumb
nut
(LL).
Insert
angle
ends
of
each
rod
(BB)
into
clips
(JJ)
on
top
and
bottom
interior
of
right
door.
Note:
Once
correctly
installed,
the
chamfered
face
of
each
rod
will
be
facing
the
interior
of
the
shed.
The
flat
edge
will
be
facing
the
right
door
backside.
