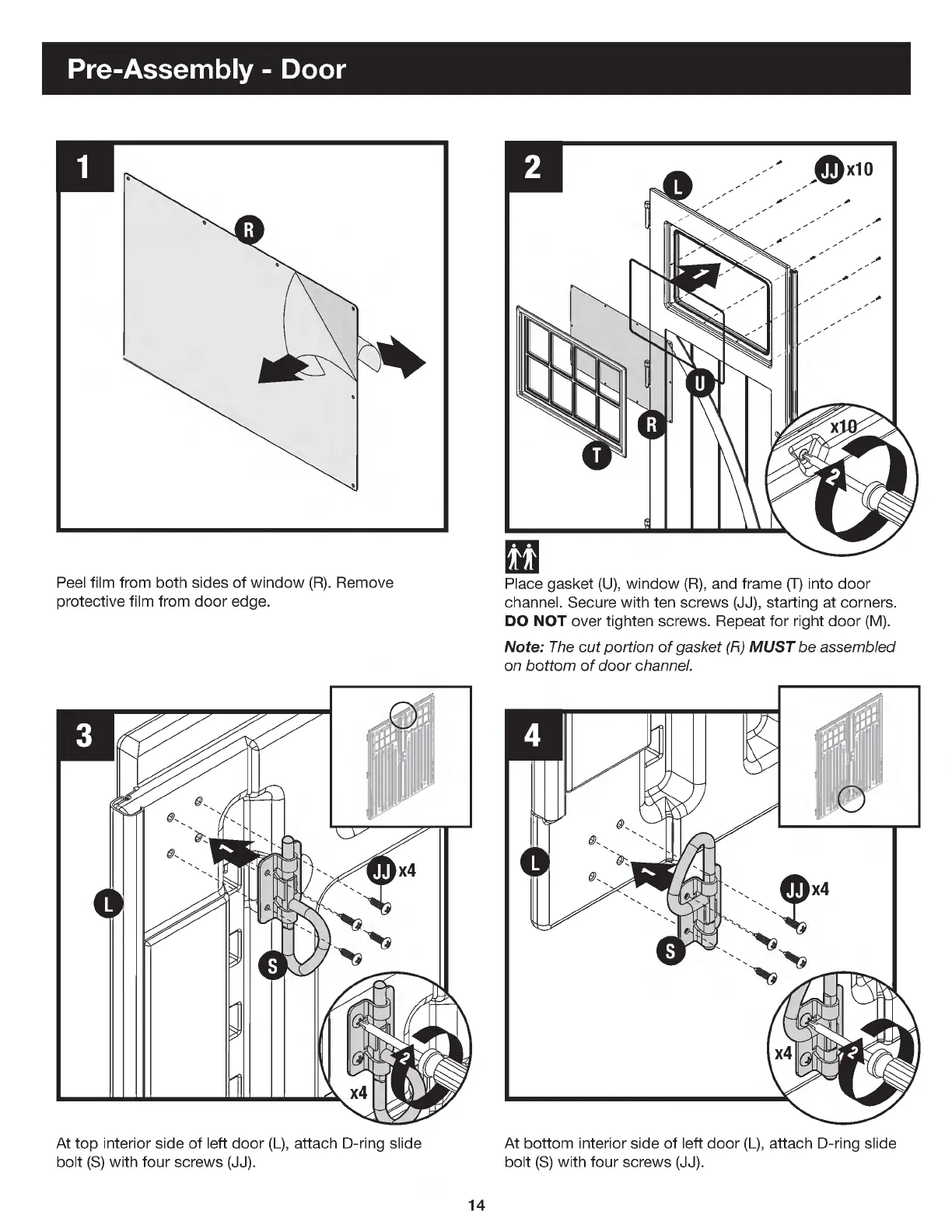

Pre-
Assembly -
Door
Peel
film
from
both
sides
of
window (
R).
Remove
protective
film
from
door
edge.
gi
Place
gasket (
U),
window (
R),
and
frame
(
T)
into
door
channel.
Secure
with
ten
screws (
JJ),
starting
at
corners.
DO
NOT
over
tighten
screws.
Repeat
for
right
door (
M).
Note:
The
cut
portion
of
gasket ()
MUST
be
assembled
on
bottom
of
door
channel.
At
top
interior
side
of
left
door (
L),
attach
D-
ring
slide
bolt (
S)
with
four
screws (
JJ).
At
bottom
interior
side
of
left
door (
L),
attach
D-
ring
slide
bolt (
S)
with
four
screws (
JJ).
