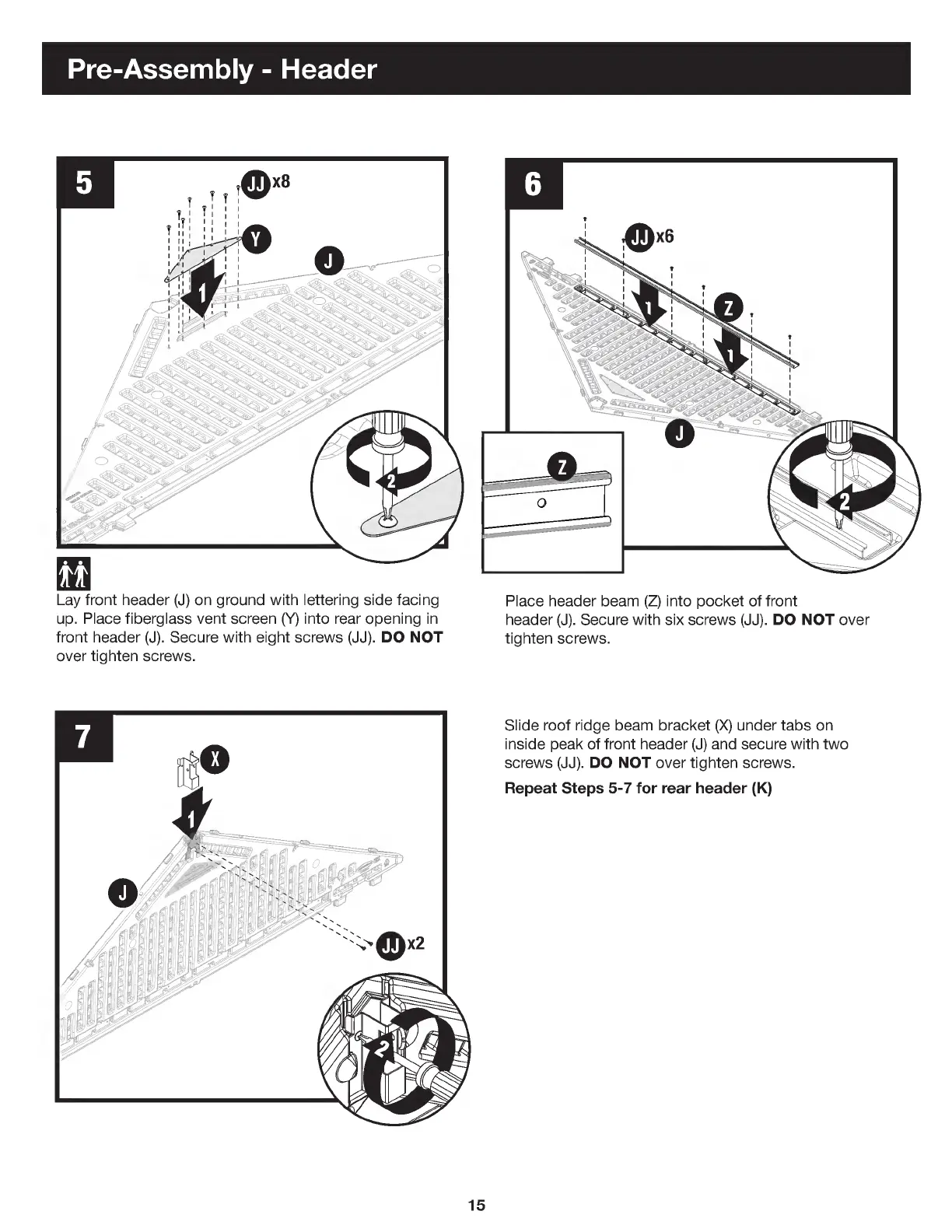

Pre-
Assembly -
Header
5
m
Lay
front
header (
J)
on
ground
with
lettering
side
facing
up.
Place
fiberglass
vent
screen
(
Y)
into
rear
opening
in
front
header (
J).
Secure
with
eight
screws (
JJ).
DO
NOT
over
tighten
screws.
Place
header
beam (
Z)
into
pocket
of
front
header (
J).
Secure
with
six
screws (
JJ).
DO
NOT
over
tighten
screws.
Slide
roof
ridge
beam
bracket (
X)
under
tabs
on
inside
peak
of
front
header (
J)
and
secure
with
two
screws (
JJ).
DO
NOT
over
tighten
screws.
Repeat
Steps
5-7
for
rear
header (
K)
