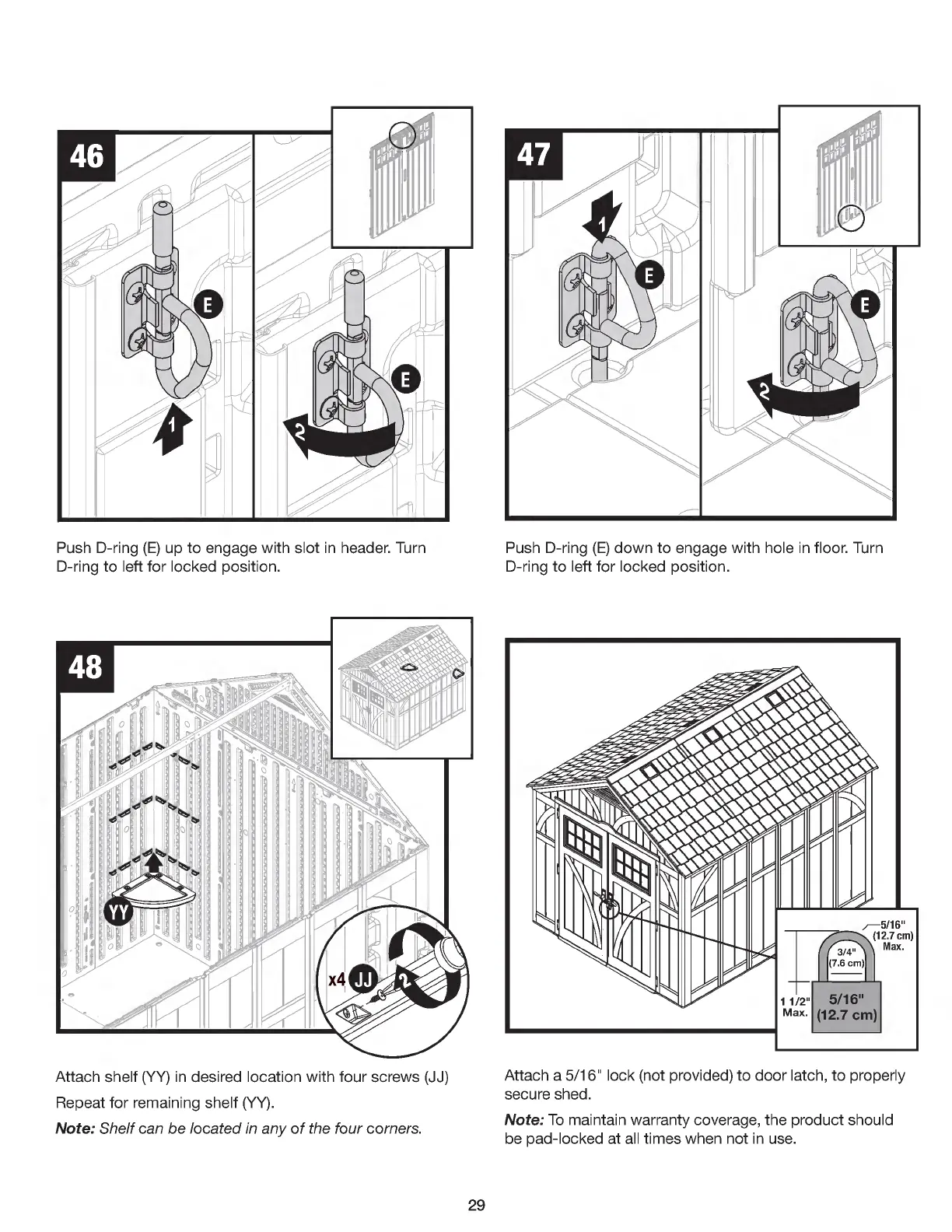

Push
D-
ring (
E)
up
to
engage
with
slot
in
header.
Turn
D-
ring
to
left
for
locked
position.
Attach
shelf (
YY)
in
desired
location
with
four
screws (
JJ)
Repeat
for
remaining
shelf (
YY).
Note:
Shelf
can
be
located
in
any
of
the
four
corners.
Push
D-
ring (
E)
down
to
engage
with hole
in
floor.
Turn
D-
ring
to
left
for
locked
position.
/-5116"
(12.7
cm)
Max.
Attach
a
5/16"
lock (
not
provided)
to
door
latch,
to
properly
secure
shed.
Note:
To
maintain
warranty
coverage,
the
product
should
be
pad-
locked
at
all
times
when
not
in
use.
29
