Suncast BMS8125 - Shed Assembly Steps; Door Pre-Assembly Process

13

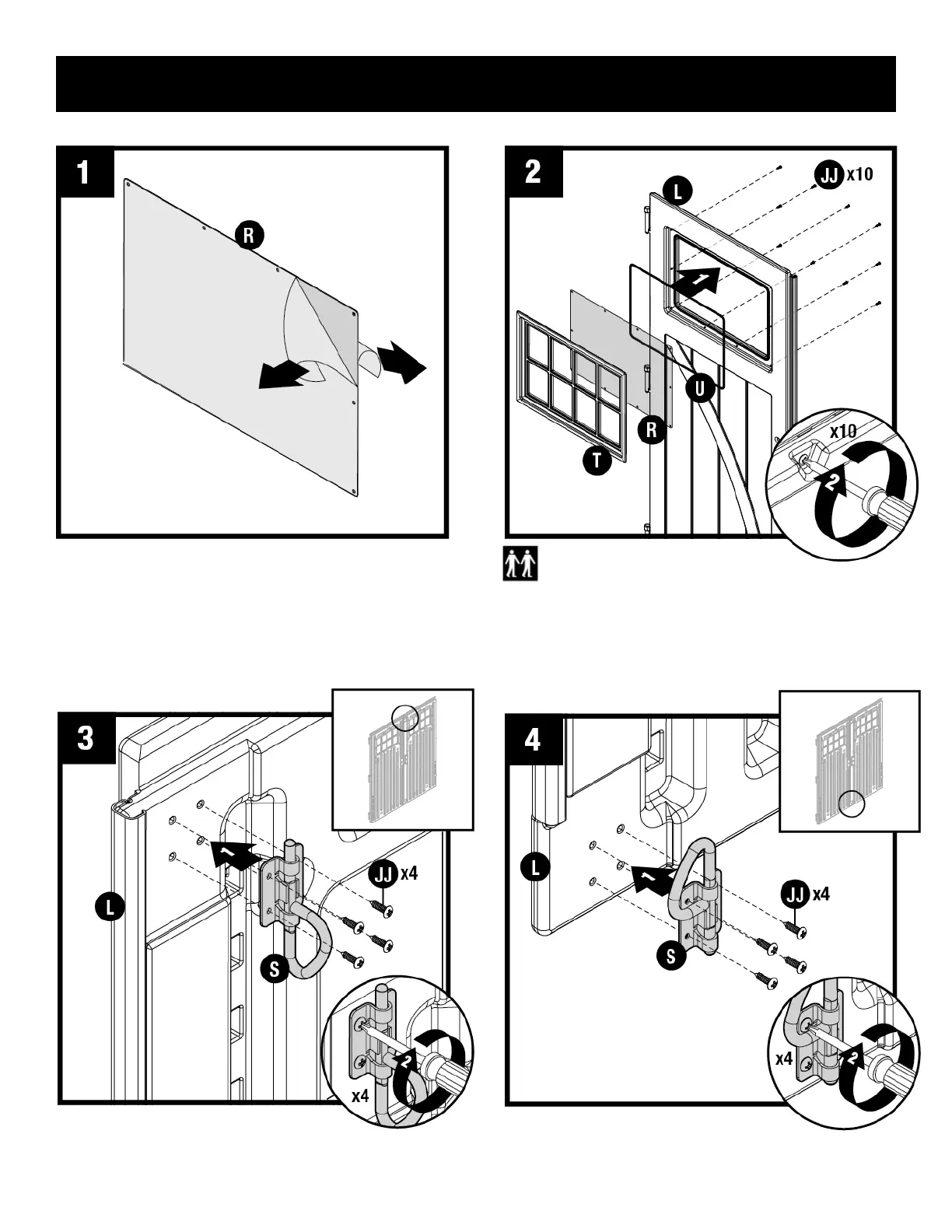

Place gasket (U), window (R), and frame (T) into door
channel. Secure with ten screws (JJ), starting at corners.
DO NOT over tighten screws. Repeat for right door (M).
Note: The cut portion of gasket (R) MUST be assembled
on bottom of door channel.
Peel lm from both sides of window (R). Remove
protective lm from door edge.
Door Pre-Assembly
At bottom interior side of left door (L), attach D-ring slide
bolt (S) with four screws (JJ).
At top interior side of left door (L), attach D-ring slide
bolt (S) with four screws (JJ).
