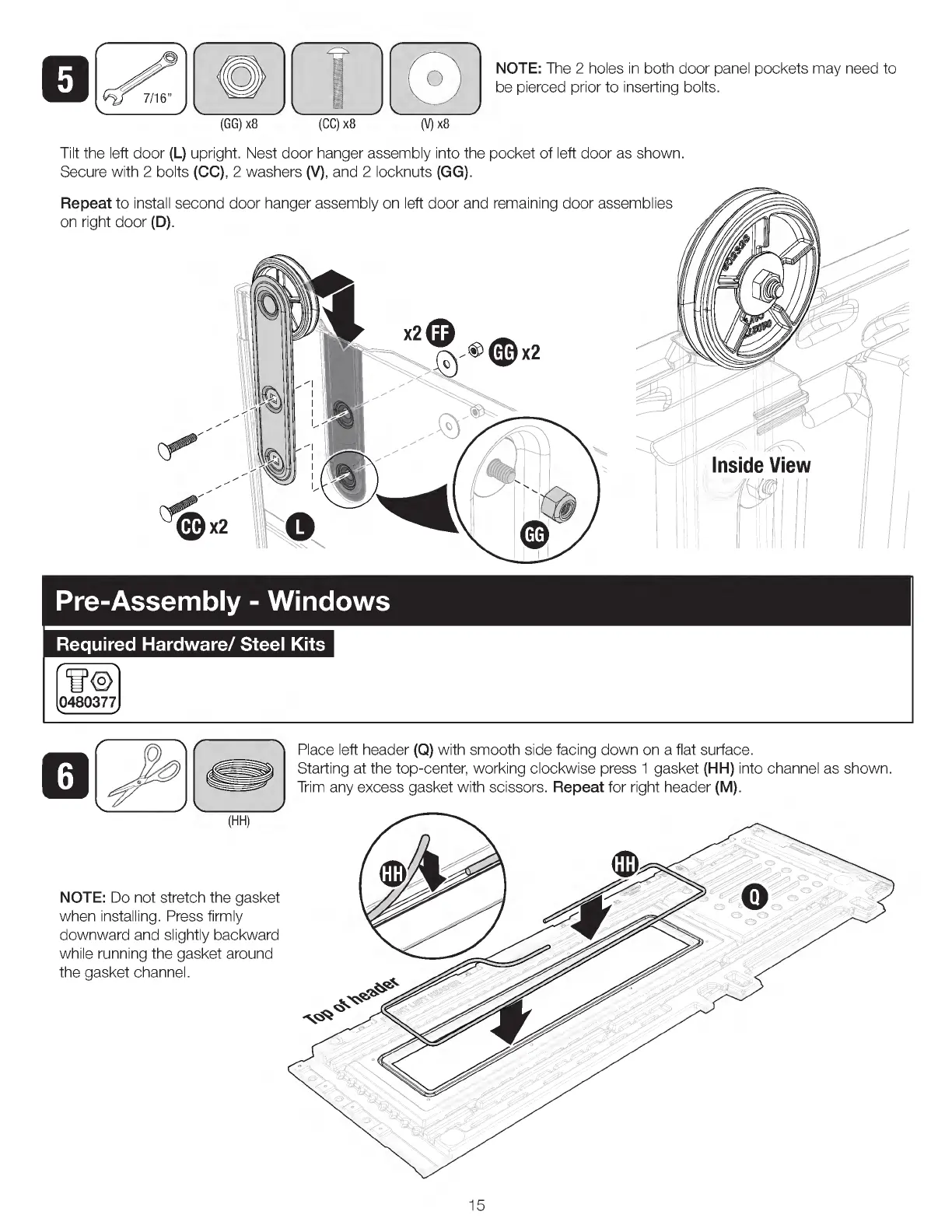

Suncast BMS8780T - Window and Header Assembly

(HH)
o
7/16"
(GG) x8 (CC) x8 (V) x8
NOTE: The 2 holes in both door panel pockets may need to
be pierced prior to inserting bolts.
Tilt the left door ( L) upright. Nest door hanger assembly into the pocket of left door as shown.
Secure with 2 bolts ( CC), 2 washers ( V), and 2 locknuts ( GG).
Repeat to install second door hanger assembly on left door and remaining door assemblies
on right door ( D).
Pre- Assembly - Windows
Required Hardware/ Steel Kits
0480377
j
Place left header ( Q) with smooth side facing down on a flat surface.
Starting at the top- center, working clockwise press 1 gasket ( HH) into channel as shown.
Trim any excess gasket with scissors. Repeat for right header ( M).
NOTE: Do not stretch the gasket
when installing. Press firmly
downward and slightly backward
while running the gasket around
the gasket channel.
15
