(V) x2
IL
(YY) x1 ( X) x1
(FF) x1 ( AA) x1

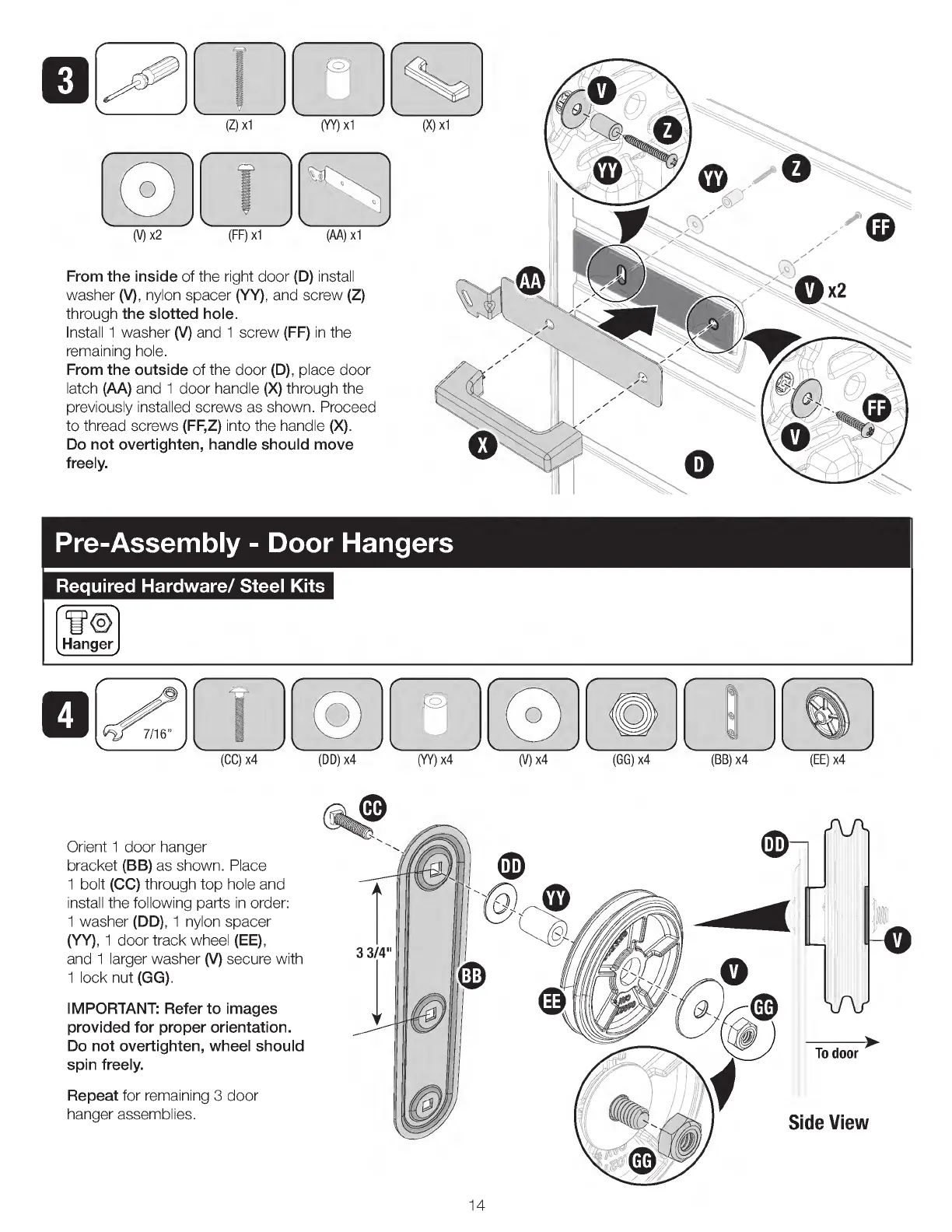

From the inside of the right door ( D) install
washer ( V), nylon spacer ( YY), and screw ( Z)
through the slotted hole.
Install 1 washer ( V) and 1 screw ( FF) in the
remaining hole.
From the outside of the door ( D), place door
latch ( AA) and 1 door handle ( X) through the
previously installed screws as shown. Proceed
to thread screws ( FF,Z) into the handle ( X).
Do not overtighten, handle should move
freely.
Pre- Assembly - Door Hangers
Required Hardware/ Steel Kits
Hanger
7/16"
(CC) x4
Orient 1 door hanger
bracket ( BB) as shown. Place
1 bolt ( CC) through top hole and
install the following parts in order:
1 washer ( DD), 1 nylon spacer
(YY), 1 door track wheel ( EE),
and 1 larger washer ( V) secure with
1 lock nut ( GG).
IMPORTANT: Refer to images
provided for proper orientation.
Do not overtighten, wheel should
spin freely.
Repeat for remaining 3 door
hanger assemblies.
(DD) x4 (V) x4 (GG) x4 (BB) x4 (EE) x4
To door
Side View
14
