Top of header
(S) x12
Top of header

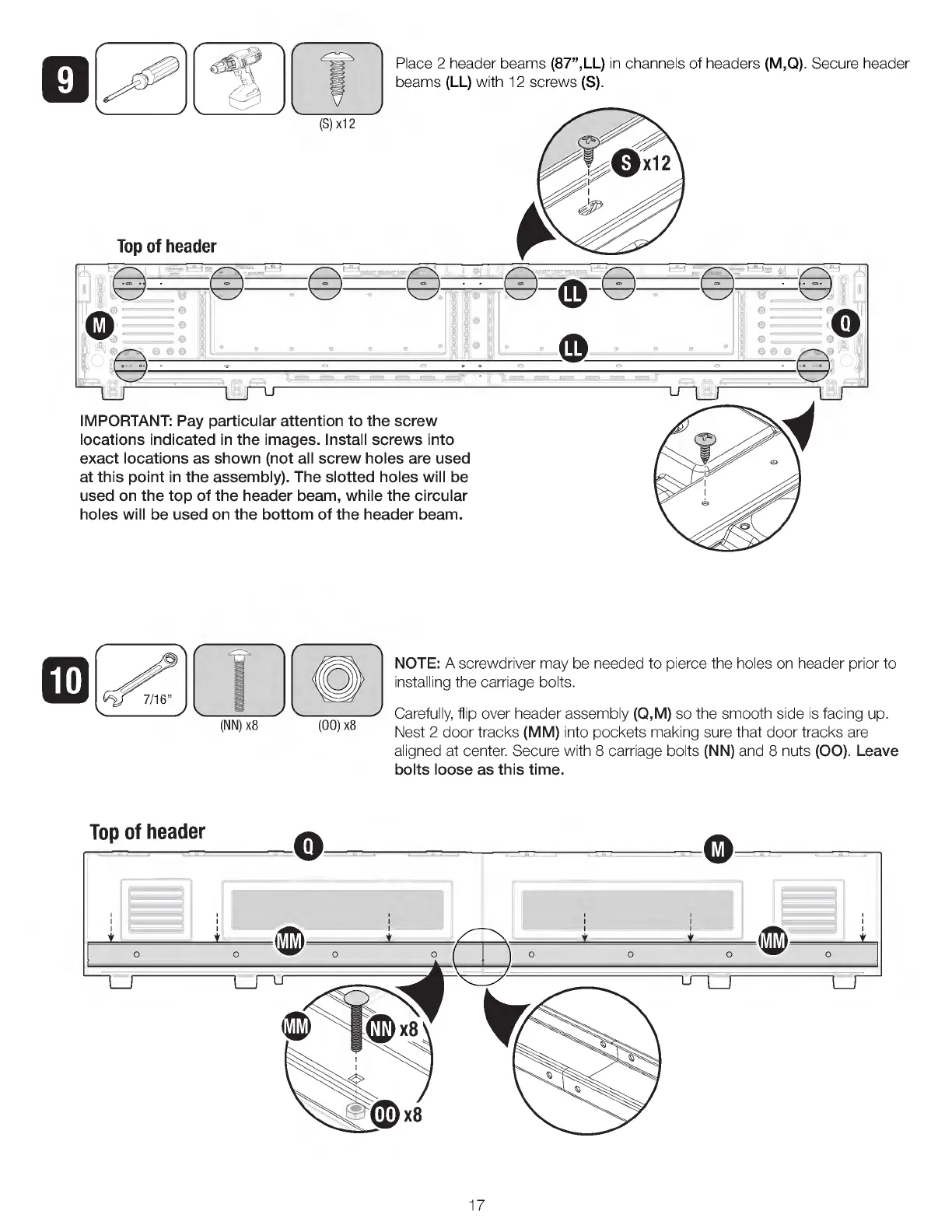

Place 2 header beams ( 87",LL) in channels of headers ( M,Q). Secure header
beams ( LL) with 12 screws ( S).
MIL I
e e e
IMPORTANT: Pay particular attention to the screw
locations indicated in the images. Install screws into
exact locations as shown ( not all screw holes are used
at this point in the assembly). The slotted holes will be
used on the top of the header beam, while the circular
holes will be used on the bottom of the header beam.
NOTE: A screwdriver may be needed to pierce the holes on header prior to
installing the carriage bolts.
Carefully, flip over header assembly ( Q,M) so the smooth side is facing up.
Nest 2 door tracks ( MM) into pockets making sure that door tracks are
aligned at center. Secure with 8 carriage bolts ( NN) and 8 nuts ( 00). Leave
bolts loose as this time.
17
