Suncast BMS8780T - Side Adapters and Gutter Installation

Pre- Assembly - Side Adapter
Required Hardware/ Steel Kits
C a()
0480377
(S) x2
Top of header
(S) x4
Top of header

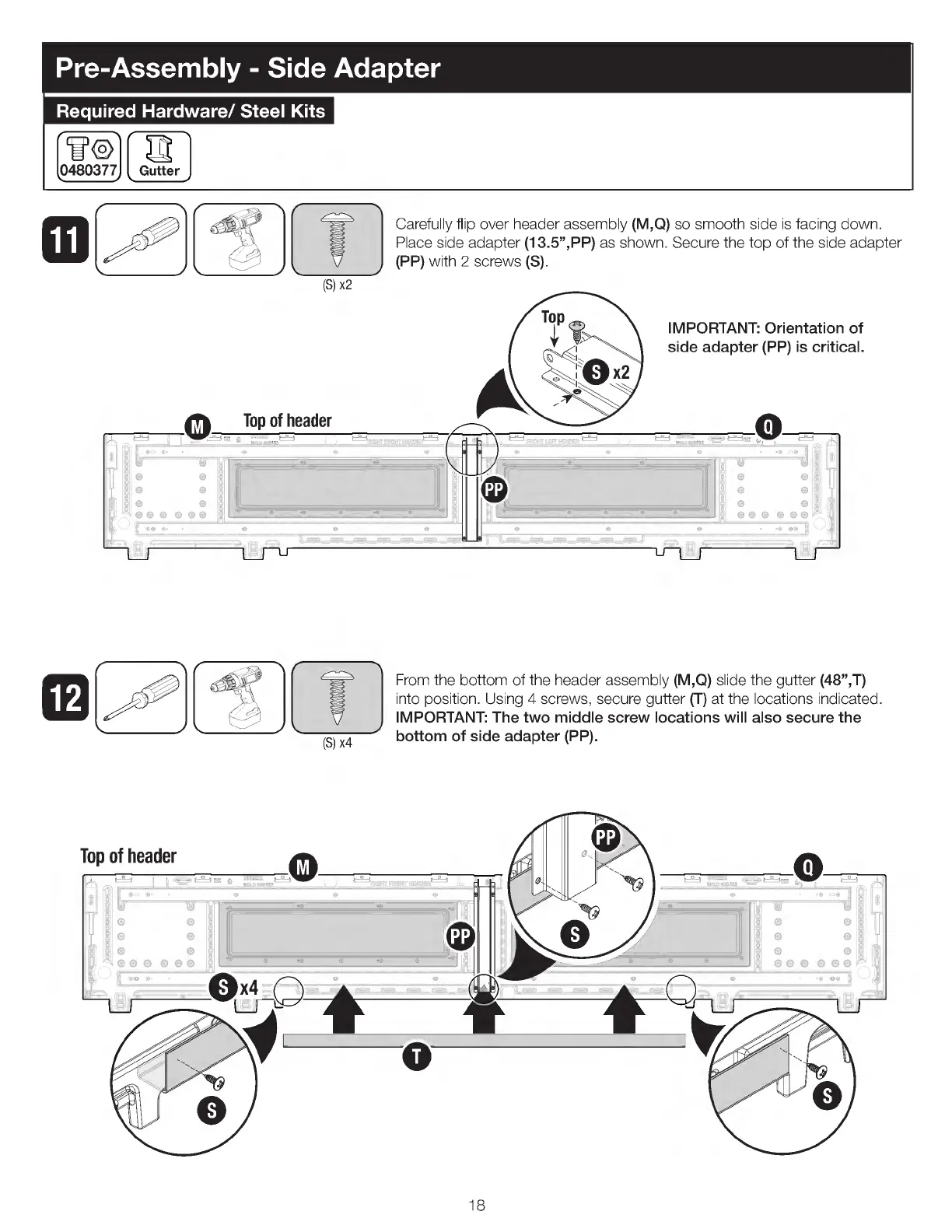

Carefully flip over header assembly ( M,Q) so smooth side is facing down.
Place side adapter ( 13.5",PP) as shown. Secure the top of the side adapter
(PP) with 2 screws ( S).
IMPORTANT: Orientation of
side adapter ( PP) is critical.
From the bottom of the header assembly ( M,Q) slide the gutter ( 48",T)
into position. Using 4 screws, secure gutter ( T) at the locations indicated.
IMPORTANT: The two middle screw locations will also secure the
bottom of side adapter ( PP).
