Suncast BMS8780T - Assembly - Walls and Floor; Floor Assembly

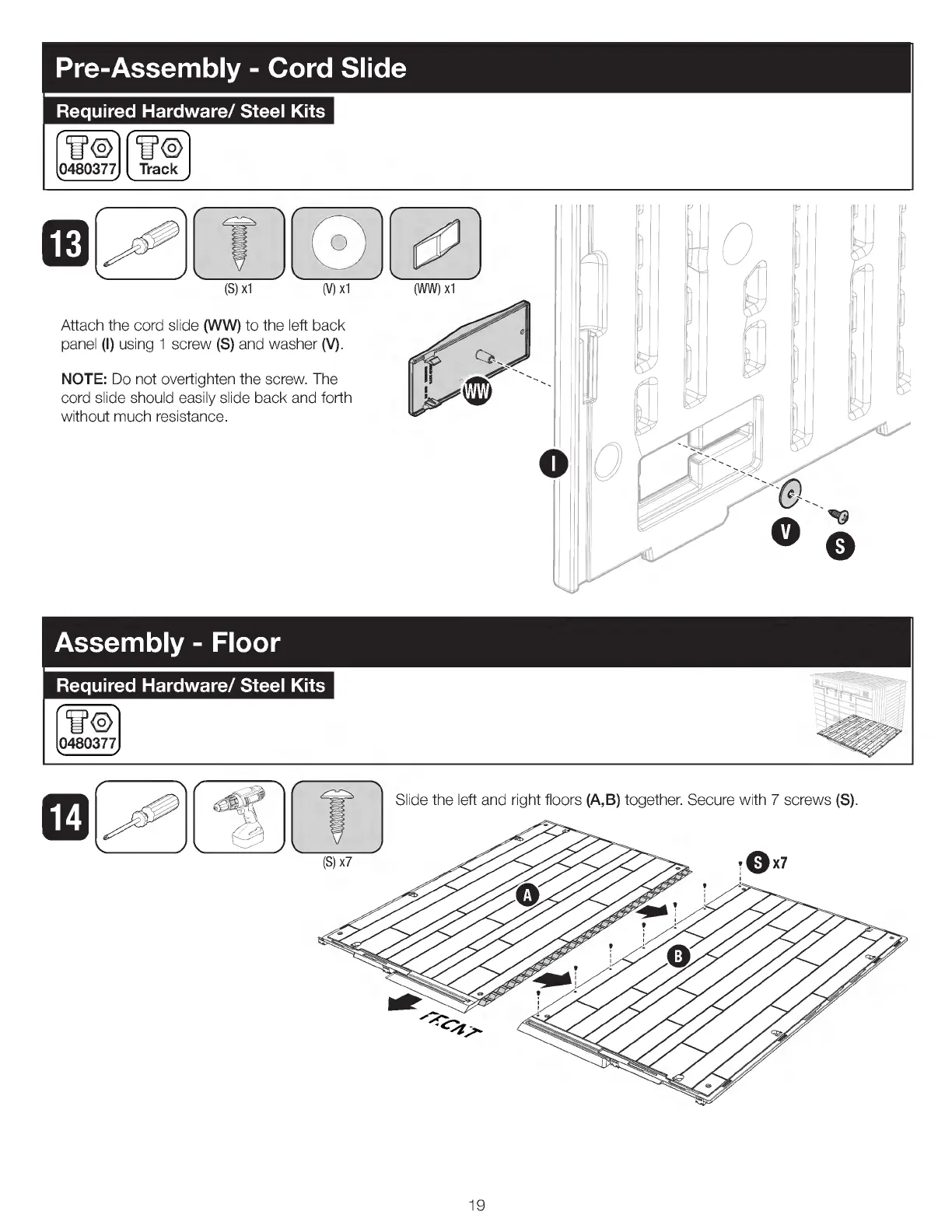

Pre- Assembly - Cord Slide
Required Hardware/ Steel Kits
W C)
0480377
c gC)
Track
co
°NW) xl
Attach the cord slide ( WW) to the left back
panel ( I) using 1 screw ( S) and washer ( V).
NOTE: Do not overtighten the screw. The
cord slide should easily slide back and forth
without much resistance.
Slide the left and right floors ( A,B) together. Secure with 7 screws ( S).
(S) x7
19
