Suncast BMS8780T - Assembly - Roof Structure; Ridge Beam and Truss Installation

(GG) x2
(S) x6 (W) x3
o

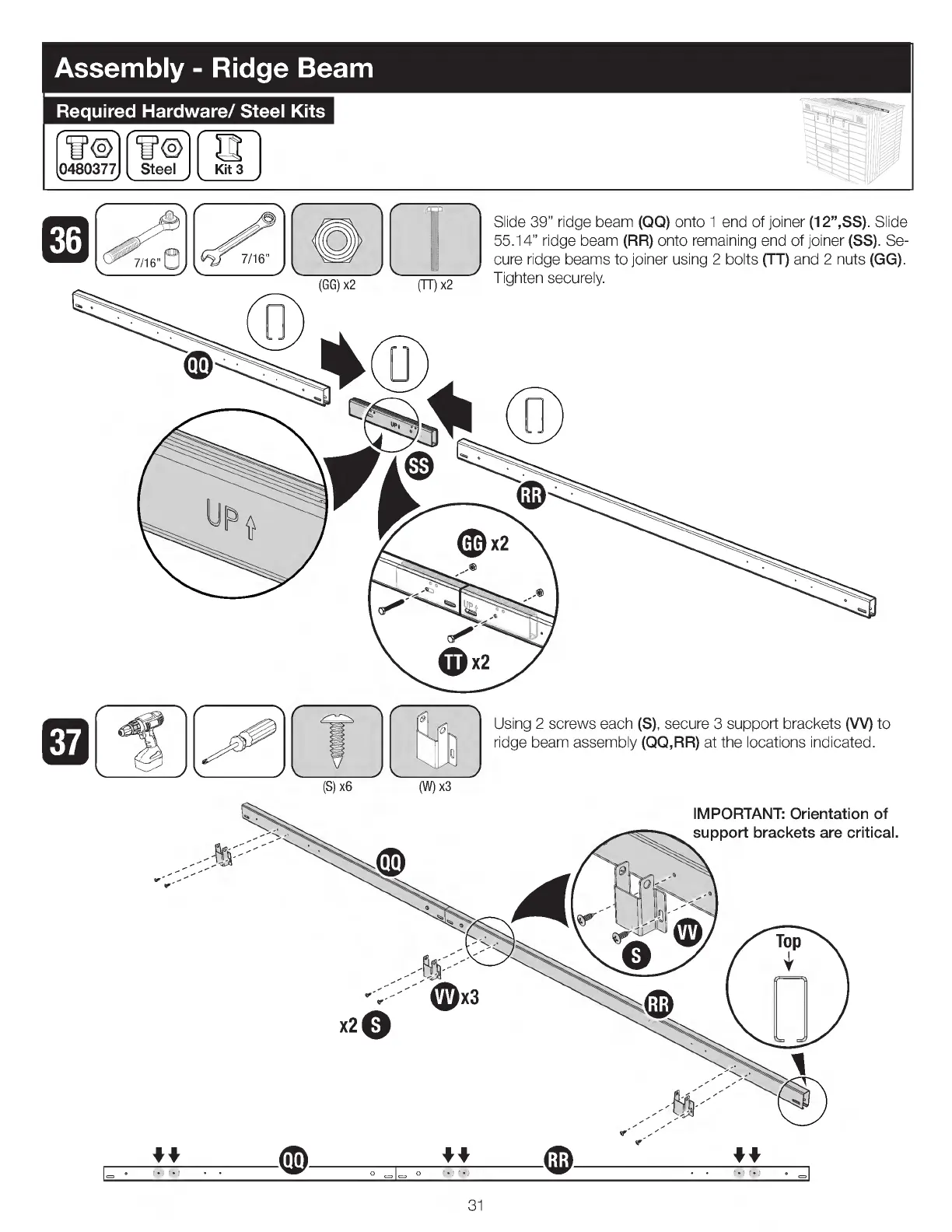

çI cure ridge beams to joiner using 2 bolts ( TT) and 2 nuts ( GG).
Slide 39" ridge beam ( QQ) onto 1 end of joiner ( 12",SS). Slide
55.14" ridge beam ( RR) onto remaining end of joiner ( SS). Se-
(TT) x2 Tighten securely.
4-1
Using 2 screws each ( S), secure 3 support brackets ( VV) to
ridge beam assembly ( QQ,RR) at the locations indicated.
e,
IMPORTANT: Orientation of
support brackets are critical.
31
